Sleepout Steel Frame Kitset 3.0m x 6.0m A (18sqm)
Sleepout steel frame kitset 3.0m x 6.0m (18m²) — wall frames and roof frames with a 2400mm wide door opening and a 5.9° mono-pitch roof, designed up to High wind zone.
Delivery Type : Bundle Pack or Pre Assembled Frames
The Sleepout Steel Frame Kitset 3.0m x 6.0m A is an 18m² steel framing kit for a detached sleepout, home office or studio. Wall frames and roof frames are supplied, with a 2400mm wide door opening built into the south wall and a single-slope (mono-pitch) 5.9° roof; cladding and roofing are available separately.

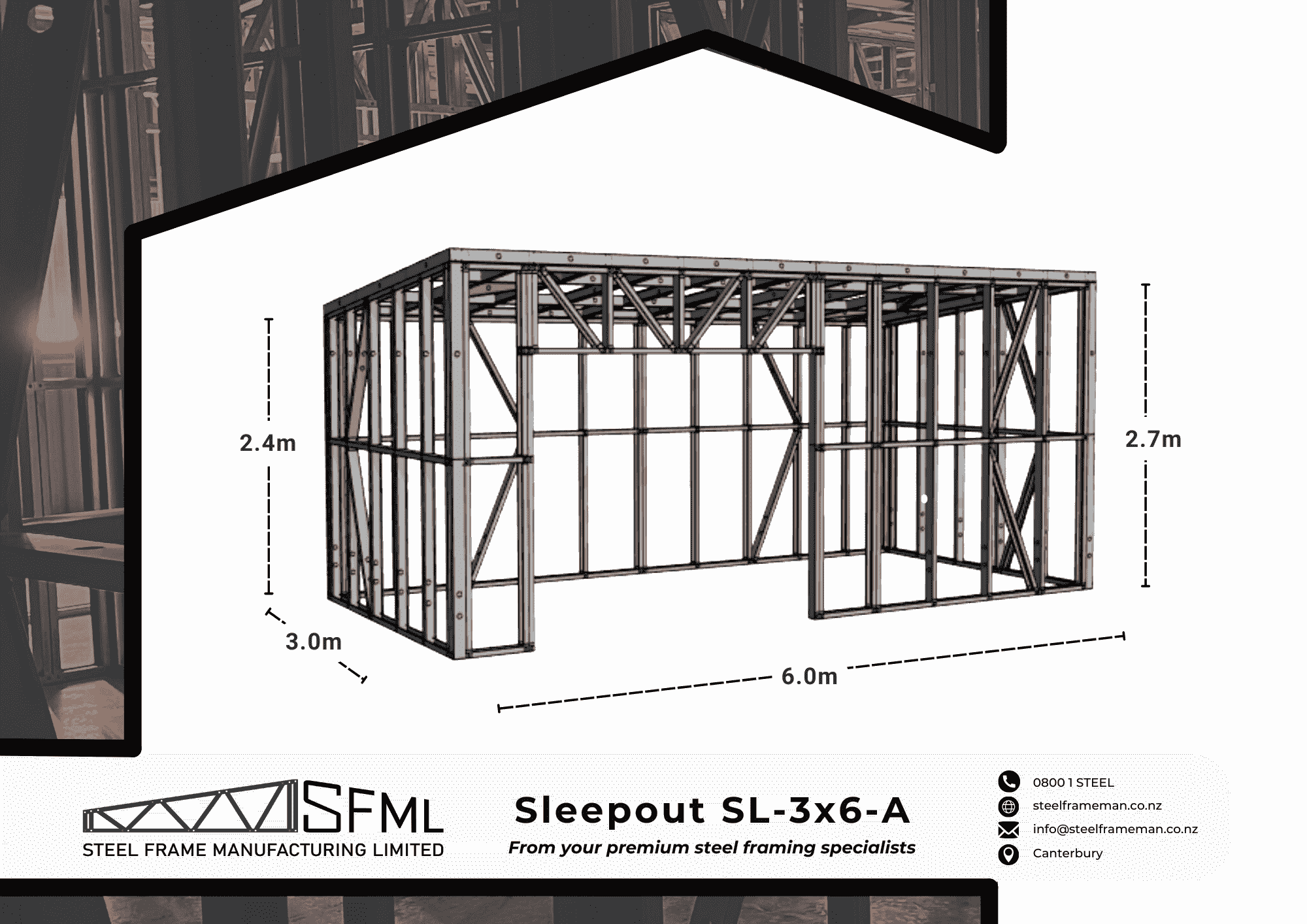

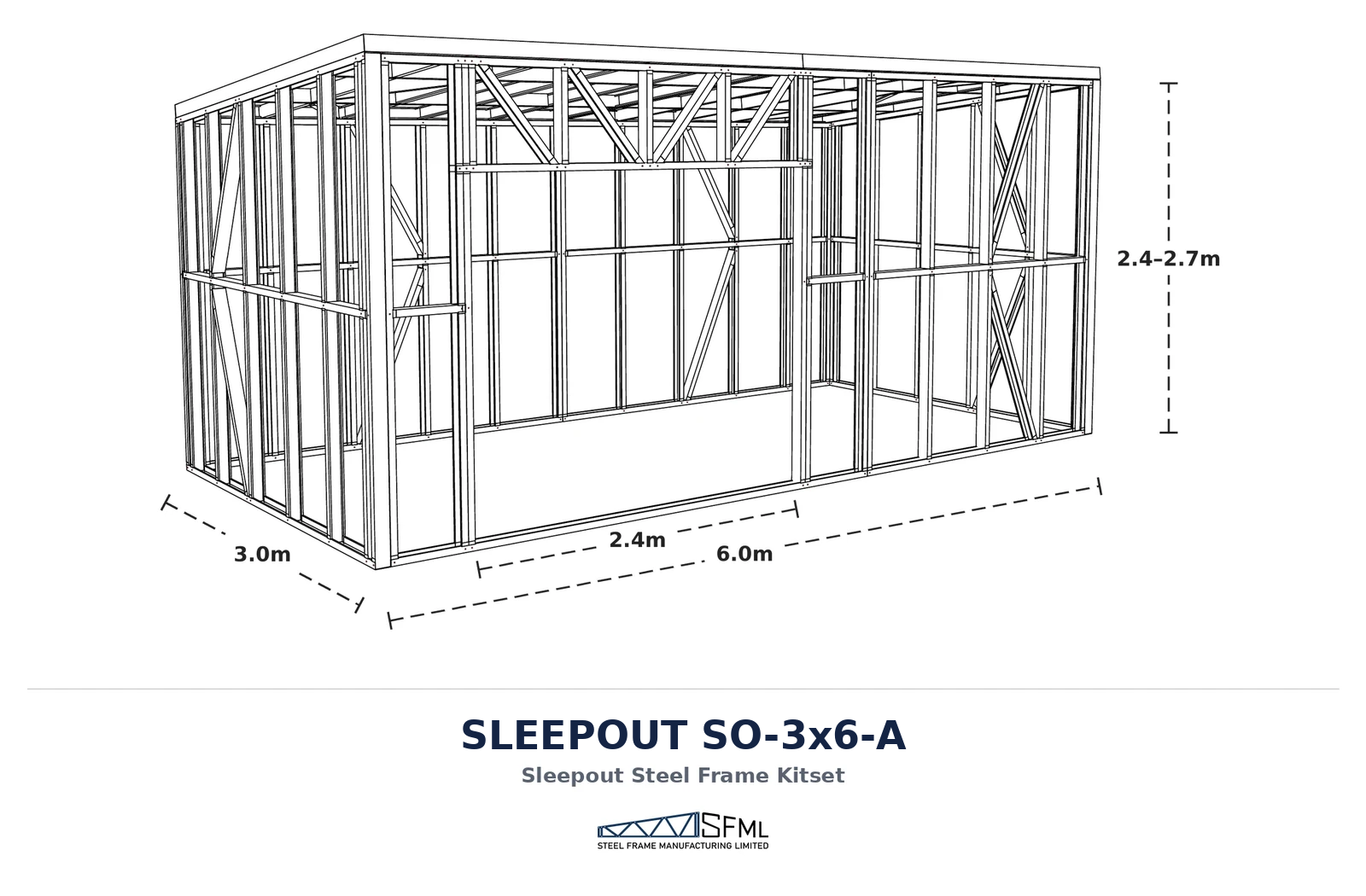

At a glance: The SO-3×6-A sleepout steel frame kitset measures 3.0m x 6.0m (18m²) with stud heights from 2420mm to 2720mm. The SO-3×6-A has one 2400mm wide x 2100mm high door frame opening in the long south wall. It is designed for wind zones up to High and snow below 1kPa, under a 5.9° mono-pitch roof.

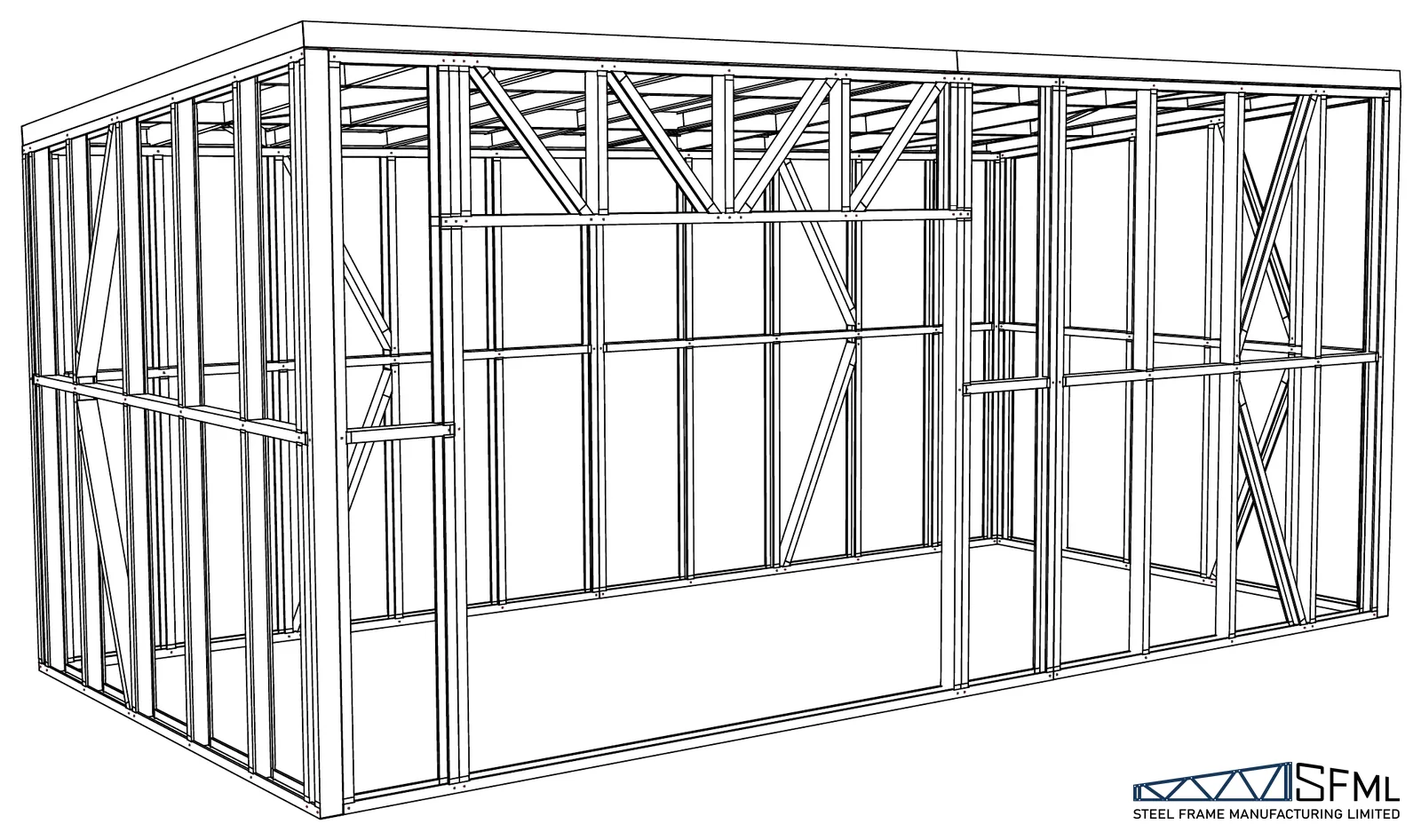

This is a frame-only kitset: every wall and roof frame is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Floor frames, doors, windows, cladding, roofing and foundations are not included.
What’s Included
| Wall frames (6 panels) | Included |
| Roof frames (2 panels, C89 rafters at 600mm centres) | Included |
| Roof-to-wall brackets | Included |
| Site kit & ancillaries (driver bits, gloves, grommets, assembly screws) | Included |
| Construction plans | Included |
| Bracing design | Not included — an add-on design for GIB / IBS Rigidrap-XT sheet bracing to the walls and strap bracing to the roof can be supplied on request |
| Bracing products (GIB, IBS Rigidrap-XT, straps) | Not included — supplied by others |
| Cladding & roofing | Available at additional cost — ask our team about options |
| Door, door frame & windows | Not included — the door opening is framed into the wall; doors and windows are supplied by others |
| Floor frame | Not included — ask our team if you need one |
| Foundation design & construction | Not included — slab or timber joist foundation designed by others, or by SFML on request |
| Building consent documentation | Available through our in-house design team on request |
Specifications
| Product code | SO-3×6-A |
| Footprint | 3.0m x 6.0m (18m²) |
| Stud height | 2420mm rising to 2720mm |
| Roof | Mono-pitch, 5.9° pitch |
| Roof framing | Two roof panels, C89 rafters at 600mm centres |
| Wall framing | C89 × 41.3 × 0.75 steel, studs at 600mm centres, nogs at 1350mm centres |
| Door opening | 2400mm W x 2100mm H (frame opening size), south wall |
| Wind zone | Up to High (H) |
| Snow load | Below 1kPa |
| Foundations | Slab or timber joist — by others, or by SFML on request (not included) |

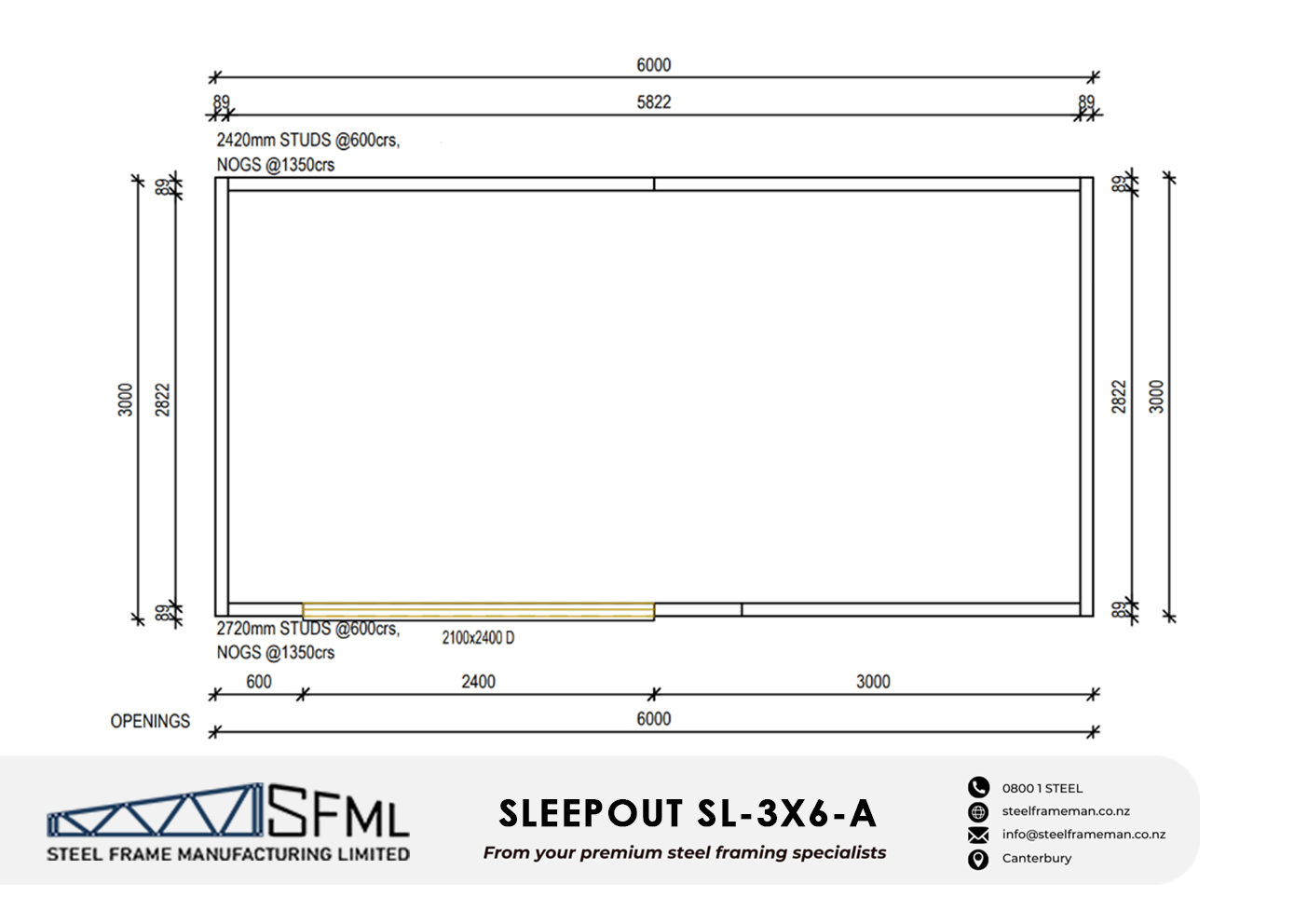

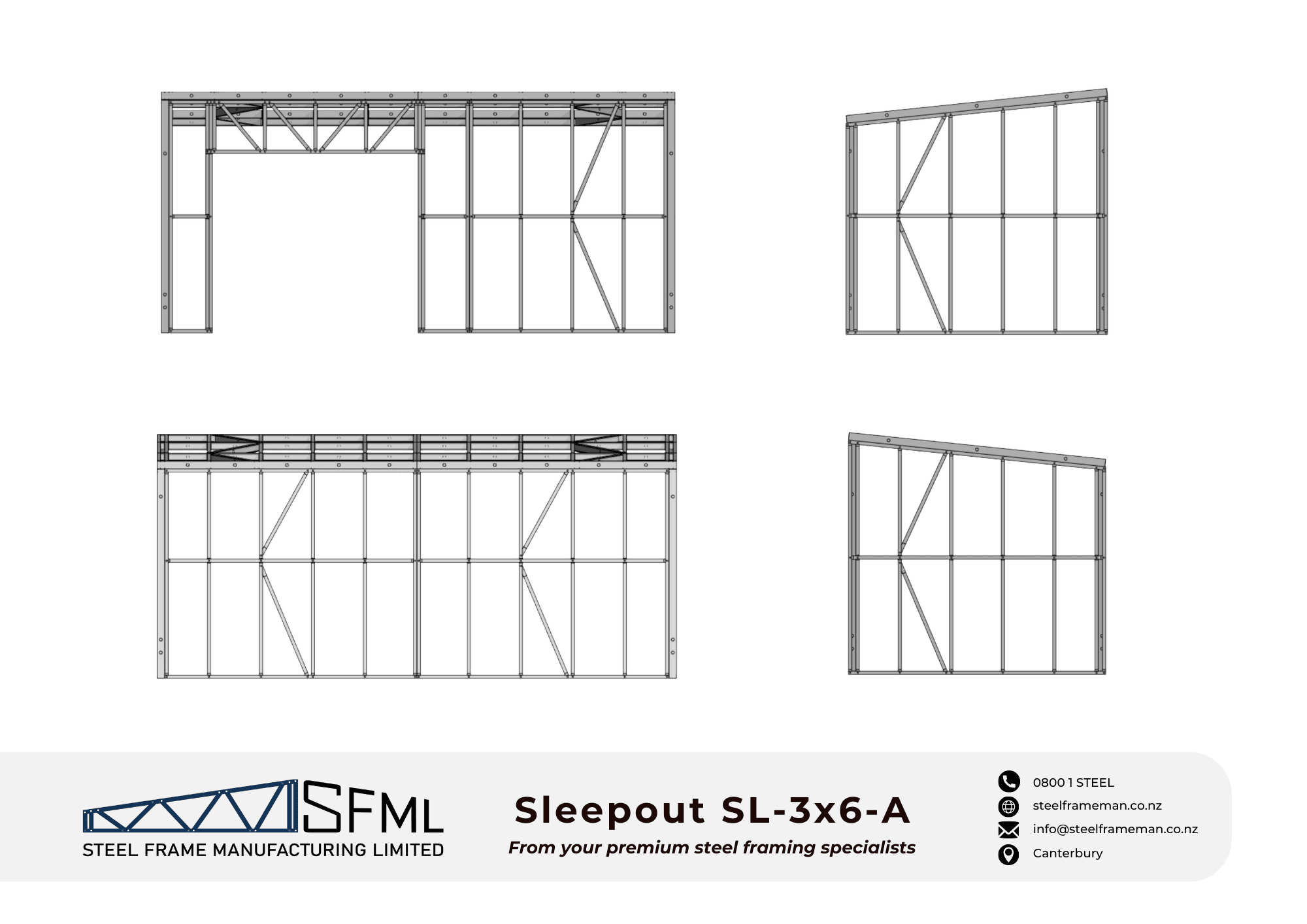

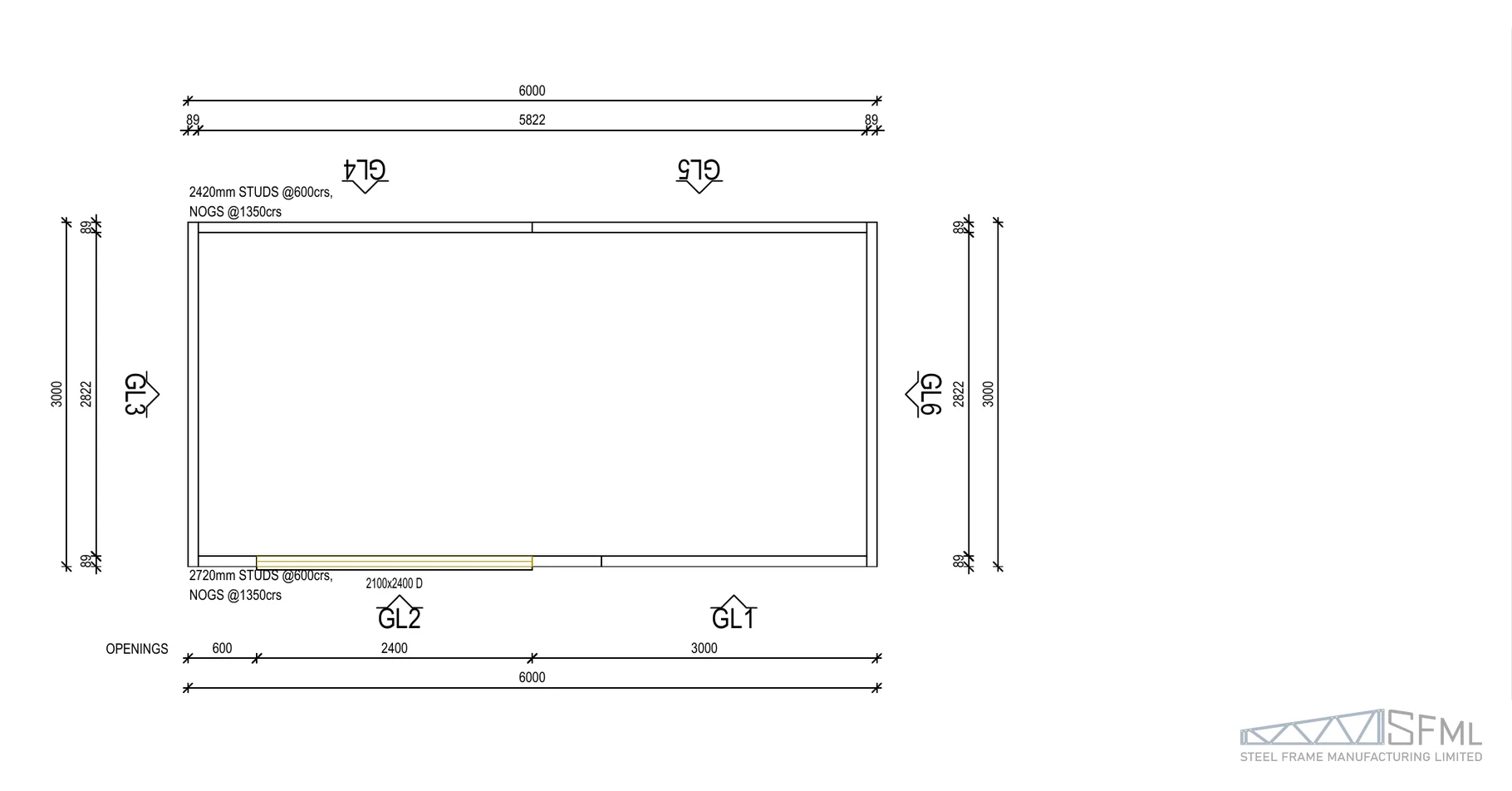

Construction Plans
The construction plans for the SO-3×6-A sleepout steel frame kitset show the wall and roof frame layouts, openings and dimensions, so you can check the frame against your site before you order. They are for the standard kitset and are not site-specific; building consent documentation is available through our design team on request.
Site Suitability & Design Notes
Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing design is excluded from the base kit; an add-on design for sheet bracing to the walls and strap bracing to the roof can be supplied, with the bracing products supplied by others.
At 5.9° the roof pitch is below the 8° minimum for typical corrugated roofing, so choose a trough/tray or trapezoid profile — NZBC E2 allows these down to 3°. This kitset supplies the steel structure of a sleepout only: whether your project needs building consent, and what insulation, linings and weathertightness a habitable room must meet, depends on your site and council, so check with your local council before you build. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.
Engineering: An engineer’s PS1 is not included. It is available at additional cost on request, or you can use your own engineer.
Compare Sleepout Sizes
Want a gable roof and two rooms instead? See the 3.0m x 6.0m B gable sleepout kitset. Need a smaller footprint? See the 3.0m x 4.8m A sleepout kitset.
Delivery & Installation
Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to collect and assemble on site. Pre-assembled frames, ready to stand with frame-to-frame fixings provided, are available at an additional freight cost. Freight costs are determined by your delivery location.
Pricing
The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.
Frequently Asked Questions
What size is the SO-3×6-A sleepout kitset?
The SO-3×6-A measures 3.0m wide by 6.0m long, an 18m² footprint. Stud heights run from 2420mm up to 2720mm under a 5.9° mono-pitch roof.
What’s included in the kit?
The kit includes six wall frames, two roof frames, roof-to-wall brackets, a site kit of ancillaries (driver bits, gloves, grommets and assembly screws) and construction plans. Doors, windows, floor frames, cladding and roofing are not included, and bracing design is an add-on — see the What’s Included table above.
How big is the door opening?
There is one door frame opening in the long south wall, 2400mm wide by 2100mm high. It is a frame opening size, and the door itself and its frame are supplied by others.
What wind and snow loads is it designed for?
The design is suitable up to High wind zone and snow loads below 1kPa. Confirm your site conditions with our team before ordering.
What roofing suits a 5.9° roof pitch?
A pitch below 8° is not suitable for typical corrugated profiles. NZBC E2 allows trough/tray or trapezoid profiles down to 3°, so choose one of those for this mono-pitch roof.
Are foundations or a floor included?
No. The SO-3×6-A is designed to sit on a slab or timber joist foundation designed by others, or by SFML on request, and neither the foundation nor a floor frame is included in the kit price.
Can you deliver the SO-3×6-A to my site?
Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
Original price was: $3,214.25.$3,053.54Current price is: $3,053.54. incl. GST
