Sleepout Steel Frame Kitset 2.4m x 3.6m A (8.64sqm)

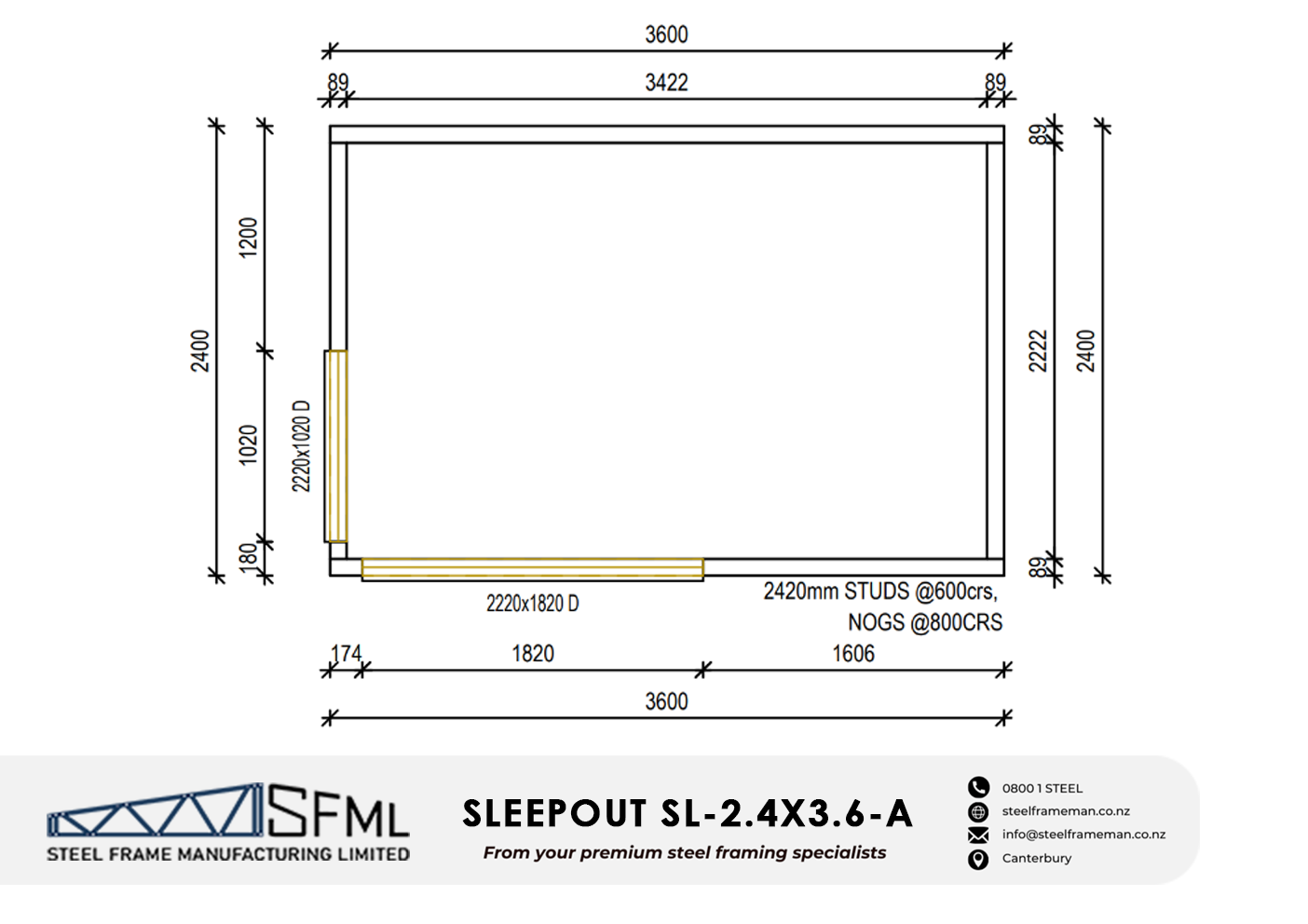

The Sleepout Steel Frame Kitset 2.4m x 3.6m A is an 8.64m² steel framing kit for a compact detached sleepout, studio or home office. Wall frames and roof frames are supplied, with two door openings (1820mm and 1020mm wide, both 2220mm high) and a 38° gable roof; cladding and roofing are available separately.

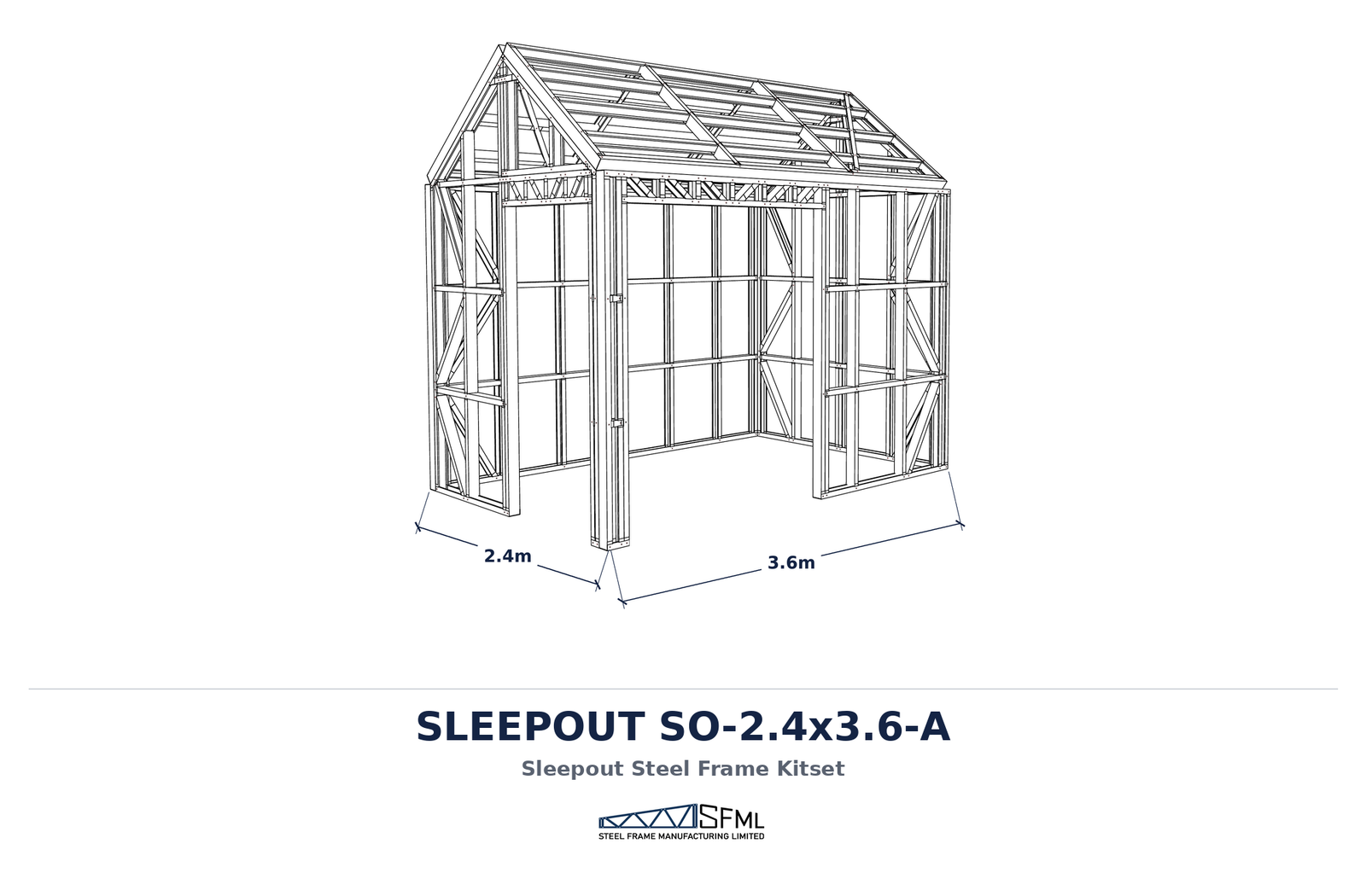

At a glance: The SO-2.4×3.6-A sleepout steel frame kitset measures 2.4m x 3.6m (8.64m²) with stud heights from 2420mm to 3273mm under a 38° gable roof. It has a 1820mm wide x 2220mm high door opening and a 1020mm wide x 2220mm high door opening, and is designed for wind zones up to Medium and snow loads of <1.5kPa. Regular price from $2,845.33 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.

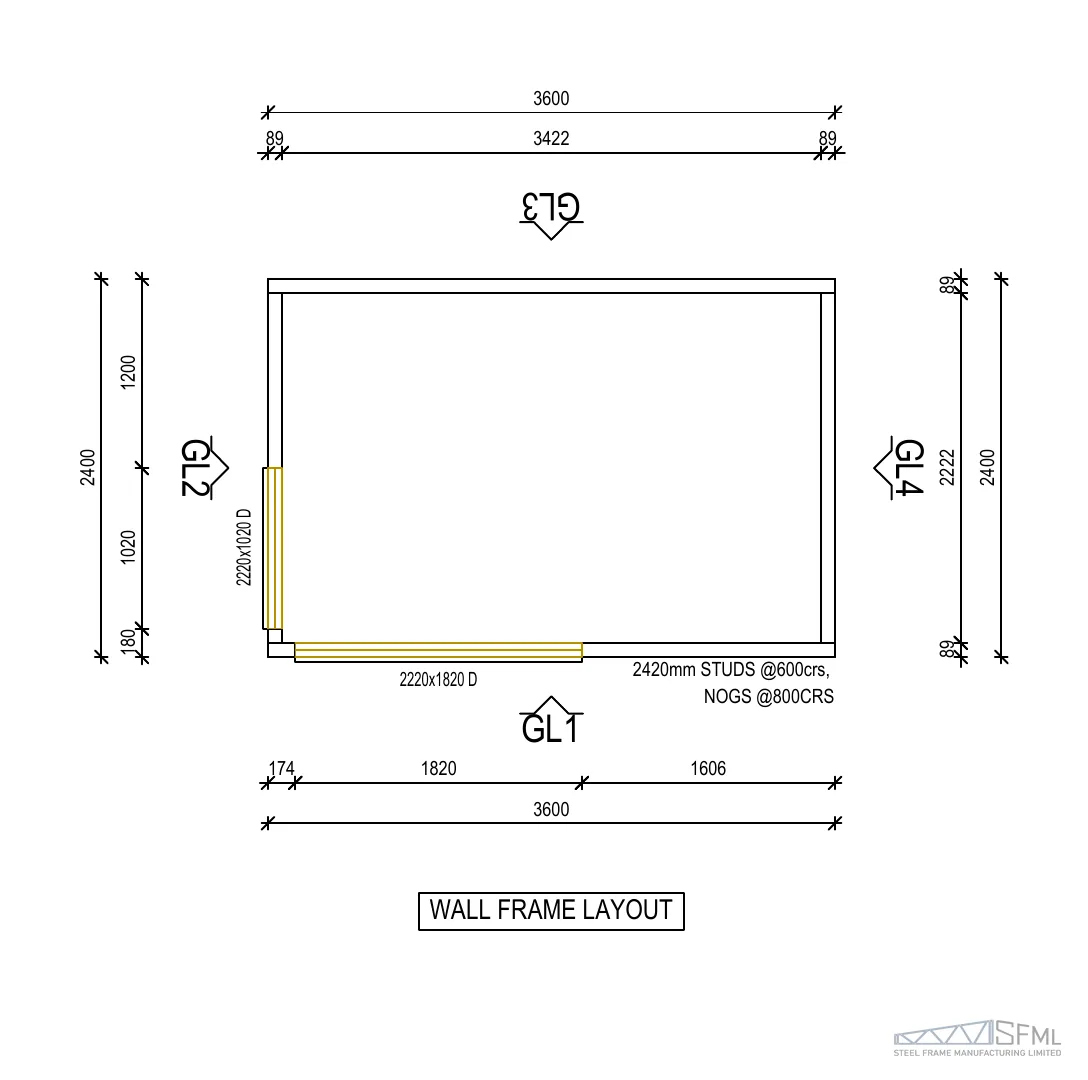

This sleepout steel frame kitset 2.4m x 3.6m is a frame-only kitset: every wall and roof frame is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Doors, windows, floor frames, cladding, roofing and foundations are not included.

What’s Included

Specifications

Site Suitability & Design Notes

This kitset is designed within the scope of NASH Standard Part Two: May 2019 for a Medium wind zone and snow loads of <1.5kPa (as per the BRANZ map and NASH SP2:2019); you can supply your own alternative calculations if your site requires them. Confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing design is excluded from the base kit; an add-on design for IBS Rigidrap-XT / GIB sheet bracing to the walls and strap bracing to the roof can be supplied on request, with the bracing products supplied by others.

At 38° the roof pitch is well above the 8° minimum for typical corrugated roofing, so most standard profiles suit; confirm the profile and its fixings with your roofing supplier. This kitset supplies the steel structure of a sleepout only: whether your project needs building consent, and what insulation, linings and weathertightness a habitable room must meet, depends on your site and council, so check with your local council before you build. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.

Engineering: An engineer’s PS1 is not included. It is available at additional cost on request, or you can use your own engineer.

Compare Sleepout Sizes

Need more floor area? See the 3m x 4m A sleepout kitset (12m²) or the 3.0m x 4.8m A sleepout kitset (14.4m²).

Delivery & Installation

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to collect and assemble on site. Pre-assembled frames, ready to stand with frame-to-frame fixings provided, are available at an additional freight cost. Freight costs are determined by your delivery location.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the SO-2.4×3.6-A sleepout kitset?

The SO-2.4×3.6-A measures 2.4m by 3.6m, an 8.64m² footprint, with stud heights from 2420mm up to 3273mm under a 38° gable roof.

What’s included in the kit?

The sleepout steel frame kitset 2.4m x 3.6m includes wall frames, gable roof frames with C89 purlins, roof-to-wall brackets and angle, a site kit of ancillaries (driver bits, gloves, grommets and assembly screws) and construction plans. Doors, windows, floor frames, cladding and roofing are not included, and bracing design is an add-on — see the What’s Included table above.

What wind and snow loads is it designed for?

The design is suitable up to Medium wind zone and snow loads of <1.5kPa. Confirm your site conditions with our team before ordering.

How big are the door openings?

There are two door openings: 1820mm wide by 2220mm high, and 1020mm wide by 2220mm high. They are frame opening sizes, and the doors that fill them are supplied by others.

What roofing suits a 38° pitch?

At 38° the pitch is well above the 8° minimum for typical corrugated roofing, so most standard roofing profiles suit. Check the profile and fixings with your roofing supplier.

Is bracing design included?

No. Bracing design is excluded from the kit price but can be supplied on request, for IBS Rigidrap-XT / GIB sheet bracing to the walls and strap bracing to the roof. The bracing products themselves are supplied by others.

Are foundations or a floor included?

No. The SO-2.4×3.6-A is designed to sit on a slab or timber joist foundation designed by others, or by SFML on request, and neither the foundation nor a floor frame is included in the kit price.

Can you deliver the SO-2.4×3.6-A to my site?

Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
