Garage Steel Frame Kitset – 5.4m x 5.9m – A (30sqm inside frame)

Steel Frame Manufacturing Ltd 5.4m x 5.9m (30m2 inside frame area) Garage steel framing kit includes roof frames, wall frames and ancillaries (screws, driver bits etc).

Delivery Type : Bundle Pack or Pre Assembled Frames

This kitset garage measures 5.4m x 5.9m (30sqm inside frame) and is engineered as a complete steel frame kit for New Zealand conditions. Every kitset garage we supply ships with construction plans, site kit and all the fixings needed for a straightforward self-build.

At a glance: The GA-5.4×5.9-A kitset garage measures 5.4m x 5.9m (30sqm inside frame). The GA-5.4×5.9-A has a 3600mm wide x 2150mm high garage door opening and a 915mm wide x 2150mm high personnel door. It is engineered for wind zones up to High and snow loads of <1kPa. Regular price from $6,052.93 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.

Design basis: Standard design suits wind zones up to High and snow loads up to 1 kPa (NASH Standard Part 2, 2019). Tell us your site’s wind and snow zones when you order and we’ll confirm the design suits your site, or adjust it. Engineer’s PS1 is not included unless quoted. Foundations and consent are by others.

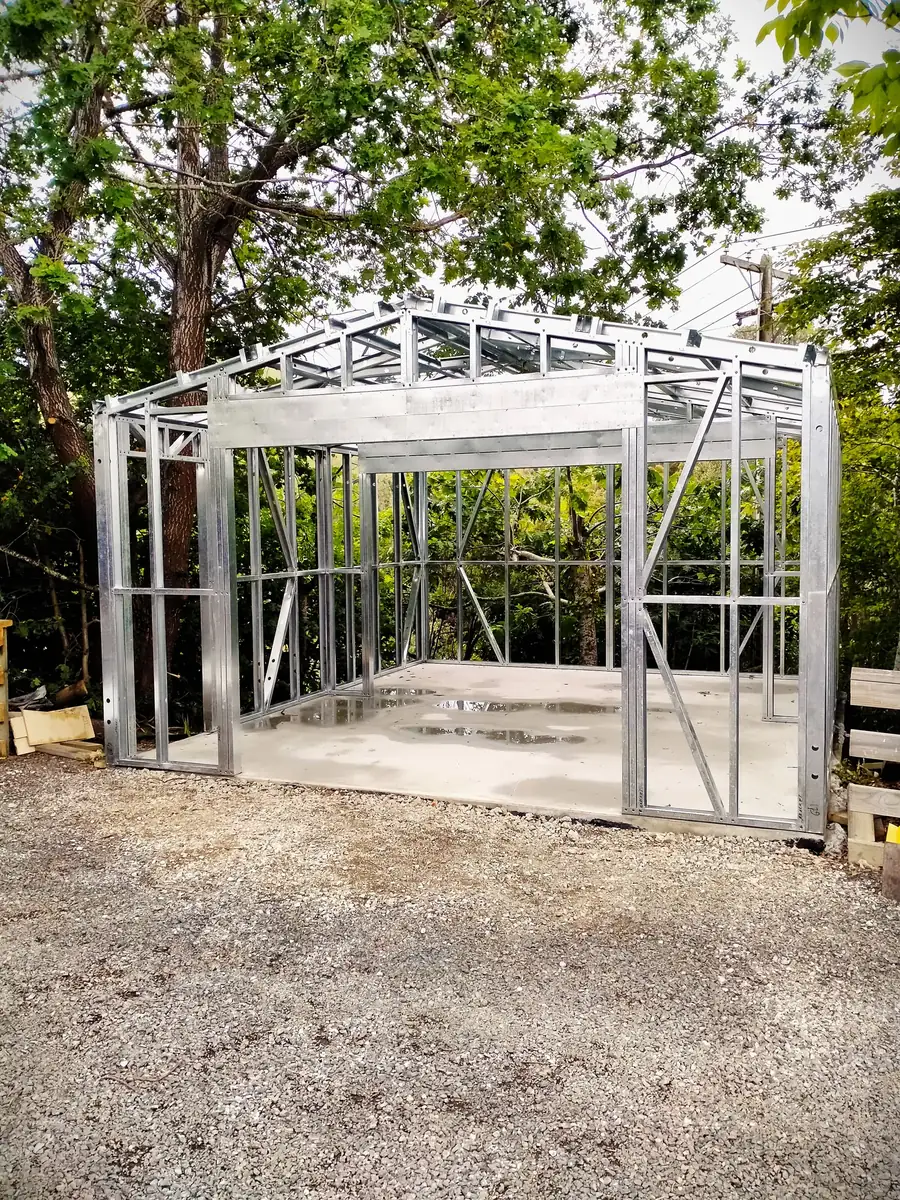

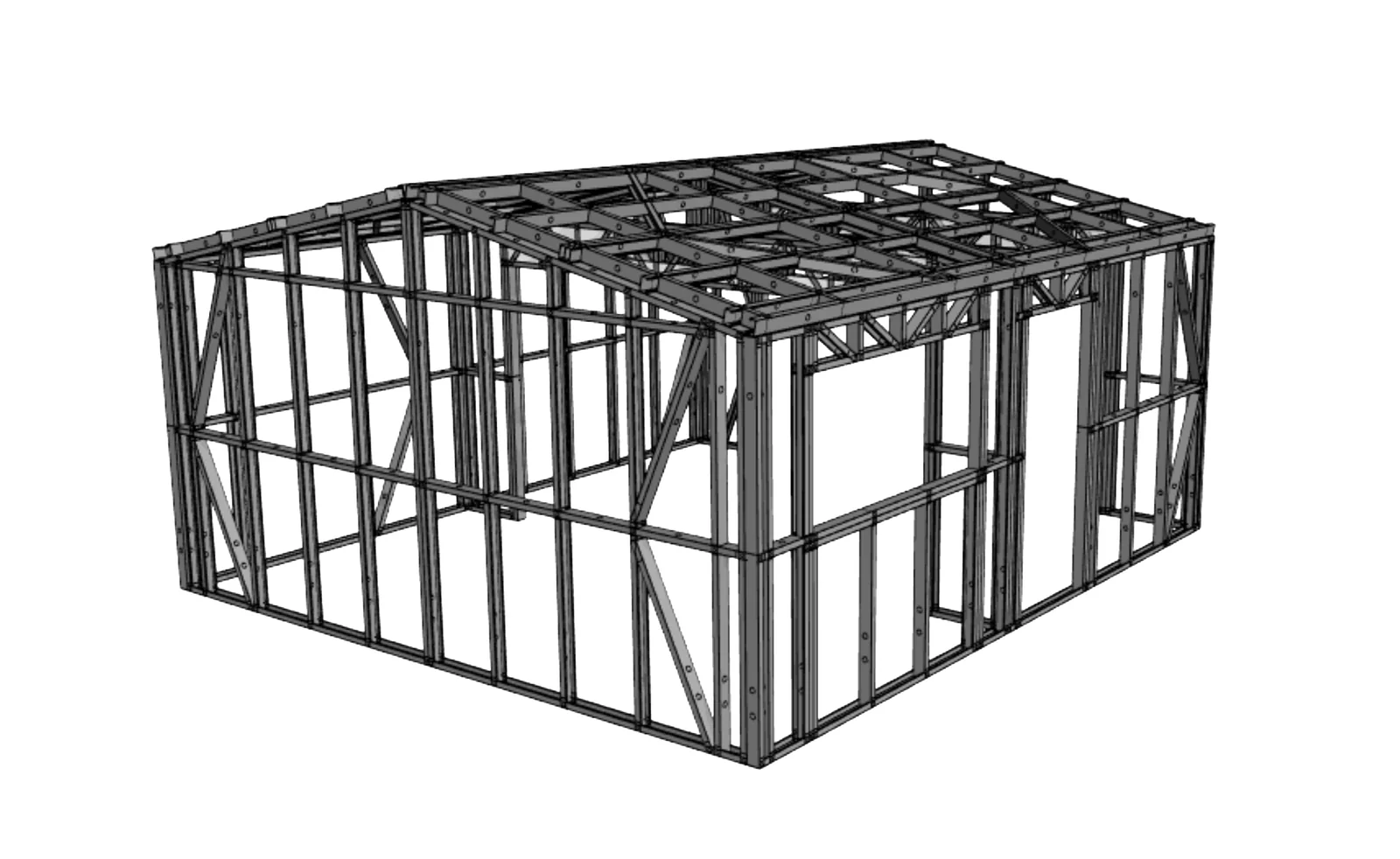

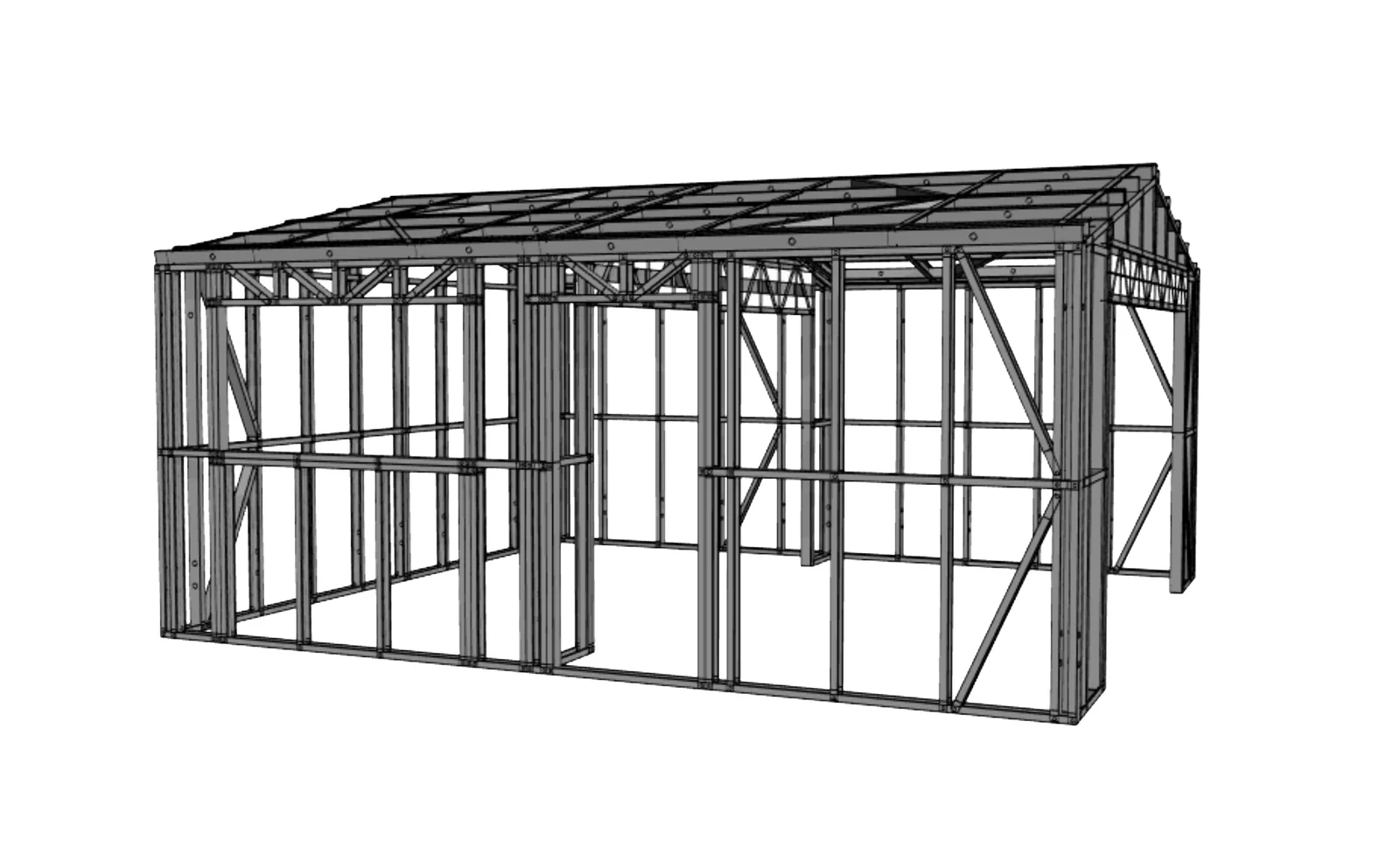

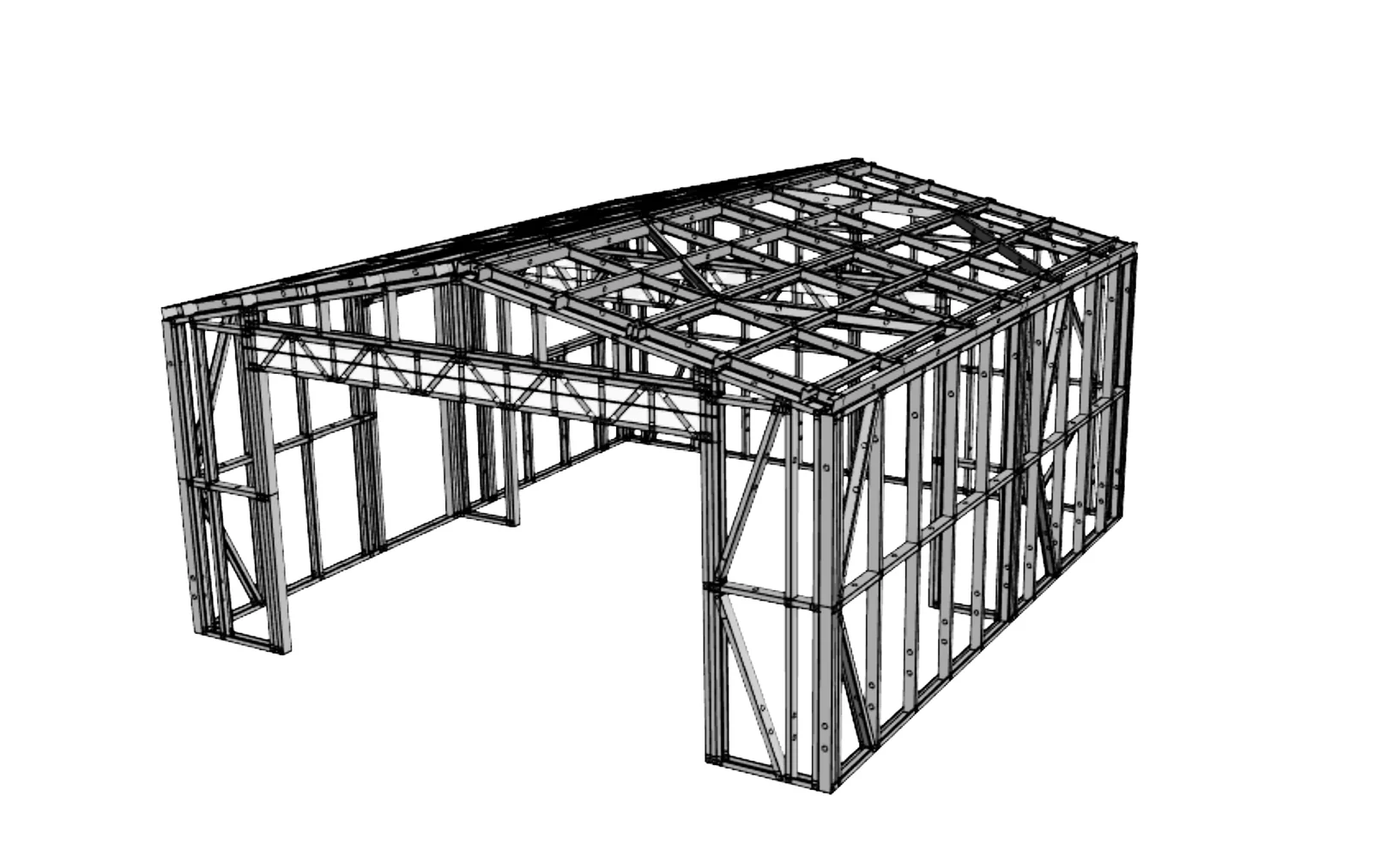

This kitset garage ships flat-packed with every component pre-cut to the dimensions in the specifications below.

What’s Included

Wall frames Included
Roof frames Included
Site kit & ancillaries (driver bits, gloves, grommets, assembly screws, roof-to-wall brackets) Included
Construction plans Included
Bracing design (IBS Rigidrap-XT / GIB sheet bracing to walls, strap bracing to roof) Design available — bracing products supplied by others
Cladding & roofing Available at additional cost — ask our team about options
Foundation design & construction Not included — slab foundation designed by others, or by SFML on request

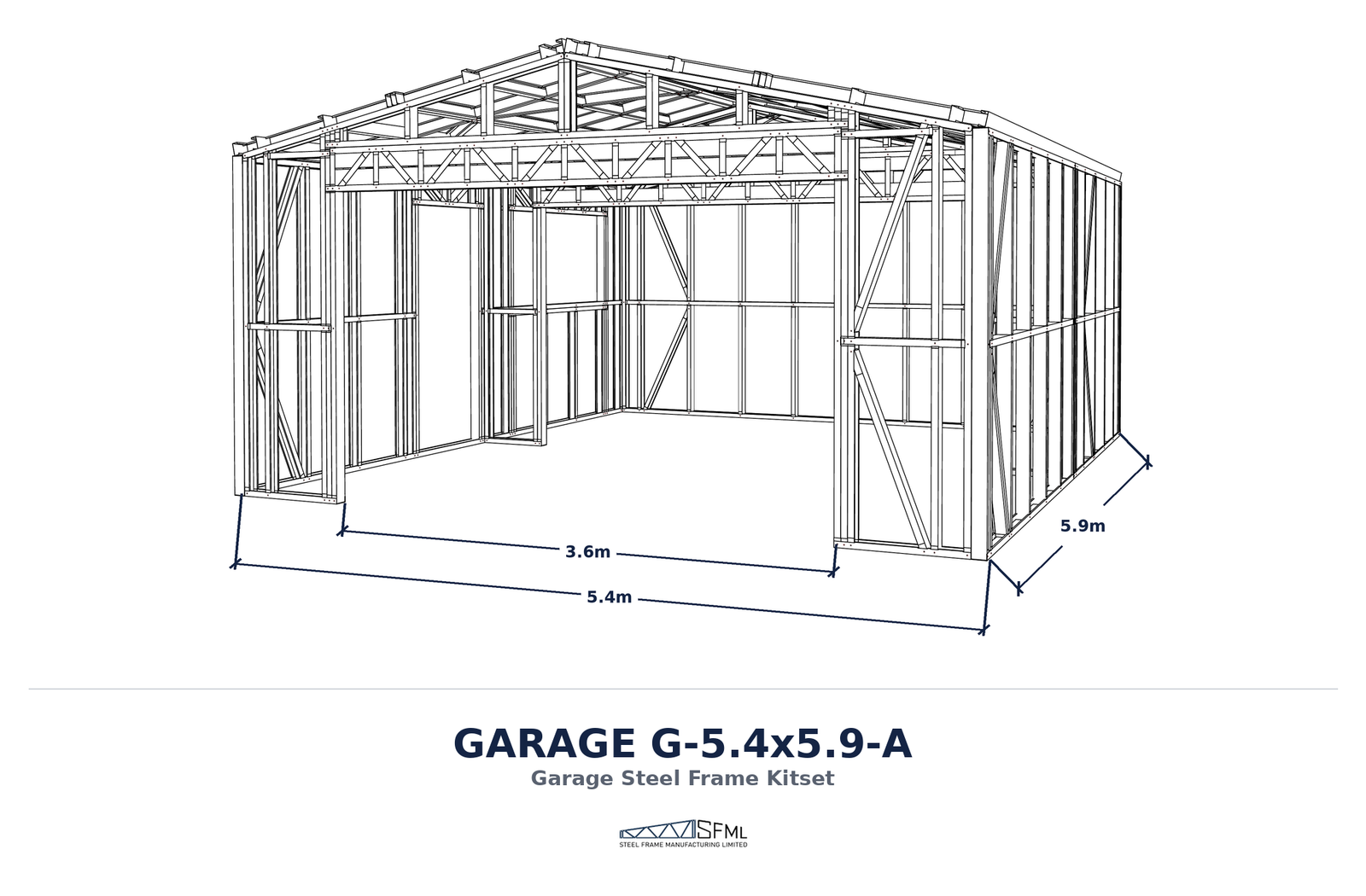

Specifications

Product code GA-5.4×5.9-A
Footprint 5.4m x 5.9m (30sqm inside frame)
Stud height 2.420m – 2.995m (raking)
Roof pitch 12°
Stud spacing 600mm centres
Nog spacing 1200mm centres
Garage door opening 3600mm W x 2150mm H
Personnel door opening 915mm W x 2150mm H
Wind zone rating Suitable up to High wind zone
Snow load rating Suitable for snow load <1kPa
Foundation Slab foundation (design by others, or SFML on request)
Bracing IBS Rigidrap-XT / GIB sheet bracing to walls, strap bracing to roof

Site Suitability & Design Notes

This kitset is engineered for a High wind zone and a snow load of <1kPa. Bracing design is available for IBS Rigidrap-XT / GIB sheet bracing to walls and strap bracing to the roof — bracing products are supplied by others, and GIB bracing requires a thermal break. Slab foundation design is by others, or by SFML on request, and is not included in the price. Confirm your own site’s wind and snow zone and ground conditions with our team before ordering.

All window and door opening sizes on the plans are frame opening sizes, and SFML supplies frame-to-frame connections only unless other arrangements are made. We can also supply cladding and roofing at an additional cost — enquire with our team to see the options available. Through our in-house design team we can handle your building consent documentation and amendments of existing plans to suit steel framing if required, and each frame can be customised to fit your own steel framing and construction requirements.

Delivery & Installation

Lead time: Typically under 10 working days from order confirmation, if you approve plans and pay invoices promptly. Your quote confirms the timing for your order.

Delivery: Frames are made at our factory in Waimate and collected by Booths Logistics within 1 working day of your final payment. You can also collect from our Waimate factory.

  • Flat pack: delivered free to your nearest Booths depot as a flat bundle pack for you to collect and assemble on site.
  • Pre-assembled: ready to stand, with frame-to-frame fixings provided. Freight is extra and quoted for your address. South Island delivery is scheduled within 10 to 14 days of your second invoice.
  • North Island: flat pack is delivered free to your nearest Booths depot. For assembled frames, please contact us before placing your order.

Construction Plans

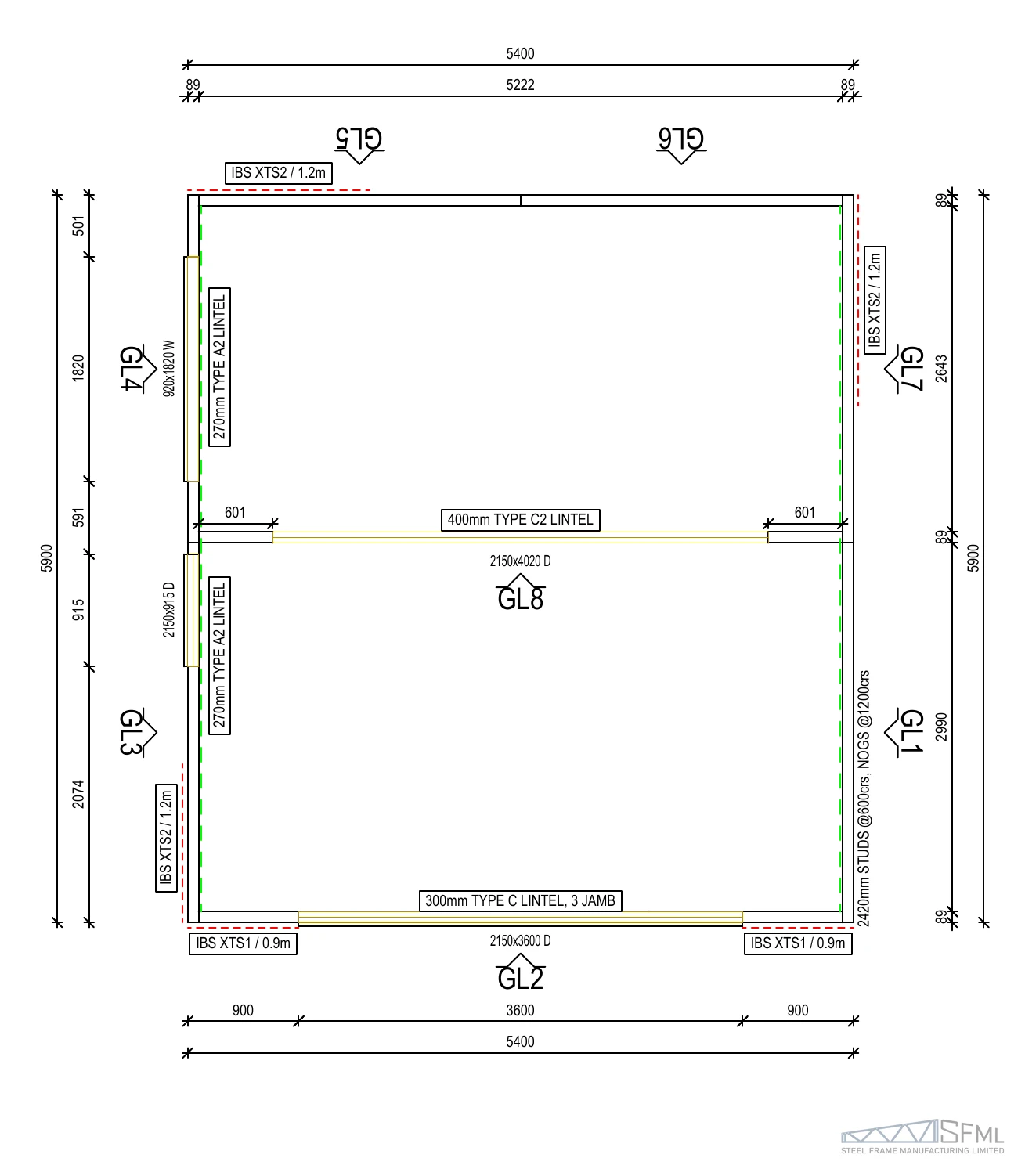

Dimensioned wall and roof frame layout plans for the GA-5.4×5.9-A are available to download: GA-5.4×5.9-A Construction Plans (PDF).

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the GA-5.4×5.9-A garage kitset?

This garage kitset measures 5400mm wide by 5900mm long, giving you 30sqm inside the frame – enough room for a single vehicle plus storage, or a small workshop setup. Stud heights run from 2420mm to 2995mm with a 12° roof pitch.

What’s included in the kit?

Each kit comes with roof frames, wall frames, and a full site kit of ancillaries – driver bits, gloves, grommets, and assembly screws – plus construction plans and roof-to-wall brackets. Cladding and roofing can be added at an additional cost; talk to our team about what’s available.

Do I need a building consent for this garage?

Most councils in New Zealand require a building consent for a structure this size. Our in-house design team can handle your building consent documentation and amend existing plans to suit steel framing, making the process straightforward.

How is the frame delivered?

Frames are manufactured at our Waimate factory. You can collect directly, or we’ll deliver free to your nearest Booths Logistics freight depot as a flat bundle pack for on-site assembly. Pre-assembled frames, ready to stand with frame-to-frame fixings, are available at an additional freight cost depending on your location.

Can the design be customised?

Yes. This design can be adapted to suit your own steel framing and construction requirements, and is rated for use up to a High wind zone and a snow load of <1kPa, with bracing design available for IBS Rigidrap XT.

How much does the GA-5.4×5.9-A garage kitset cost?

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change. Call us on 0800 178 335 for a free, comprehensive quote tailored to your site and requirements.

Ready to get your kitset garage underway? Request a free, no-obligation quote and our team will help you confirm the right size, cladding and bracing options for your site.

Whether you need a single-bay or double kitset garage, our steel frame design team can tailor the layout to your section.

Original price was: $6,052.93.Current price is: $5,750.28. incl. GST

-5%
