Garage Steel Frame Kitset 5.4m x 5.5m A (29.7sqm)
Steel Frame Manufacturing Ltd 5.4m x 5.5m Garage steel framing kit includes roof rafters, wall frames and ancillaries (brackets, screws, driver bits etc).
Delivery Type : Bundle Pack or Pre Assembled Frames
The Garage Steel Frame Kitset 5.4m x 5.5m A is a 29.7m² steel framing kit for a garage, workshop or general storage building. Wall frames and webbed rafters are supplied, with a 3.56m wide garage door opening and a 4° mono-pitch roof; cladding, roofing and floor frames are available separately.

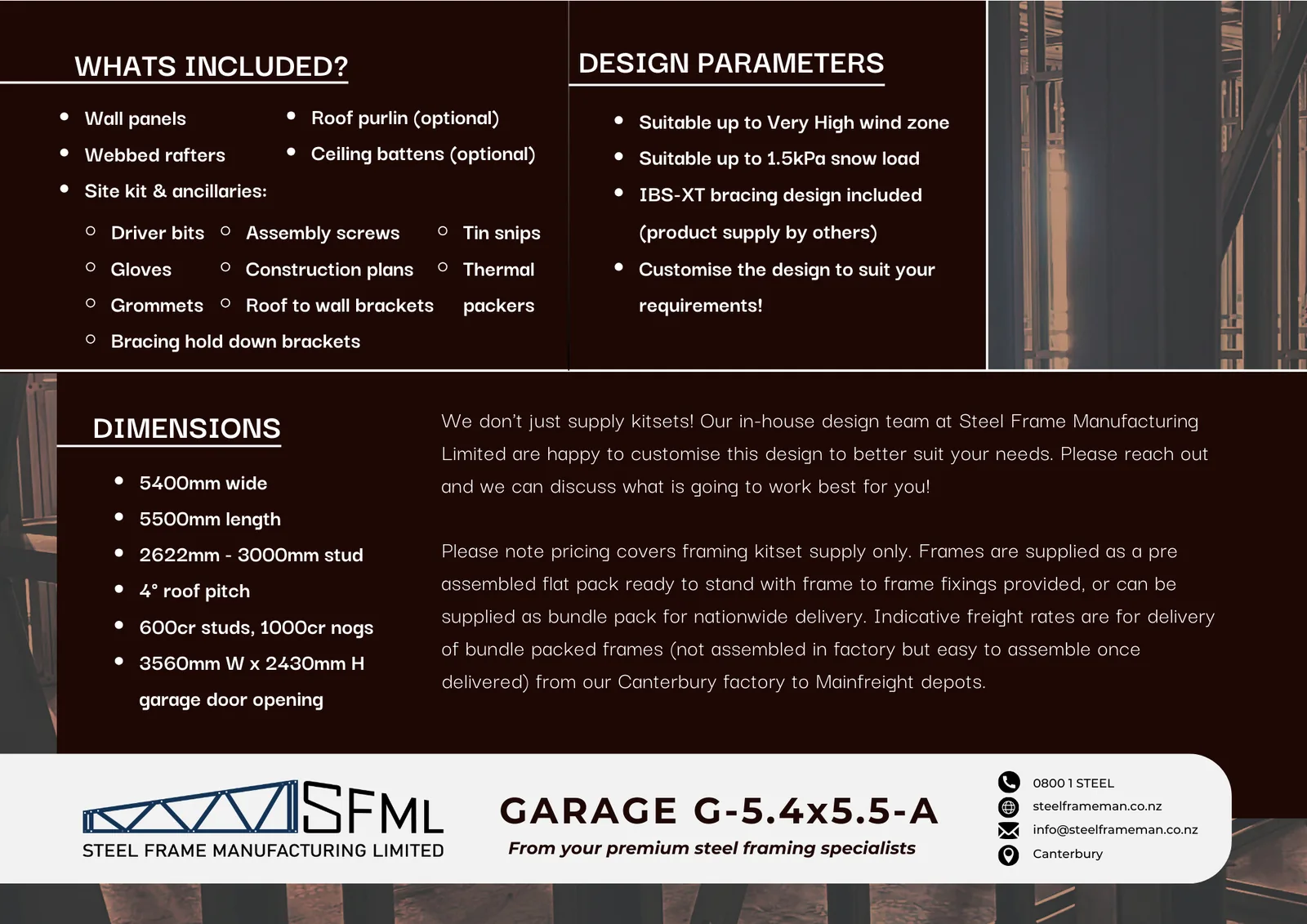

At a glance: The GA-5.4×5.5-A garage steel frame kitset measures 5.4m x 5.5m (29.7m²) with stud heights from 2622mm to 3000mm under a 4° mono-pitch roof. It has a 3560mm wide x 2430mm high garage door opening, a 910mm wide x 2250mm high door opening and a 1260mm x 1260mm window opening, with 10 webbed rafters at 600mm centres. It is designed for wind zones up to Very High and snow loads of 1.5kPa. Regular price from $6,154.86 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.
Design basis: Standard design suits wind zones up to Very High and snow loads up to 1.5 kPa (NASH Standard Part 2, 2019). Tell us your site’s wind and snow zones when you order and we’ll confirm the design suits your site, or adjust it. An engineer’s PS1 is not included; it is available at additional cost, or you can use your own engineer. Foundations and consent are by others.
This is a frame-only kitset: every wall frame and rafter is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. The garage door, doors, windows, cladding, roofing, floor frames and foundations are not included.
What’s Included
| Wall frames (4 panels) | Included |
| Webbed rafters (10, at 600mm centres) | Included |
| Roof-to-wall brackets and thermal packers | Included |
| Bracing hold-down brackets and washers | Included |
| Site kit & ancillaries (driver bits, tin snips, gloves, assembly screws, service hole grommets) | Included |
| Bracing design (IBS RigidRAP-XT sheet bracing to walls, strap bracing to roof) | Included |
| Construction plans | Included |
| Ceiling battens (at 600mm centres max) and roof purlins | Optional supply at additional cost |
| Floor frames | Optional supply at additional cost |
| Cladding & roofing | Available at additional cost — ask our team about options |
| Bracing products (IBS RigidRAP-XT sheet, straps) | Not included — supplied by others |
| Garage door, personnel door & windows | Not included — the openings are framed into the wall frames; doors and windows are supplied by others |
| Foundation design & construction | Not included — slab foundation designed by others, or by SFML on request |
| Engineer’s PS1 | Not included — available at additional cost on request, or use your own engineer |
| Building consent documentation | Available through our in-house design team on request |
Specifications
| Product code | GA-5.4×5.5-A |
| Footprint | 5.4m x 5.5m (29.7m²) |
| Stud height | 2622mm on the low wall rising to 3000mm on the high wall |
| Roof | Mono-pitch, 4° pitch |
| Roof framing | 10 webbed rafters (300mm deep) at 600mm centres |
| Wall framing | C89 × 41.3 × 0.75 steel, studs at 600mm centres, nogs at 1000mm centres |
| Garage door opening | 3560mm W x 2430mm H (frame opening size), Type C2 lintel with 4 jamb studs |
| Door opening | 910mm W x 2250mm H (frame opening size) |
| Window opening | 1260mm W x 1260mm H (frame opening size) |
| Wind zone | Up to Very High (VH) |
| Snow load | 1.5kPa |
| Foundations | Slab — by others, or by SFML on request (not included) |
Site Suitability & Design Notes
Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing is designed for IBS RigidRAP-XT sheet bracing to the walls and strap bracing to the roof; the bracing products themselves are supplied by others, and alternative bracing products require specific engineering design at additional cost.
This kitset supplies the steel structure of a garage only. Whether your project needs building consent depends on your site and council, so check with your local council before you build. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.
Delivery & Installation
Lead time: Typically under 10 working days from order confirmation, if you approve plans and pay invoices promptly. Your quote confirms the timing for your order.
Delivery: Frames are made at our factory in Waimate and collected by Booths Logistics within 1 working day of your final payment. You can also collect from our Waimate factory.
- Flat pack: delivered free to your nearest Booths depot as a flat bundle pack for you to collect and assemble on site.
- Pre-assembled: ready to stand, with frame-to-frame fixings provided. Freight is extra and quoted for your address. South Island delivery is scheduled within 10 to 14 days of your second invoice.
- North Island: flat pack is delivered free to your nearest Booths depot. For assembled frames, please contact us before placing your order.
Pricing
The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.
Construction Plans

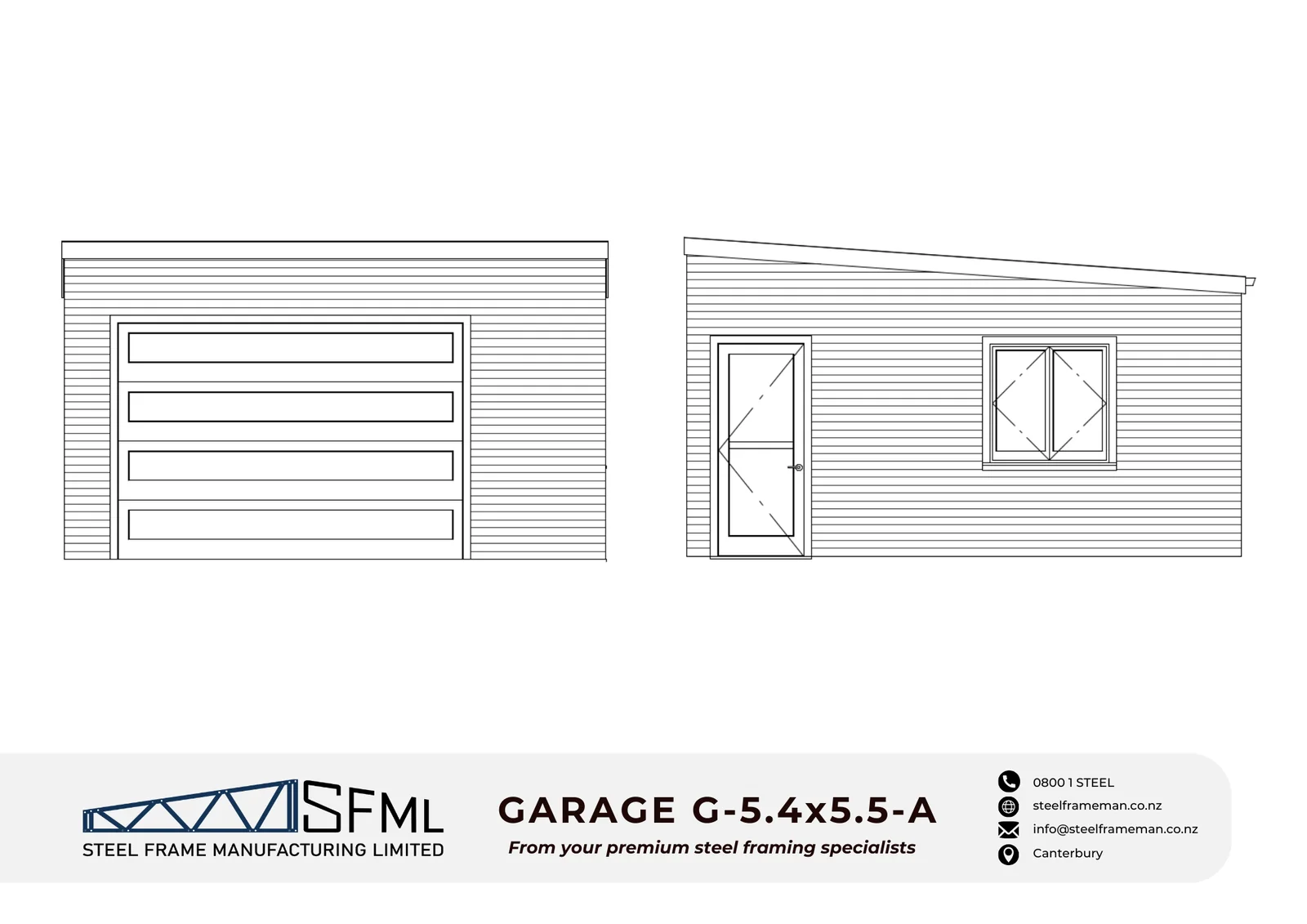

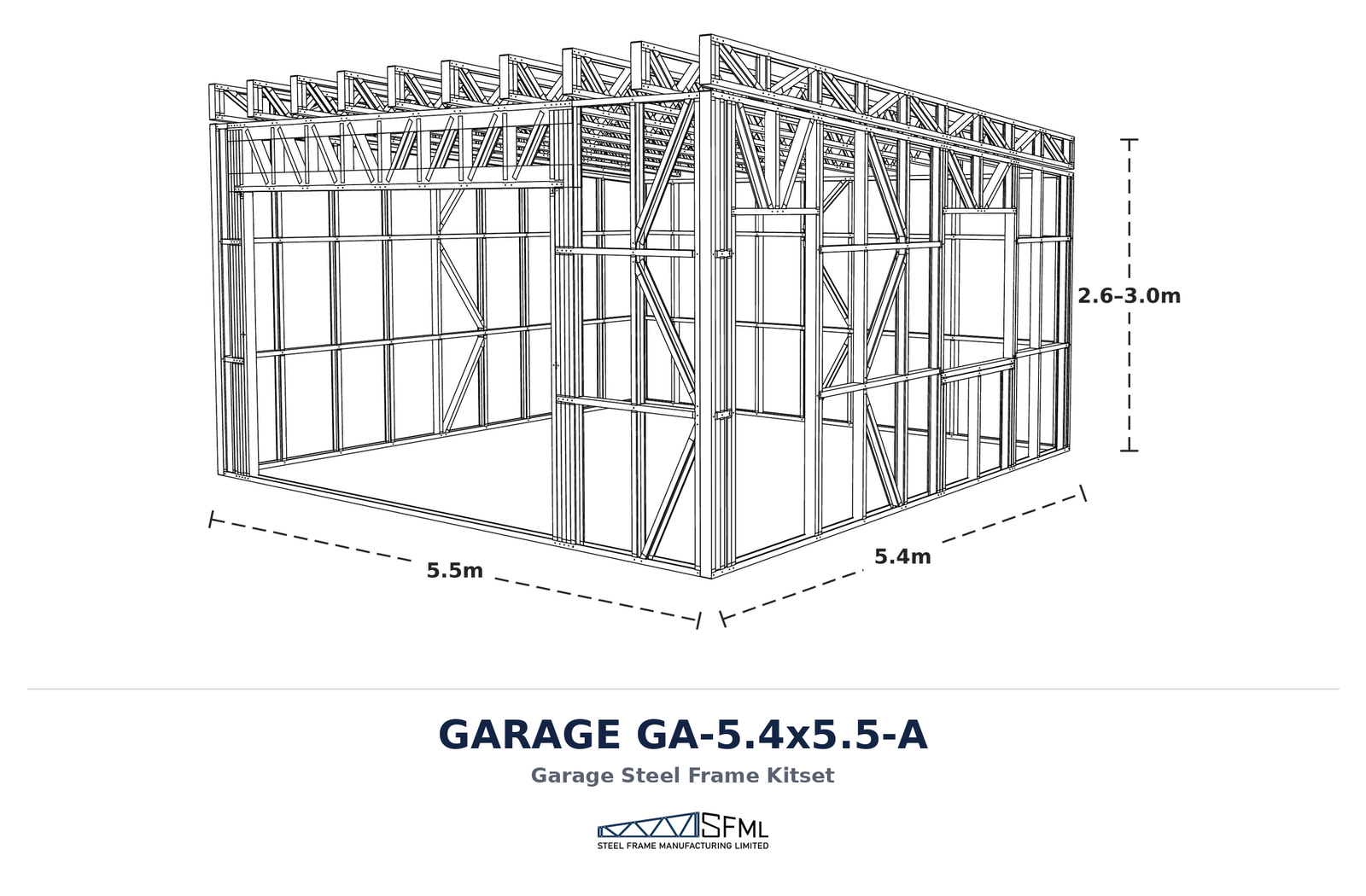

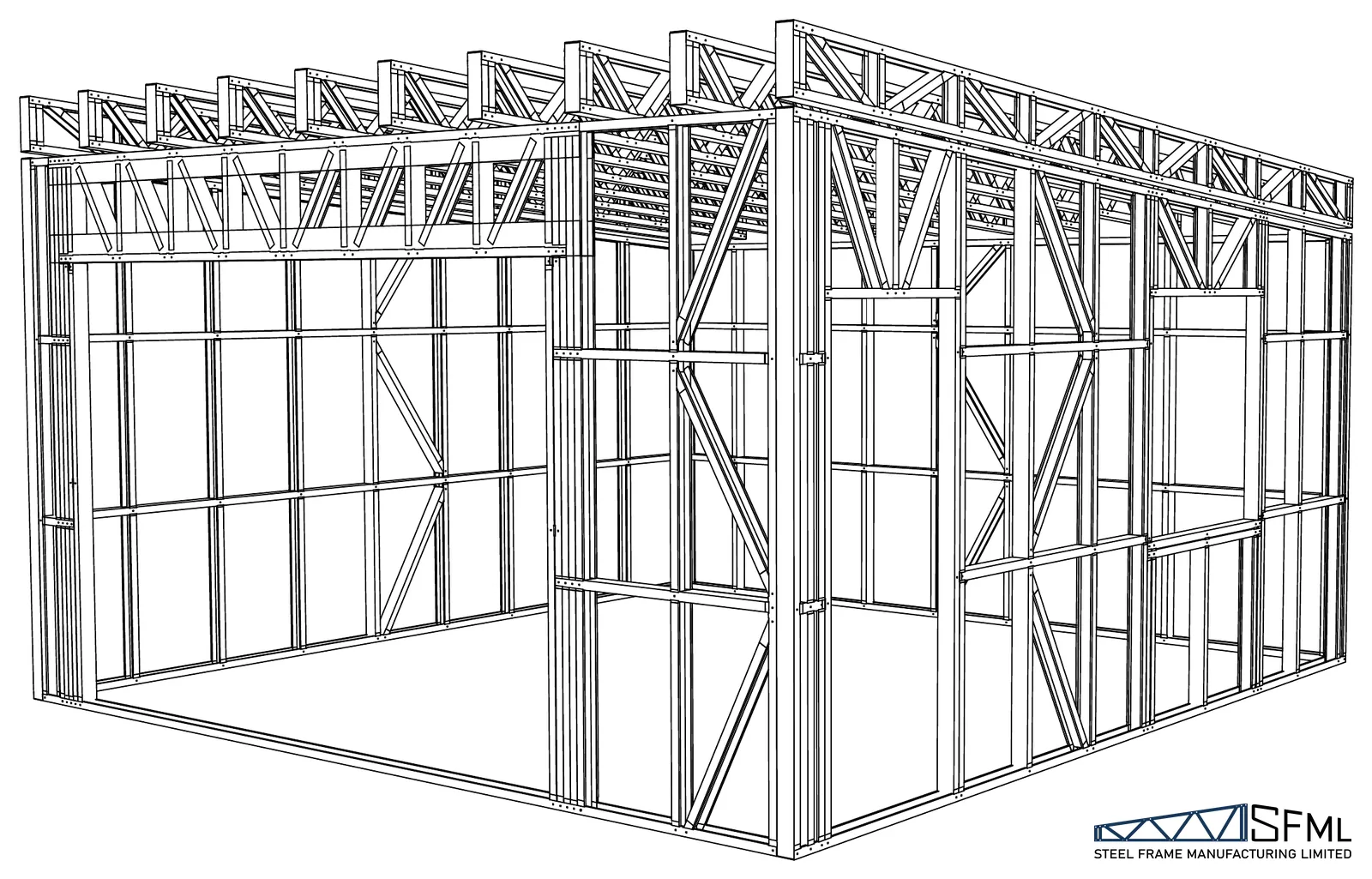

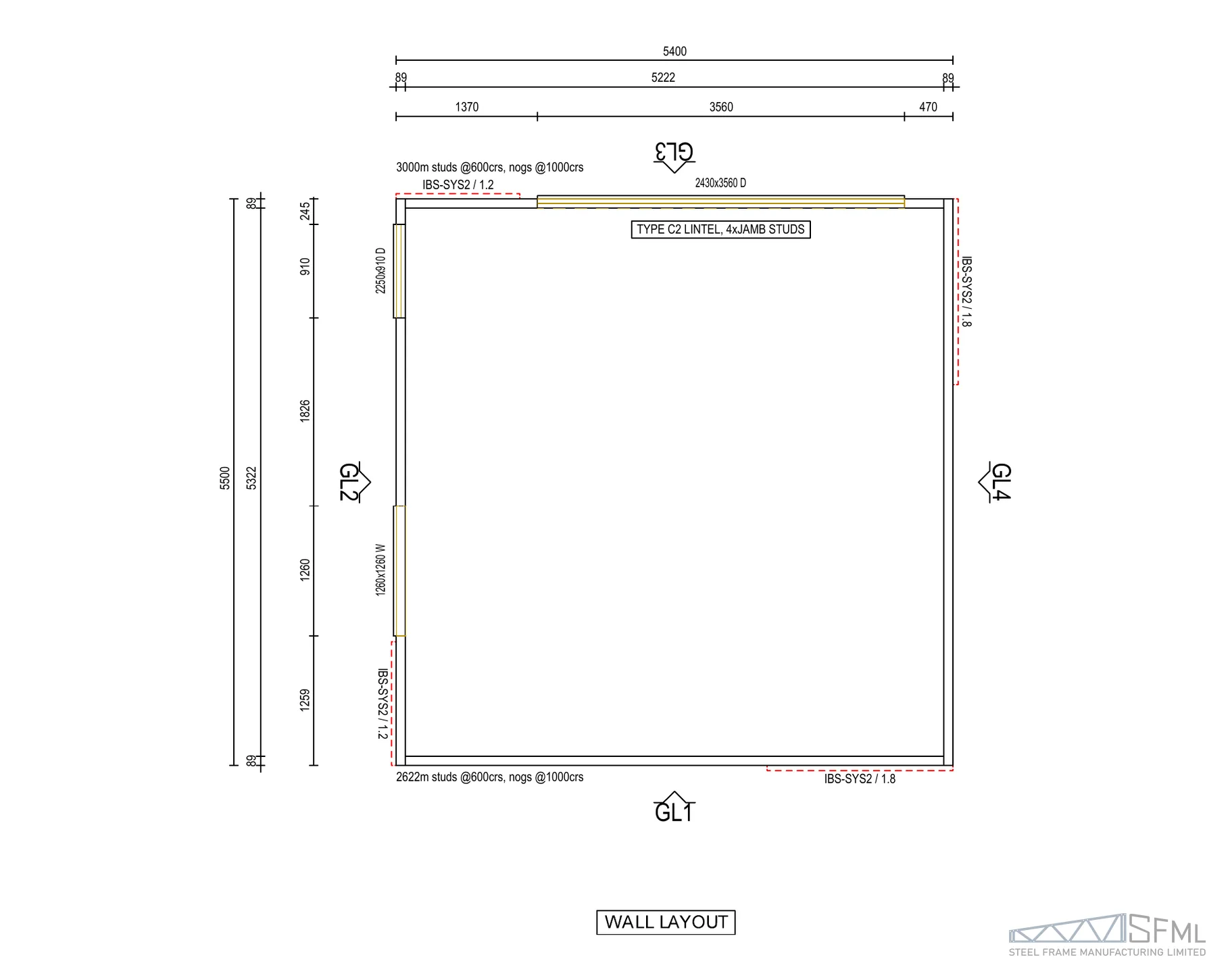

The construction plans for the GA-5.4×5.5-A garage steel frame kitset show the wall and roof frame layouts, openings and dimensions, so you can check the frame against your site before you order. They are for the standard kitset and are not site-specific; building consent documentation is available through our design team on request.
Frequently Asked Questions
What size is the GA-5.4×5.5-A garage kitset?
The GA-5.4×5.5-A measures 5.4m wide by 5.5m long, a 29.7m² footprint. Stud heights run from 2622mm to 3000mm under a 4° mono-pitch roof.
What’s included in the kit?
The kit includes 4 wall frames, 10 webbed rafters, roof-to-wall brackets and thermal packers, bracing hold-down brackets and washers, a site kit of ancillaries and construction plans. The garage door, doors, windows, cladding, roofing and foundations are not included — see the What’s Included table above.
How wide is the garage door opening?
The framed opening is 3560mm wide by 2430mm high, with a Type C2 lintel and 4 jamb studs, ready for your garage door. There is also a 910mm by 2250mm door opening and a 1260mm by 1260mm window opening. The doors and window themselves are supplied by others.
What wind and snow loads is it designed for?
The design is suitable up to Very High wind zone and snow loads of 1.5kPa, with IBS RigidRAP-XT sheet bracing to the walls and strap bracing to the roof designed in. Confirm your site conditions with our team before ordering.
Is a floor or foundation included?
No. The GA-5.4×5.5-A is designed for a slab foundation designed by others, or by SFML on request. Floor frames are an optional supply at additional cost, and neither is included in the kit price.
Do I need building consent for this garage?
Most councils require building consent for a structure of this size, but it depends on your site and council. Our in-house design team can prepare building consent documentation on request.
Can you deliver the GA-5.4×5.5-A to my site?
Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
Original price was: $6,154.86.$5,847.12Current price is: $5,847.12. incl. GST
