Glasshouse Steel Frame Kitset 2.7m x 3.6m A (9.72sqm)
Glasshouse steel frame kitset 2.7m x 3.6m (9.72m²) — wall frames, roof frames and assembly screws included, with a 20° roof pitch and an 800mm door opening (door and door frame not included).
Delivery Type : Bundle Pack or Pre Assembled Frames

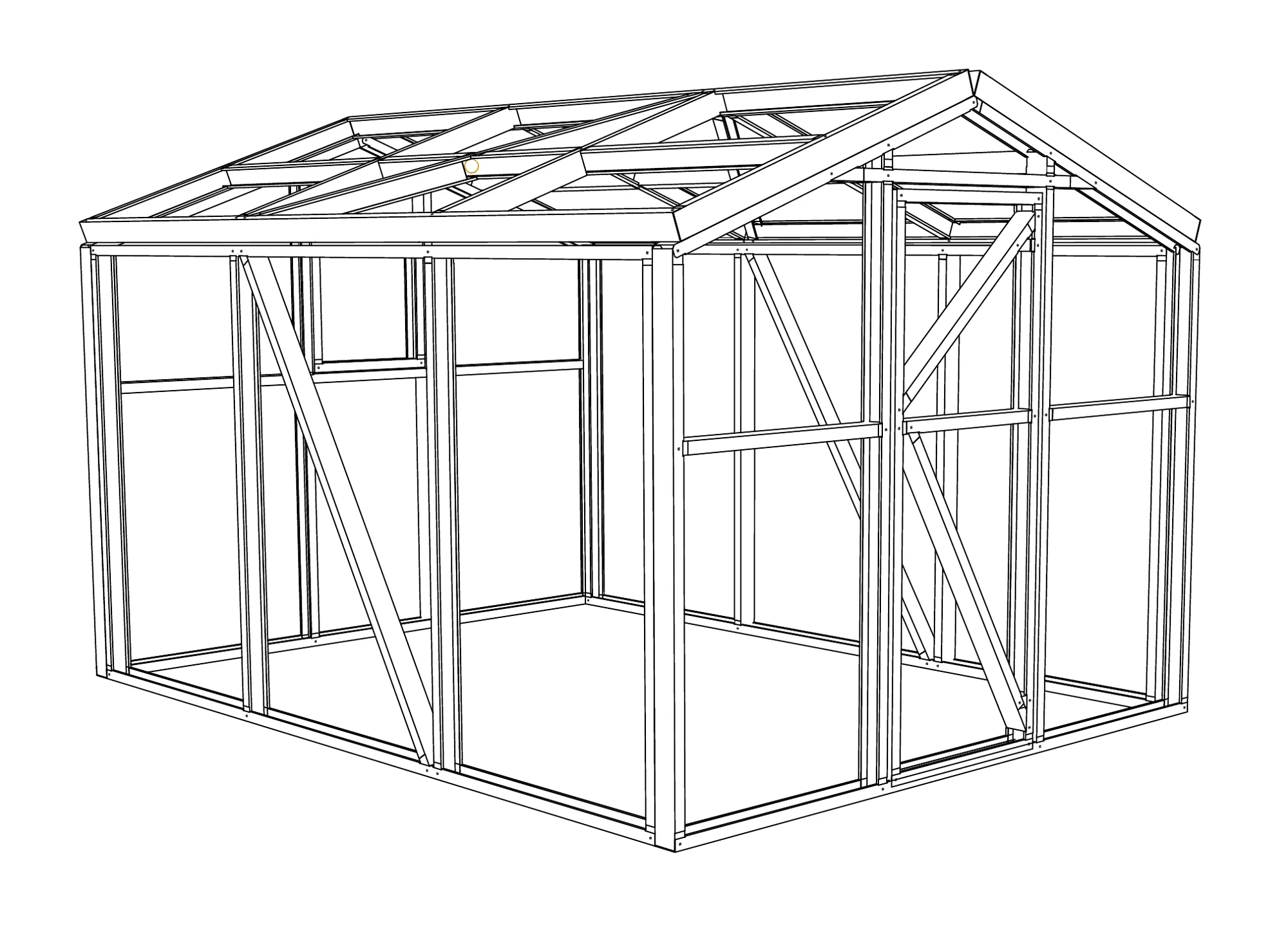

The Glasshouse Steel Frame Kitset 2.7m x 3.6m A is a compact 9.72m² steel framing kit with wall frames, roof frames and the fixings to join them — a steel-framed shell for a backyard glasshouse, with cladding, roofing and glazing available separately.

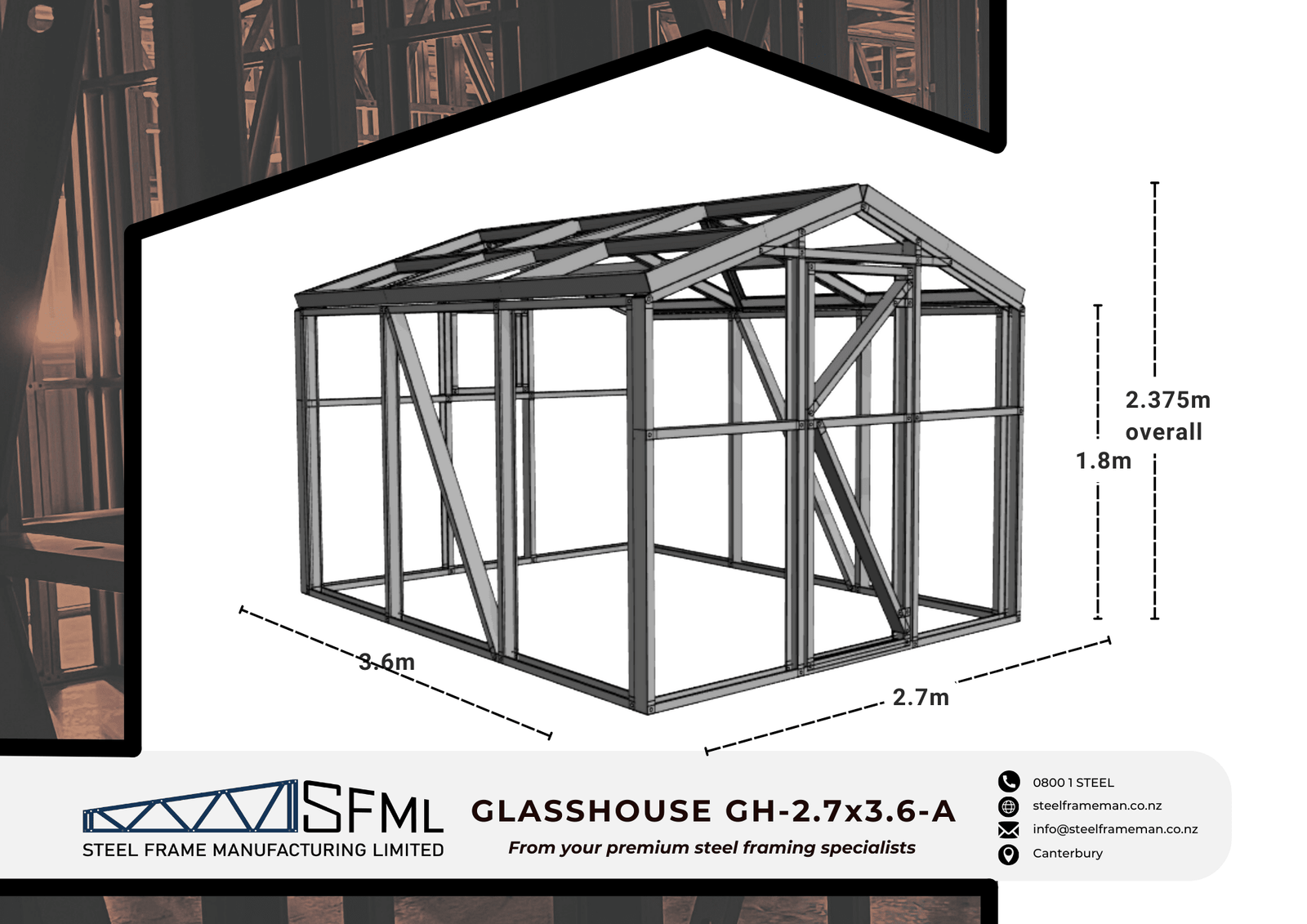

At a glance: The GH-2.7×3.6-A glasshouse steel frame kitset measures 2.7m x 3.6m (9.72m²). It has an 800mm wide x 2000mm high door opening, stud heights from 1.8m to 2.29m and a 20° roof pitch. Wind and snow zones are not specified on the plans, so confirm your site’s loading with our team before ordering.
This is a frame-only kitset: every wall and roof frame ships flat-packed and pre-cut to the dimensions in the plans. Glazing, cladding, roofing and foundations are not included.
What’s Included
| Wall frames | Included |
| Roof frames | Included |
| Assembly screws & frame-to-frame fixings | Included |
| Roof-to-wall strap | Included |
| Construction plans | Included |
| Door & door frame | Not included — the 800mm x 2000mm door opening is framed into the wall frames; the door and its frame are supplied by others |
| Cladding, roofing & glazing | Available at additional cost — ask our team about options |
| Foundation design & construction | Not included — slab or other foundation designed and built by others |
| Bracing design | Not included — ask our team if you need it |
Specifications
| Product code | GH-2.7×3.6-A |
| Footprint | 2.7m x 3.6m (9.72m²) |
| Stud height | 1.8m – 2.29m |
| Overall height | 2.375m |
| Roof pitch | 20° |
| Stud spacing | 1220mm centres |
| Door opening | 800mm W x 2000mm H (frame opening size) |
| Wind & snow zone | Not specified on the plans — confirm for your site |
| Bracing | No bracing design allowance in this price |
Site Suitability & Design Notes
The plans for this kitset do not carry a wind, snow or earthquake zone, and the design parameters ask the client to confirm all parameters where full building consent plans have not been supplied. Confirm your site’s wind and snow zones and ground conditions with our team before ordering, and tell us promptly about any change once your quote is accepted.
Studs are set at 1220mm centres — confirm this suits your chosen glazing or cladding before ordering. There is no bracing design allowance in the price, and no allowance for architectural design or detailing. All window and door opening sizes on the plans are frame opening sizes, and SFML supplies frame-to-frame connections only unless other arrangements are made.
Through our in-house design team we can handle your building consent documentation and amend existing plans to suit steel framing, and each frame can be customised to fit your own requirements.

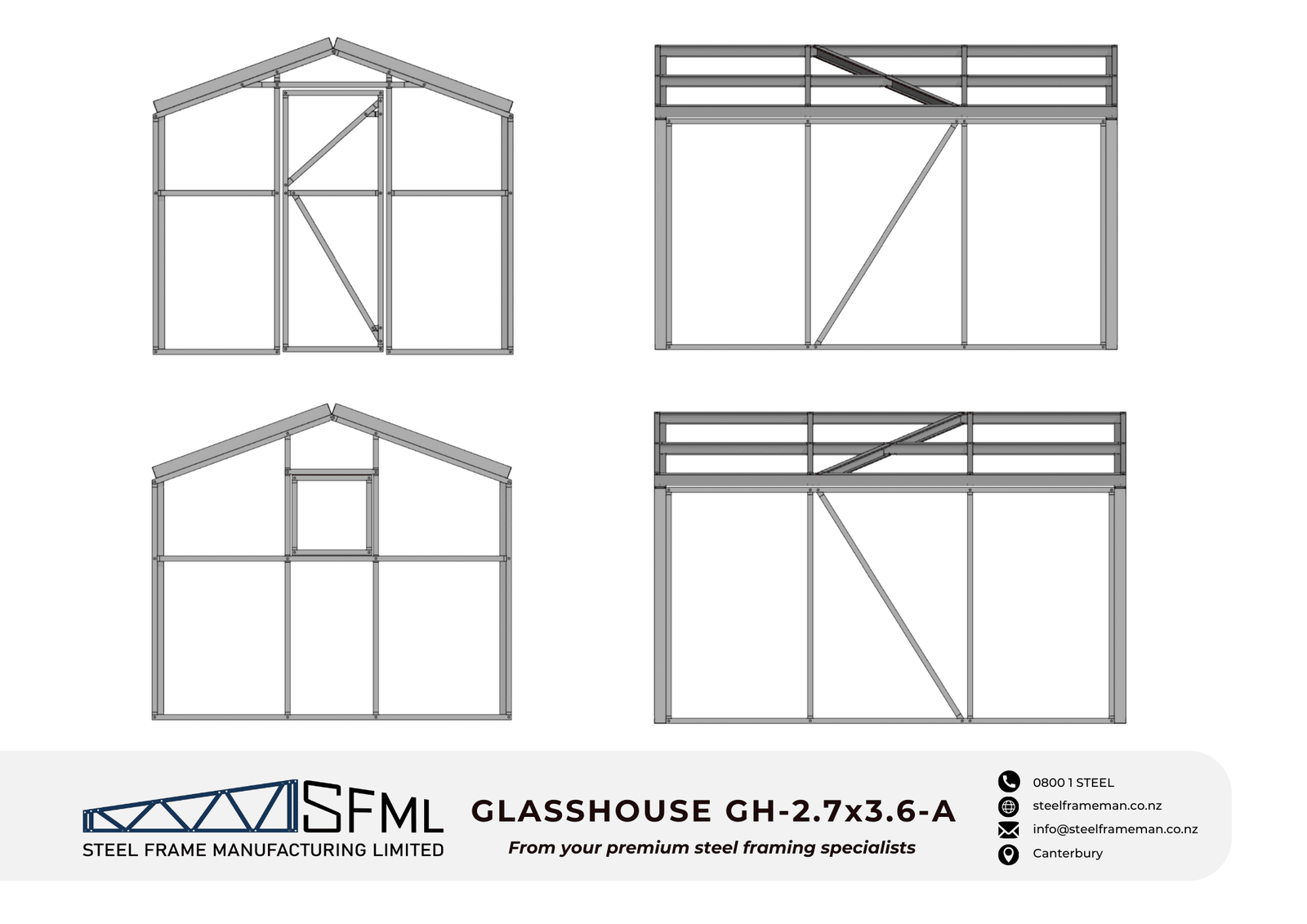

Construction Plans

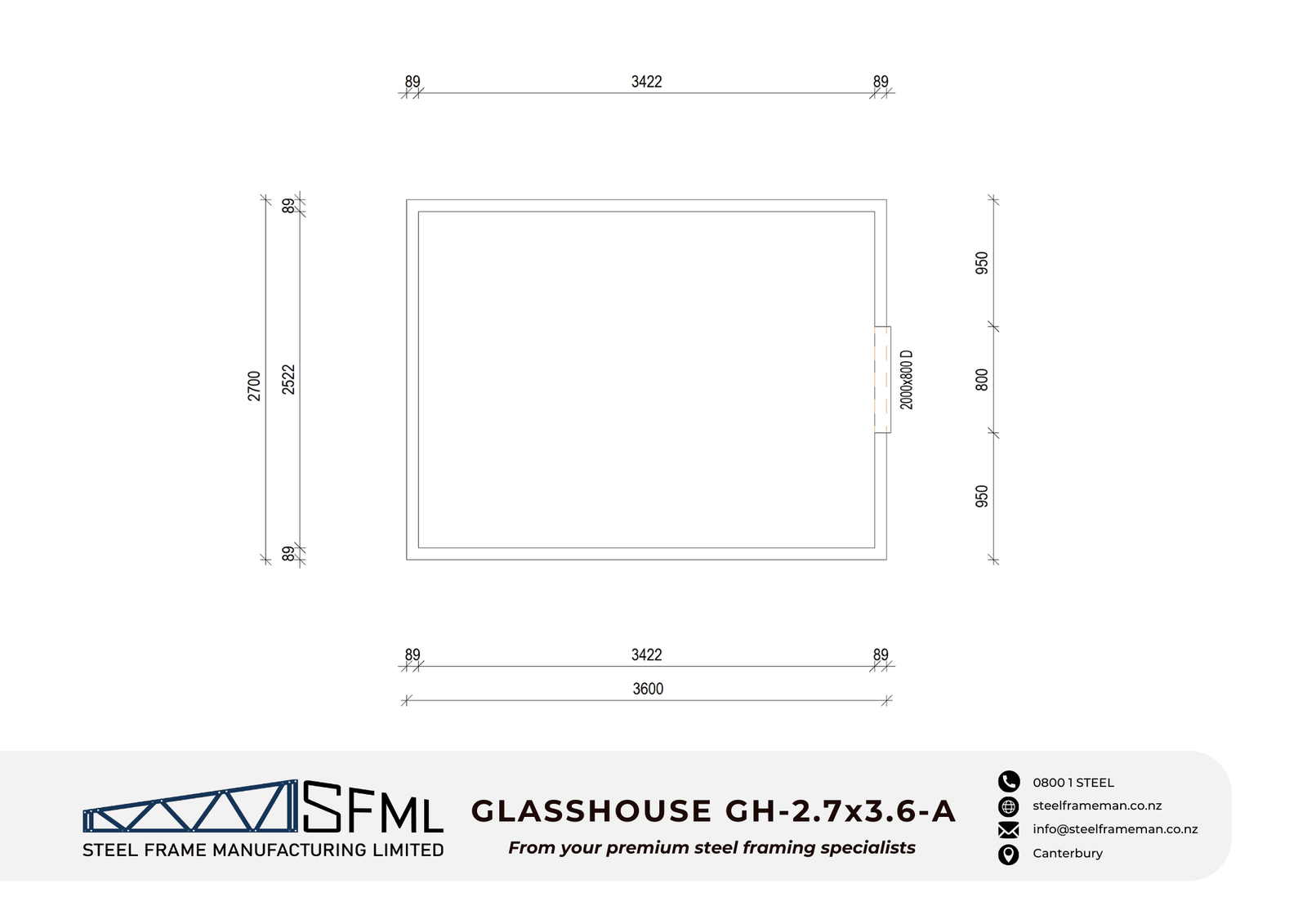

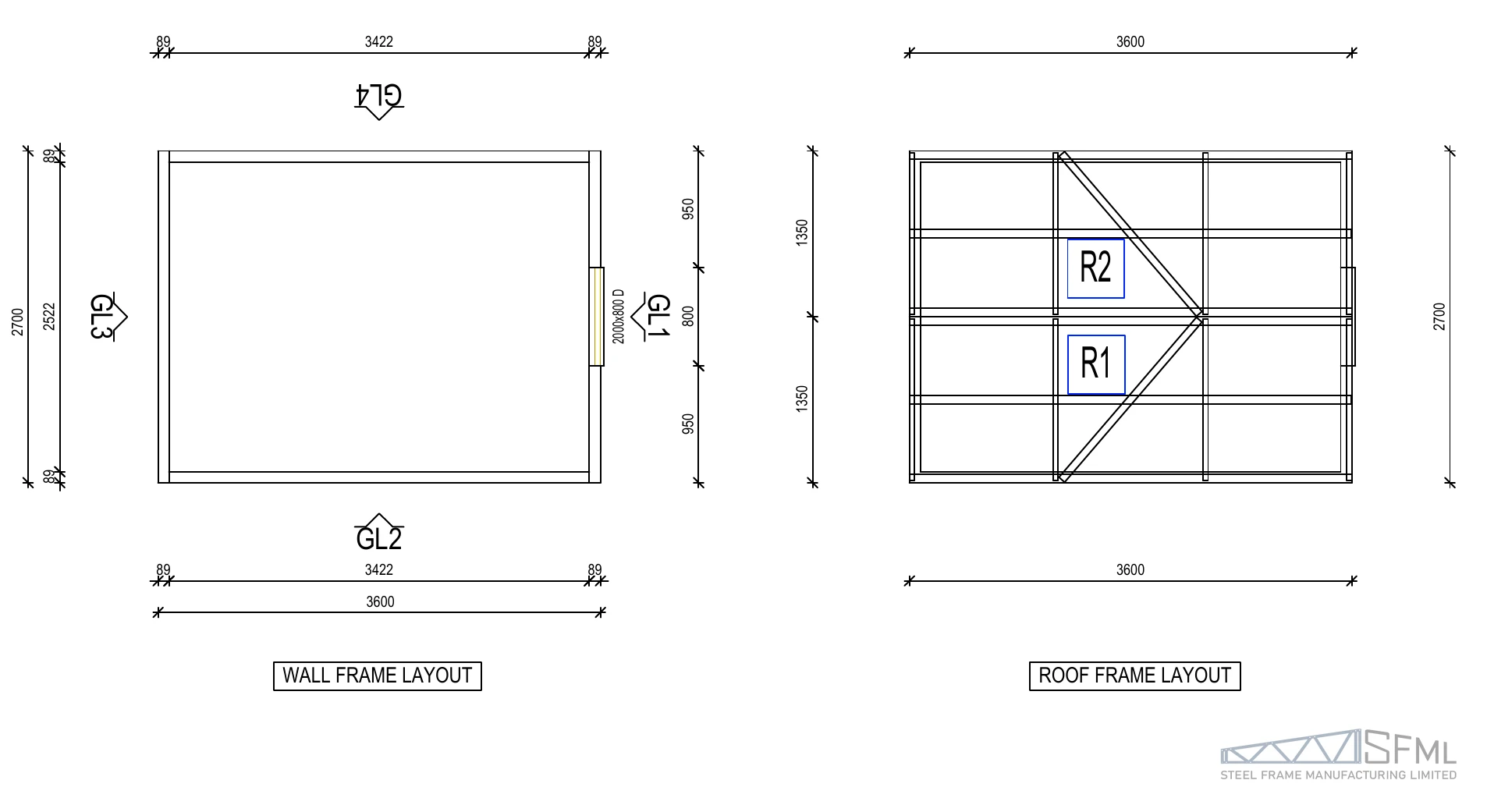

Dimensioned wall and roof frame layout plans for the GH-2.7×3.6-A are available to download: GH-2.7×3.6-A Construction Plans (PDF).
Delivery & Installation
Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to assemble on site. Pre-assembled frames are available at an additional freight cost, with frame-to-frame fixings provided. Freight costs are determined by your delivery location.
Pricing
The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.
Frequently Asked Questions
What size is the GH-2.7×3.6-A glasshouse kitset?

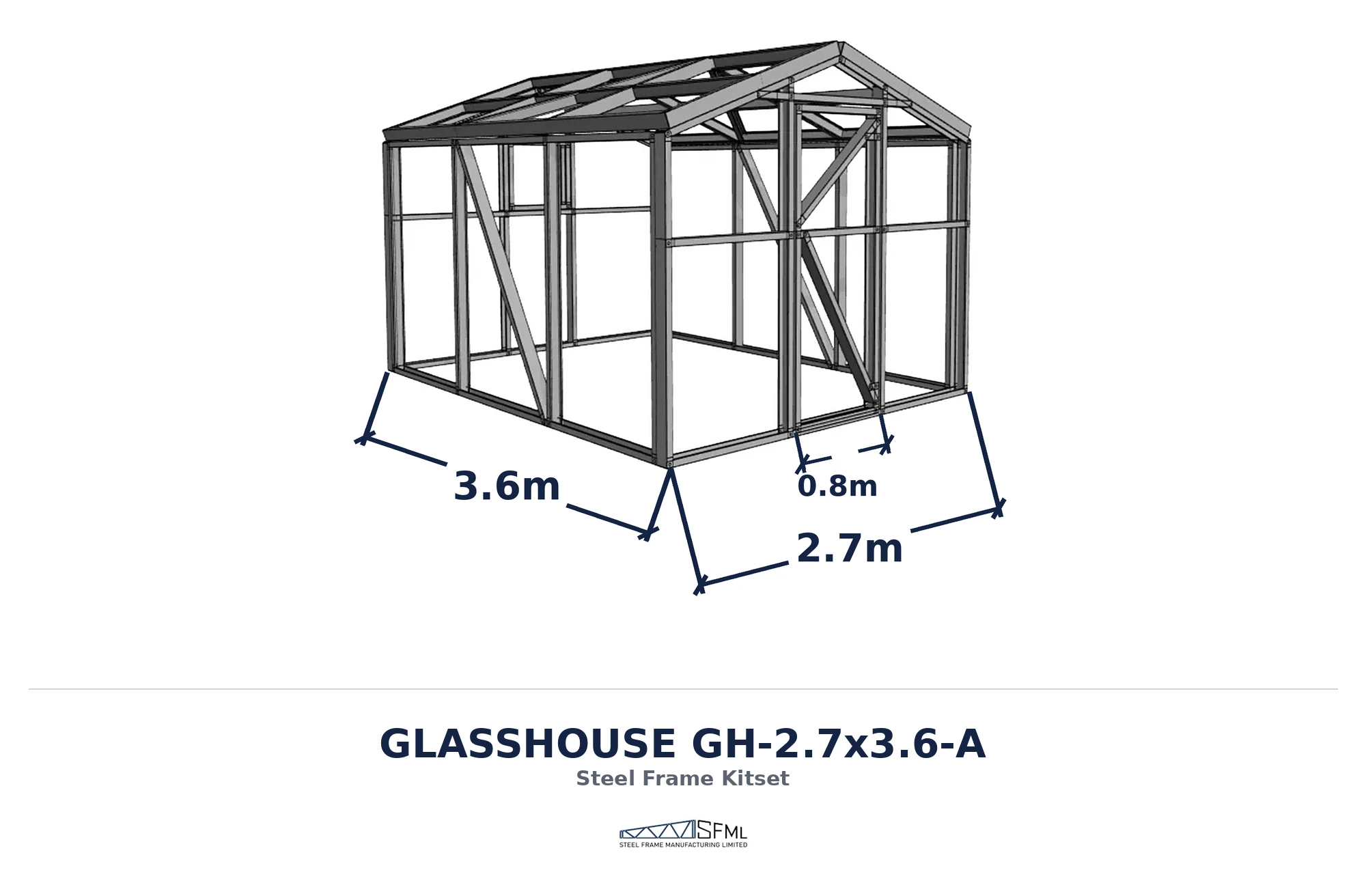

The GH-2.7×3.6-A measures 2.7m wide by 3.6m long, a 9.72m² footprint. Stud heights run from 1.8m to 2.29m, with an overall height of 2.375m under a 20° roof pitch.
What’s included in the kit?
The kit includes wall frames, roof frames, assembly screws and frame-to-frame fixings, a roof-to-wall strap and construction plans. Doors and door frames are not included. Cladding, roofing and glazing are available at additional cost, and foundations are not included — see the What’s Included table above.
How big is the door opening?
The door frame opening is 800mm wide by 2000mm high, positioned on the short (2.7m) wall. The door and its frame are not included — the opening is framed into the wall frames and the door is supplied by others. All opening sizes on the plans are frame opening sizes.
What wind and snow loads is it designed for?
The plans for the GH-2.7×3.6-A do not specify a wind, snow or earthquake zone, so the design parameters must be confirmed for your site. Call 0800 178 335 and our team will confirm what suits your location before you order.
Will it suit my glazing?
The studs are set at 1220mm centres, and the client should confirm this suits their chosen glazing or cladding. Tell us your glazing product before you order and we can check the layout against it.
How is it delivered?
Frames are manufactured at our Waimate factory and are available for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to assemble on site. Pre-assembled frames are available at an additional freight cost.
Original price was: $1,616.90.$1,536.10Current price is: $1,536.10. incl. GST
