Garage Steel Frame Kitset 4.8m x 5.8m A (27.84sqm)

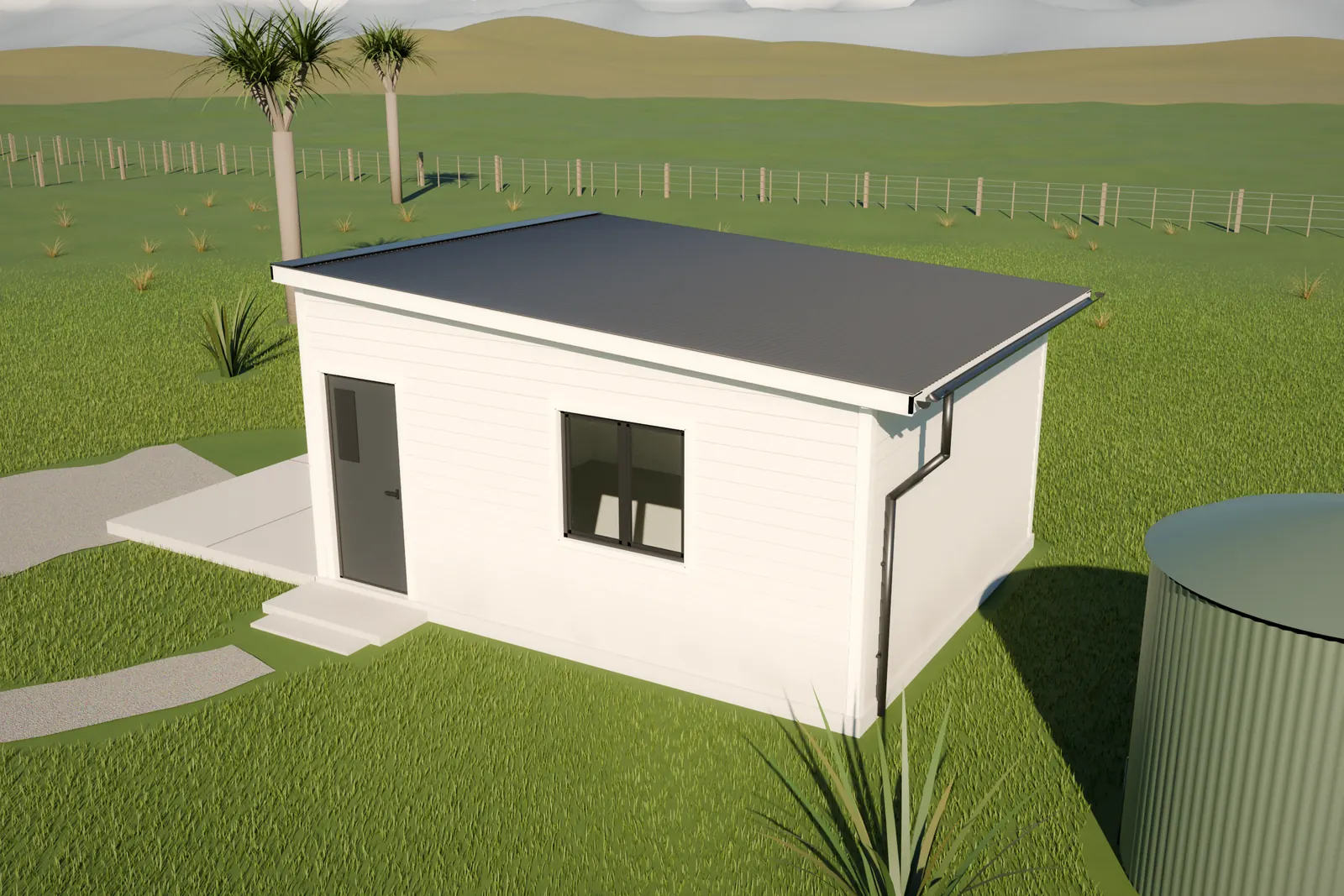

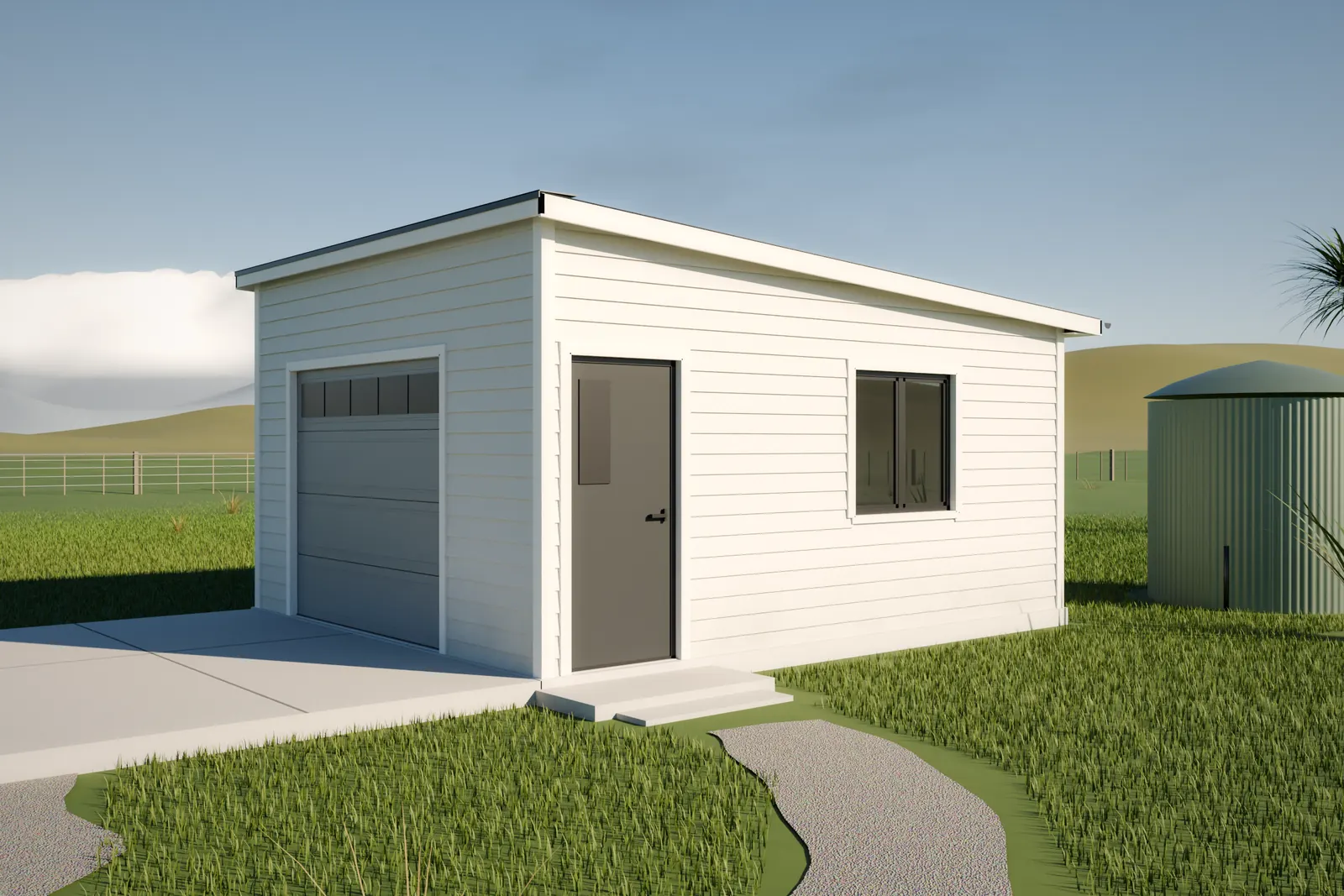

The Garage Steel Frame Kitset 4.8m x 5.8m A is a 27.84m² steel framing kit for a single-car garage, workshop or general storage building. Wall frames and webbed rafters are supplied, with a 2.7m wide garage door opening and a 4° mono-pitch roof; cladding, roofing and floor frames are available separately.

At a glance: The GA-4.8×5.8-A garage steel frame kitset measures 4.8m x 5.8m (27.84m²) with stud heights from 2420mm to 2820mm under a 4° mono-pitch roof. It has a 2700mm wide x 2200mm high garage door opening, a 915mm wide x 2200mm high door opening and a 1220mm x 1220mm window opening, with 9 webbed rafters at 600mm centres. It is designed for wind zones up to Very High and snow loads of 1.5kPa. Regular price from $5,857.24 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.

Design basis: Standard design suits wind zones up to Very High and snow loads up to 1.5 kPa (NASH Standard Part 2, 2019). Tell us your site’s wind and snow zones when you order and we’ll confirm the design suits your site, or adjust it. An engineer’s PS1 is not included; it is available at additional cost, or you can use your own engineer. Foundations and consent are by others.

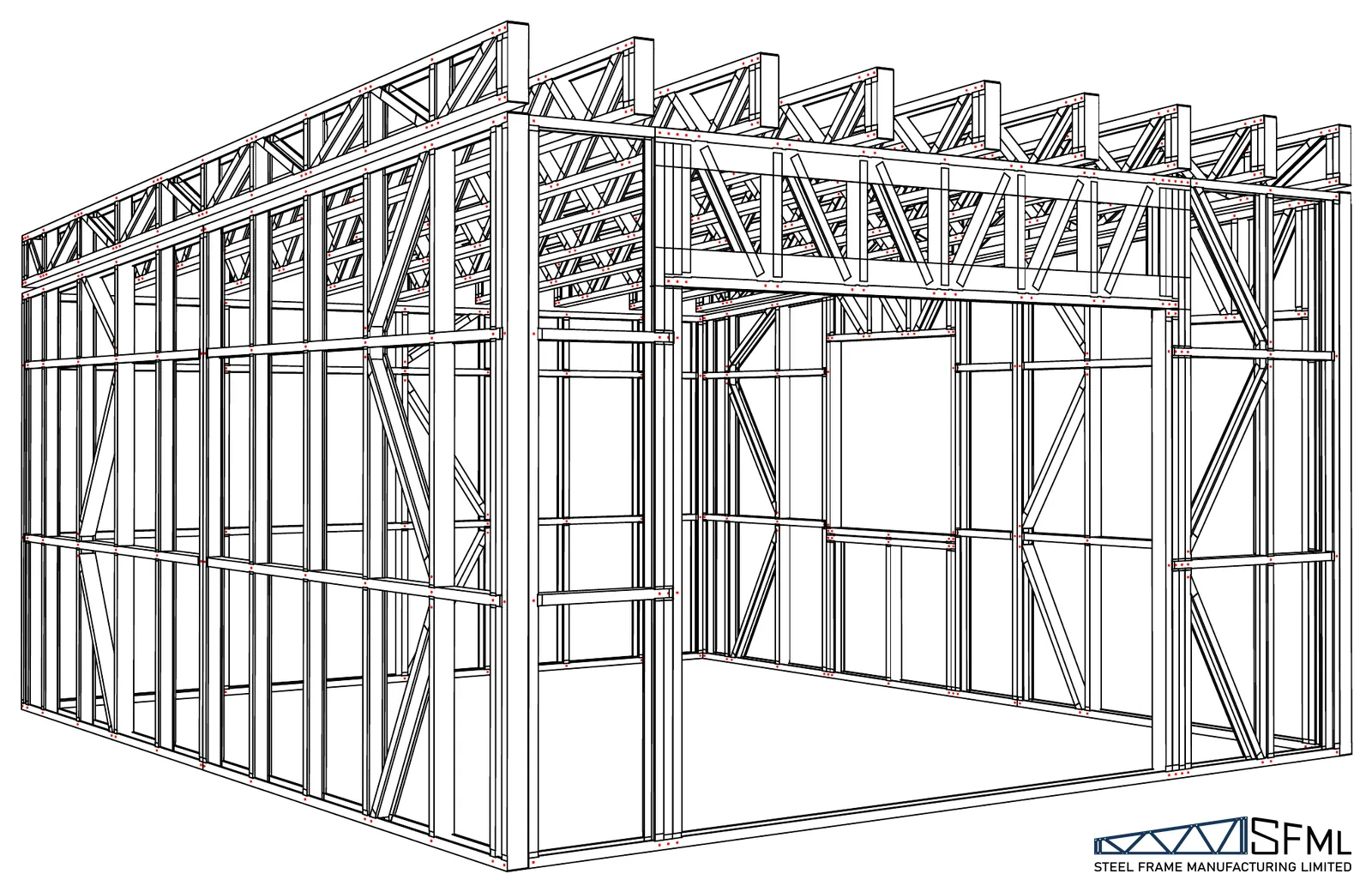

This is a frame-only kitset: every wall frame and rafter is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. The garage door, doors, windows, cladding, roofing, floor frames and foundations are not included.

What’s Included

Specifications

Site Suitability & Design Notes

Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing is designed for IBS RigidRAP-XT sheet bracing to the walls and strap bracing to the roof; the bracing products themselves are supplied by others, and alternative bracing products require specific engineering design at additional cost.

This kitset supplies the steel structure of a garage only. Whether your project needs building consent depends on your site and council, so check with your local council before you build. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.

Delivery & Installation

Lead time: Typically under 10 working days from order confirmation, if you approve plans and pay invoices promptly. Your quote confirms the timing for your order.

Delivery: Frames are made at our factory in Waimate and collected by Booths Logistics within 1 working day of your final payment. You can also collect from our Waimate factory.

• Flat pack: delivered free to your nearest Booths depot as a flat bundle pack for you to collect and assemble on site.
• Pre-assembled: ready to stand, with frame-to-frame fixings provided. Freight is extra and quoted for your address. South Island delivery is scheduled within 10 to 14 days of your second invoice.
• North Island: flat pack is delivered free to your nearest Booths depot. For assembled frames, please contact us before placing your order.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Construction Plans

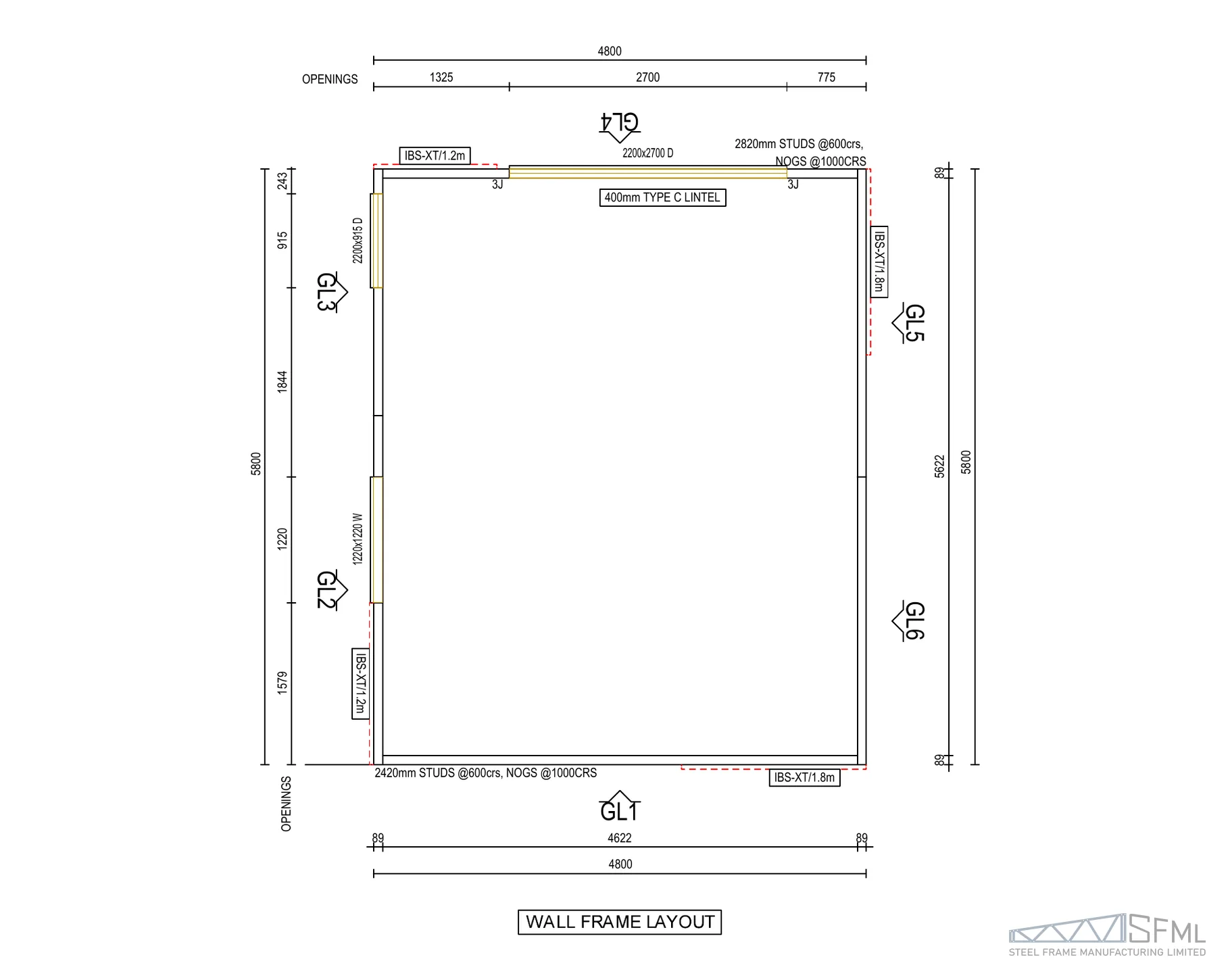

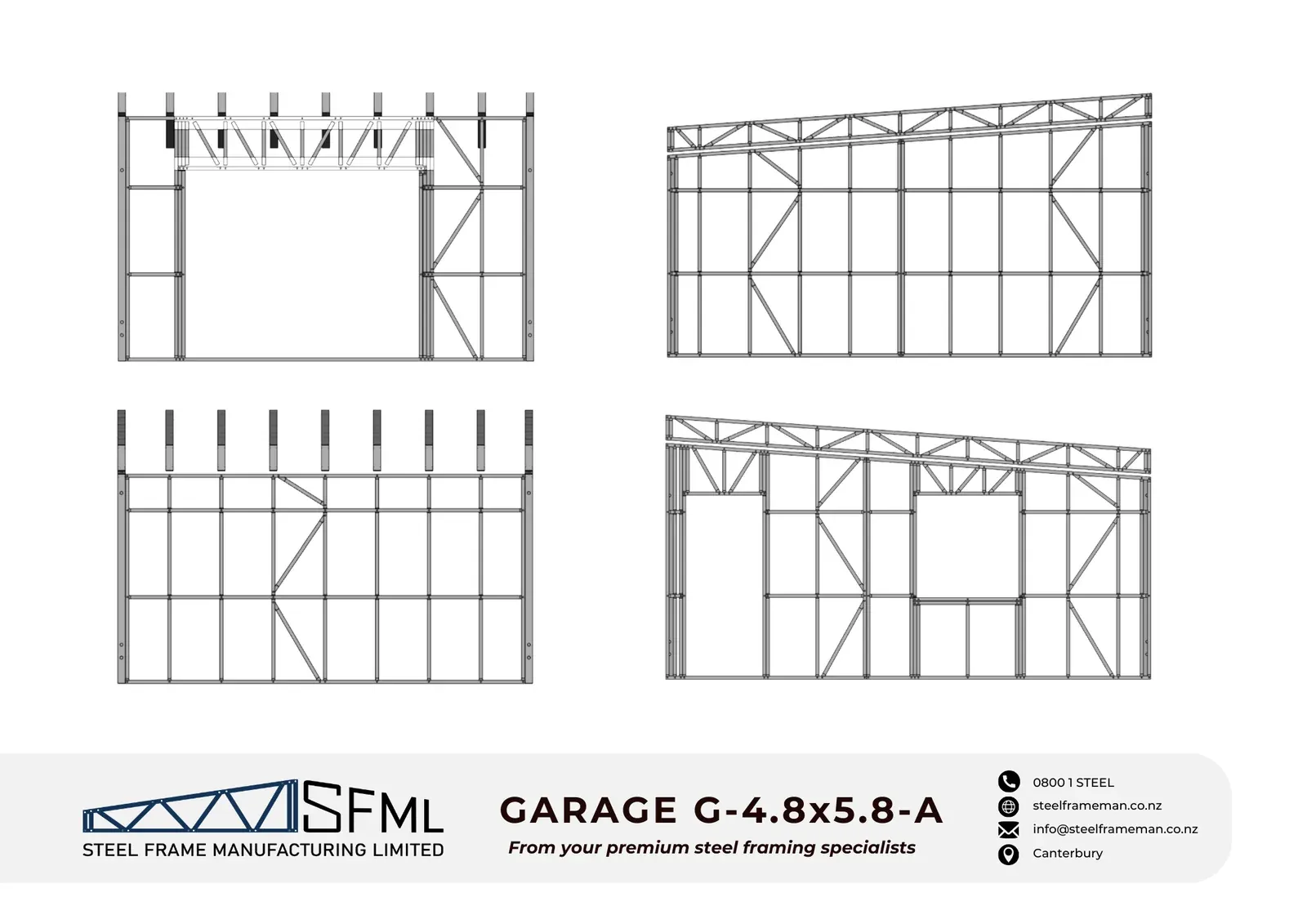

The construction plans for the GA-4.8×5.8-A garage steel frame kitset show the wall and roof frame layouts, openings and dimensions, so you can check the frame against your site before you order. They are for the standard kitset and are not site-specific; building consent documentation is available through our design team on request.

• Download the GA-4.8×5.8-A construction plans (PDF)

Frequently Asked Questions

What size is the GA-4.8×5.8-A garage kitset?

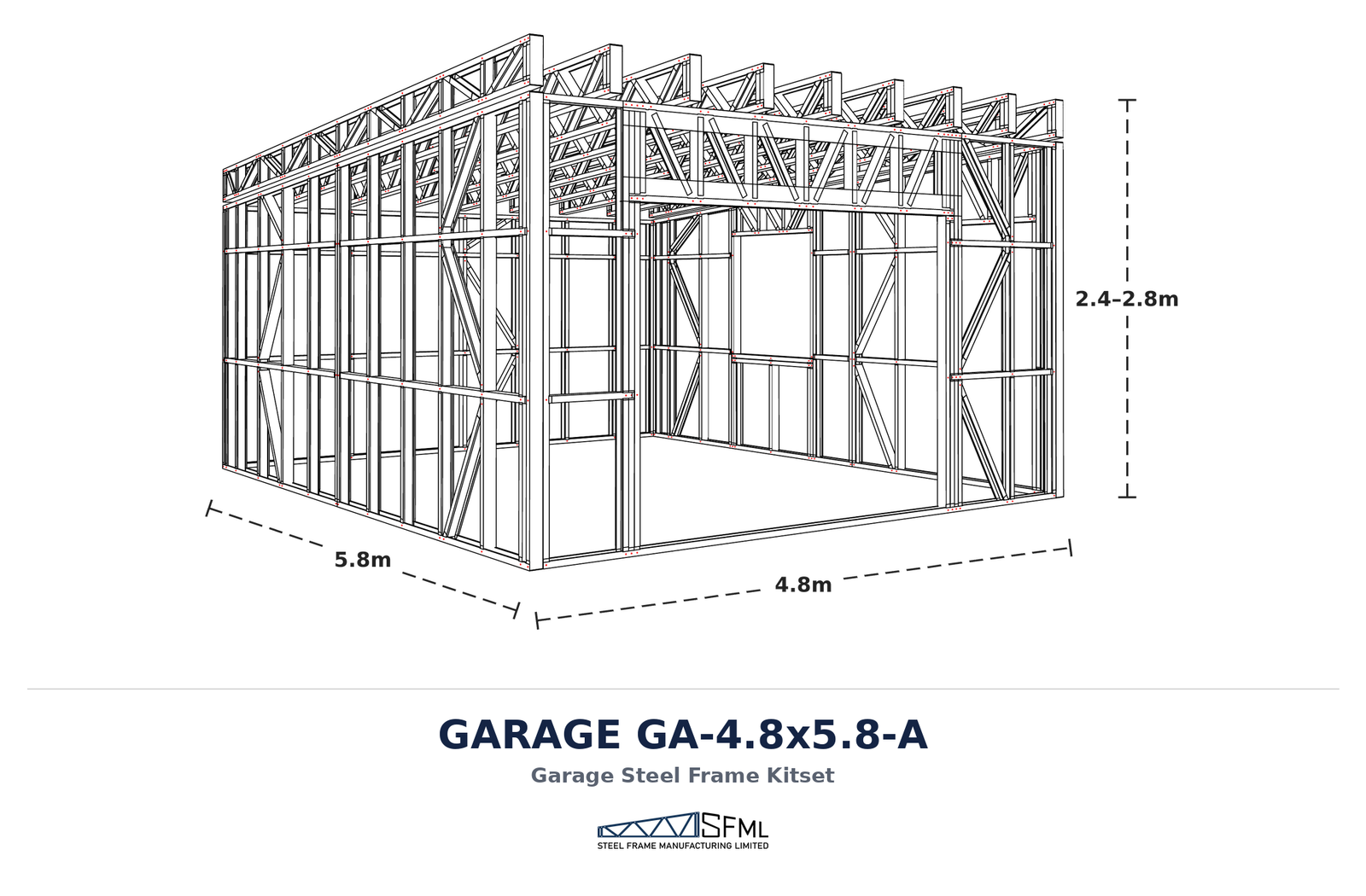

The GA-4.8×5.8-A measures 4.8m wide by 5.8m long, a 27.84m² footprint. Stud heights run from 2420mm to 2820mm under a 4° mono-pitch roof.

What’s included in the kit?

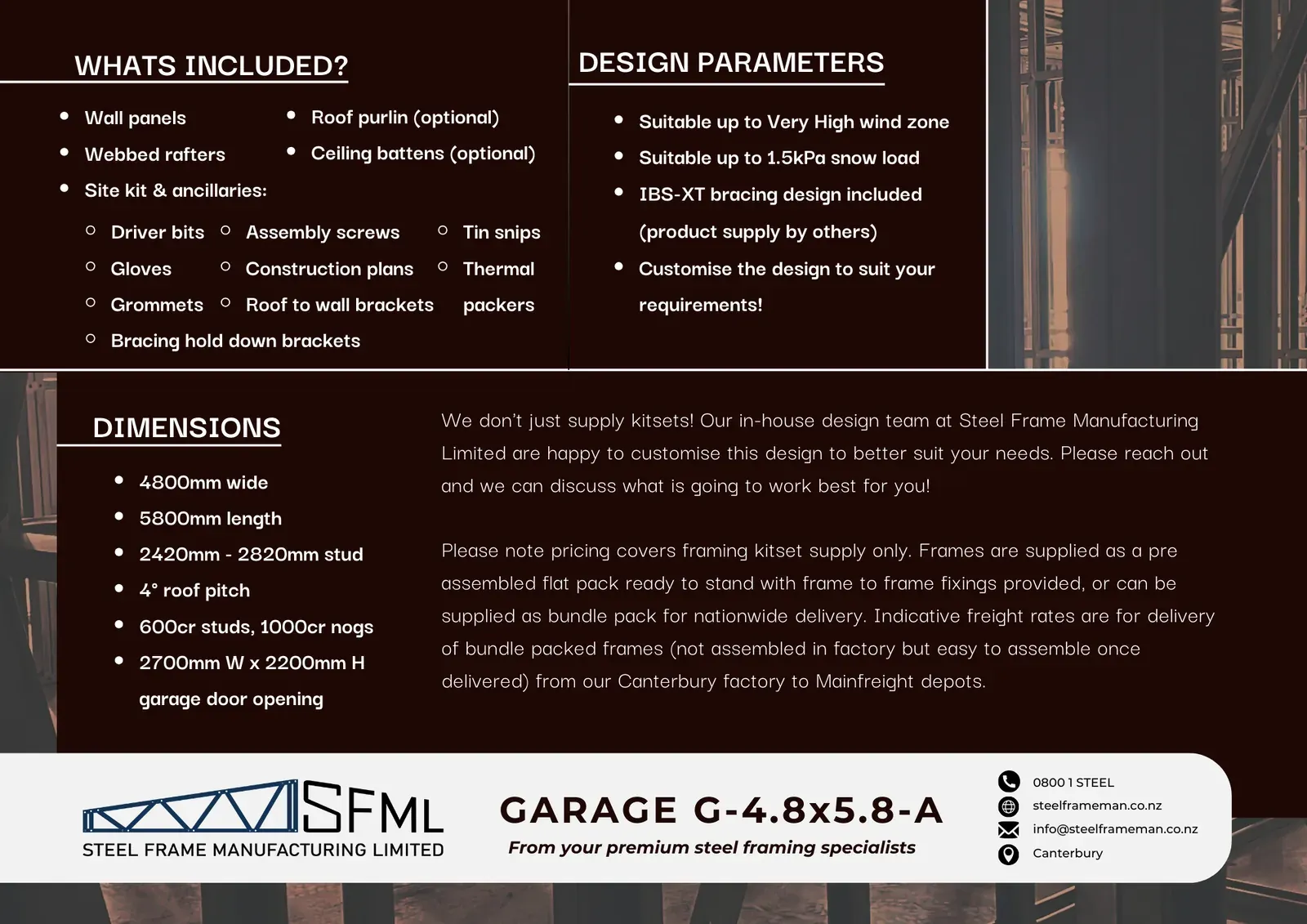

The kit includes 6 wall frames, 9 webbed rafters, roof-to-wall brackets and packers, wall-to-slab hold-down brackets, a site kit of ancillaries and construction plans. The garage door, doors, windows, cladding, roofing and foundations are not included — see the What’s Included table above.

How big is the garage door opening?

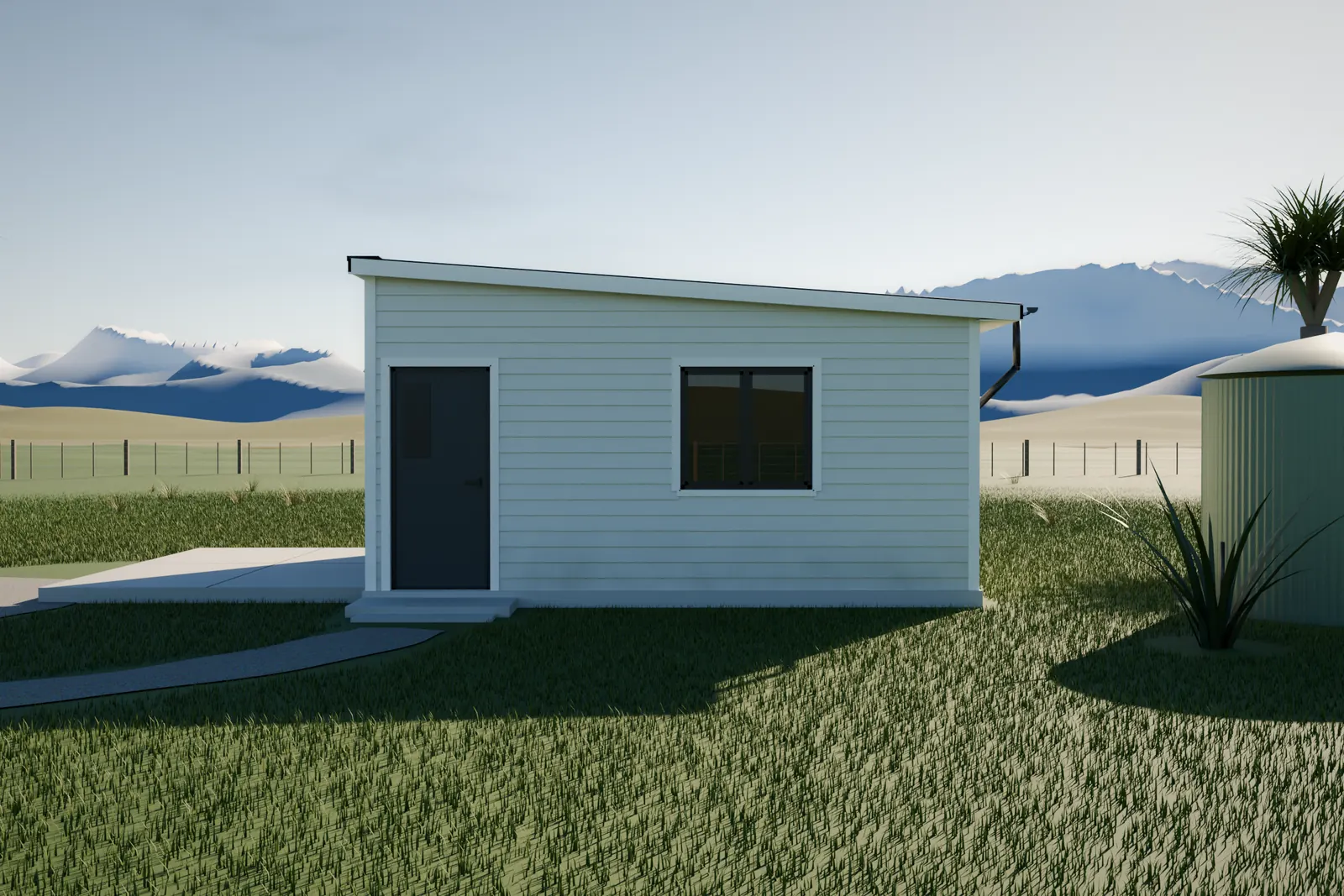

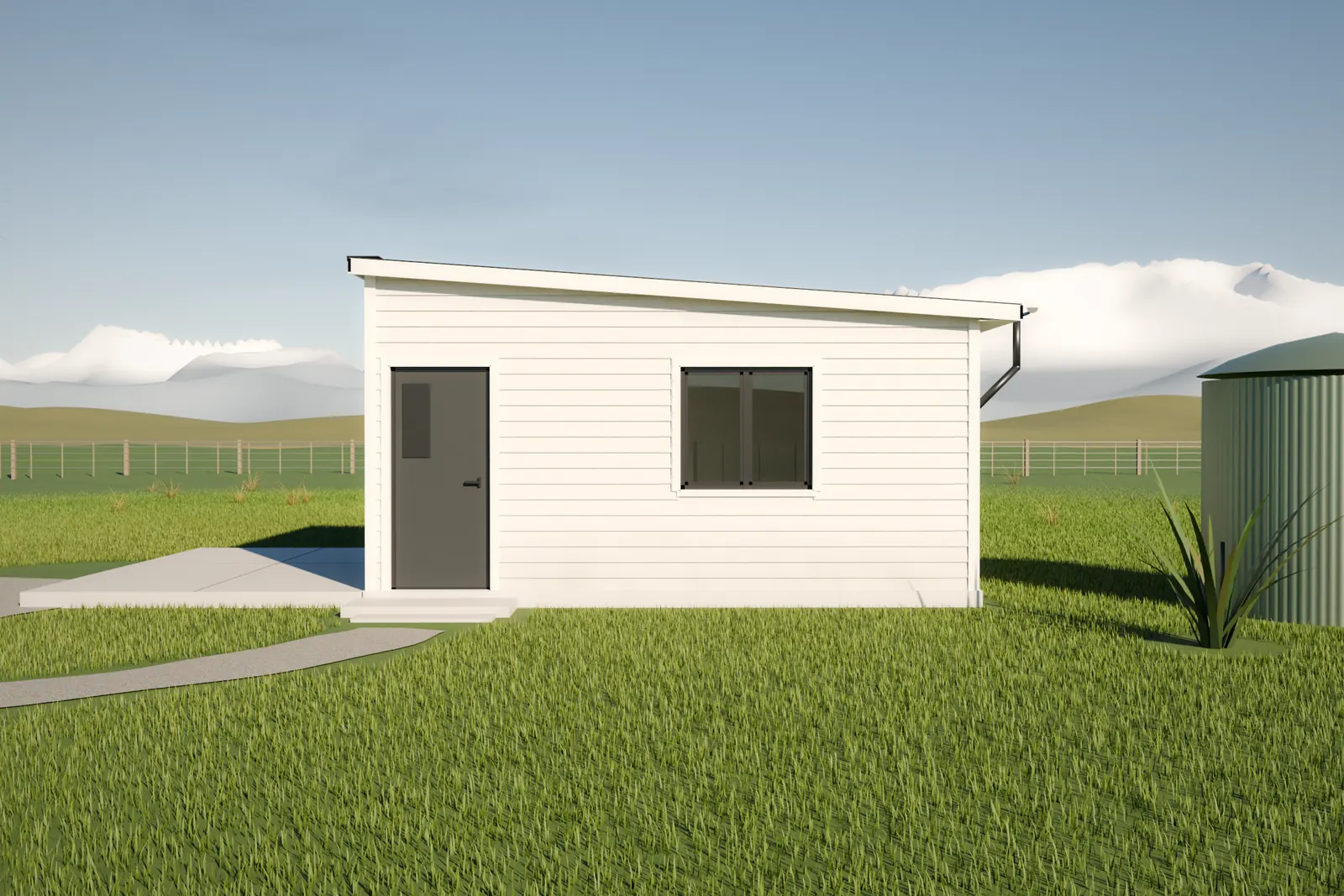

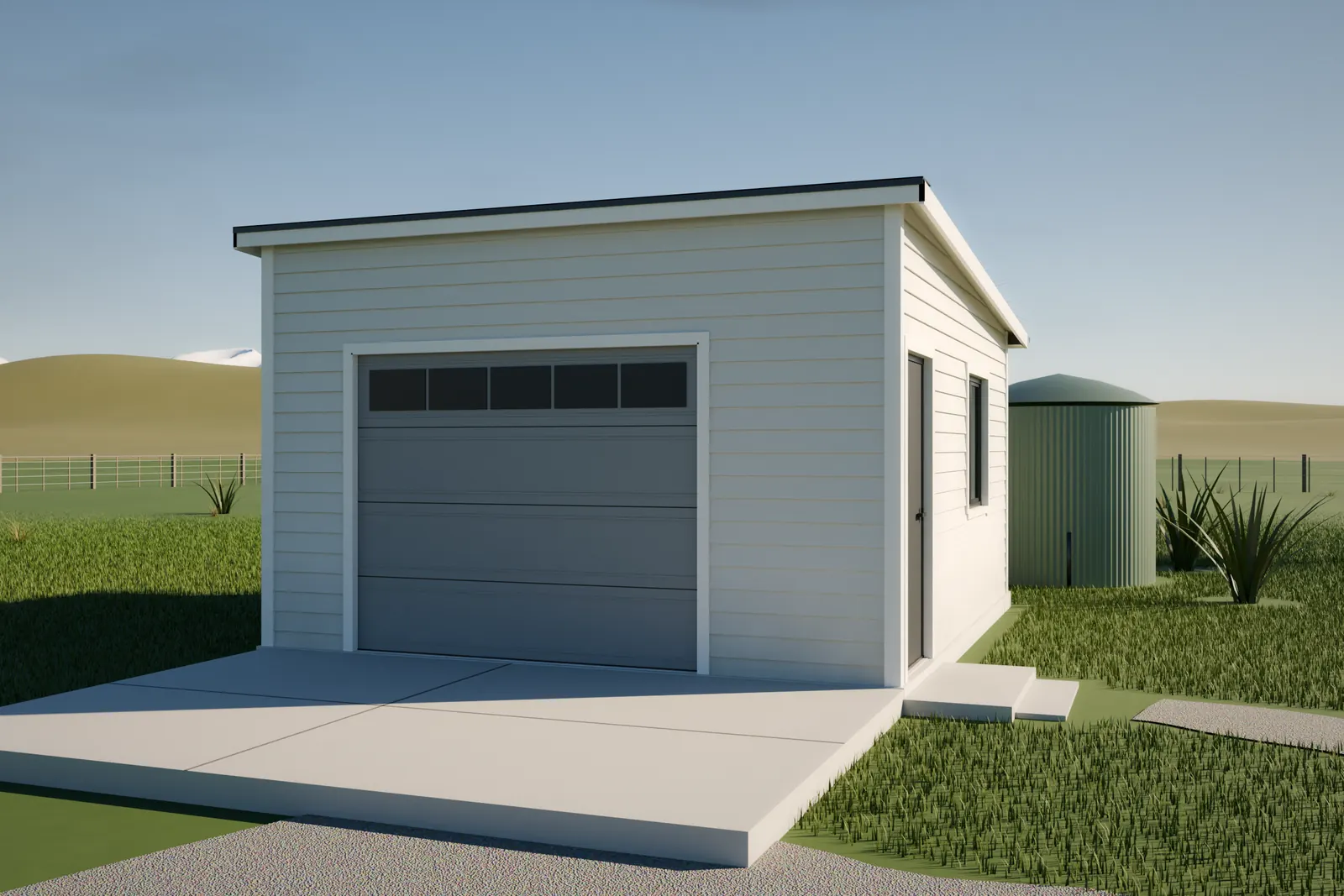

The framed opening is 2700mm wide by 2200mm high with a 400mm Type C lintel, ready for your garage door. There is also a 915mm by 2200mm door opening and a 1220mm by 1220mm window opening. The doors and window themselves are supplied by others.

What wind and snow loads is it designed for?

The design is suitable up to Very High wind zone and snow loads of 1.5kPa, with IBS RigidRAP-XT sheet bracing to the walls and strap bracing to the roof designed in. Confirm your site conditions with our team before ordering.

Is a floor or foundation included?

No. The GA-4.8×5.8-A is designed for a slab foundation designed by others, or by SFML on request. Floor frames are an optional supply at additional cost, and neither is included in the kit price.

Do I need building consent for this garage?

Most councils require building consent for a structure of this size, but it depends on your site and council. Our in-house design team can prepare building consent documentation on request.

Can you deliver the GA-4.8×5.8-A to my site?

Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
