Glass House Steel Frame Kitset 2.7m x 4.5m A (12.15sqm)

The Glass House Steel Frame Kitset 2.7m x 4.5m A is a frame-only steel kitset combining a glasshouse and a shed under one 12.15m² roof — wall frames, roof frames and site hardware are supplied, with cladding, roofing, glazing and doors available separately. The footprint is a single rectangular building split into two zones (not an L-shape): a 600mm-stud shed section and a wider-spaced 900mm-stud glasshouse section, sharing a 3° pitched roof. Whether you need a standalone glasshouse, a small shed, or both in one compact footprint, this glass house steel frame kitset 2.7m x 4.5m gives you a steel-framed shell to build from.

This is one of our predesigned kitset layouts. If you’d like something tailored to your own site or requirements, our team can customise this design to suit you — just get in touch.

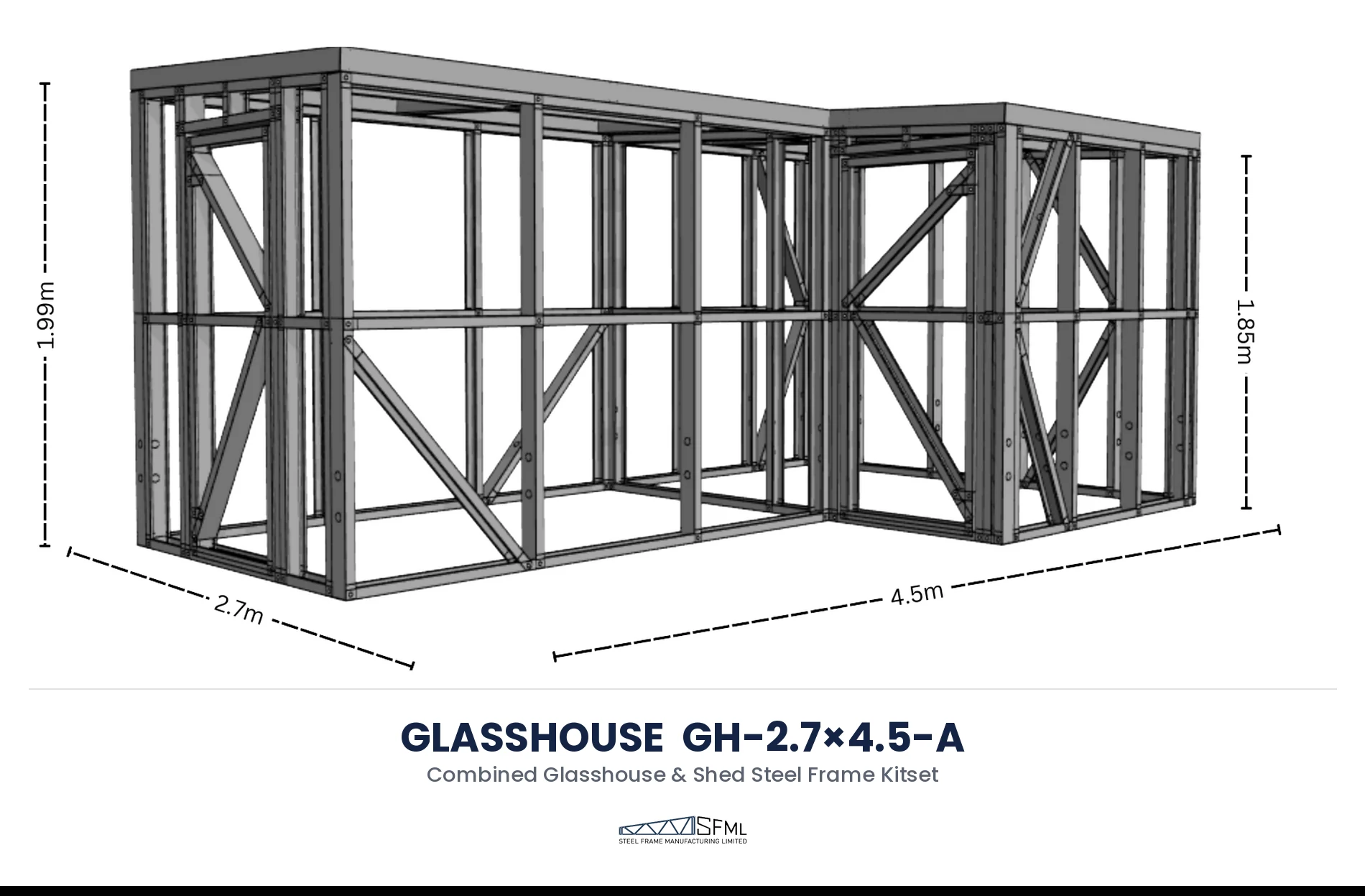

At a glance: The Glass House GH-2.7×4.5-A steel frame kitset measures 2.7m x 4.5m (12.15m²), combining a glasshouse and a shed under one roof. The GH-2.7×4.5-A has a 700mm wide x 1770mm high glasshouse door and an 800mm wide x 1770mm high shed door. It uses a low 3° pitched roof, which requires a trapezoid corrugated roofing profile.

What’s Included

Specifications

Site Suitability & Design Limits

This glasshouse/shed combo kitset is supplied frame-only, and its design is explicitly outside the scope of NASH SP2:2019 — its structure has not been produced or verified under that standard, unlike SFML’s standard NASH-compliant kitset range. No bracing design and no architectural design or detailing is included, and no engineer’s PS1 is supplied unless separately arranged. The 3° roof pitch is below what typical corrugated roofing can handle, so it requires a trapezoid corrugated profile — permitted down to 3° under NZBC E2 clause 8.4.5 — rather than standard corrugate, so factor this into your roofing and cladding selection.

Foundation design is not included in this price — it’s designed to suit a slab or timber joist foundation, and SFML can quote foundation design separately on request or it can be arranged through your own engineer or builder. Confirm the stud, nog and rafter spacings above are suitable for your own site and loading requirements before ordering, and note SFML supplies frame-to-frame connections only unless alternative fixing arrangements are agreed in advance.

Delivery & Installation

Frames are manufactured at our factory in Waimate and pre-assembled into panels ready to stand. They can be delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to assemble on site, or supplied pre-assembled at an additional freight cost, with frame-to-frame fixings provided. Freight costs are determined by your delivery location.

Construction Plans

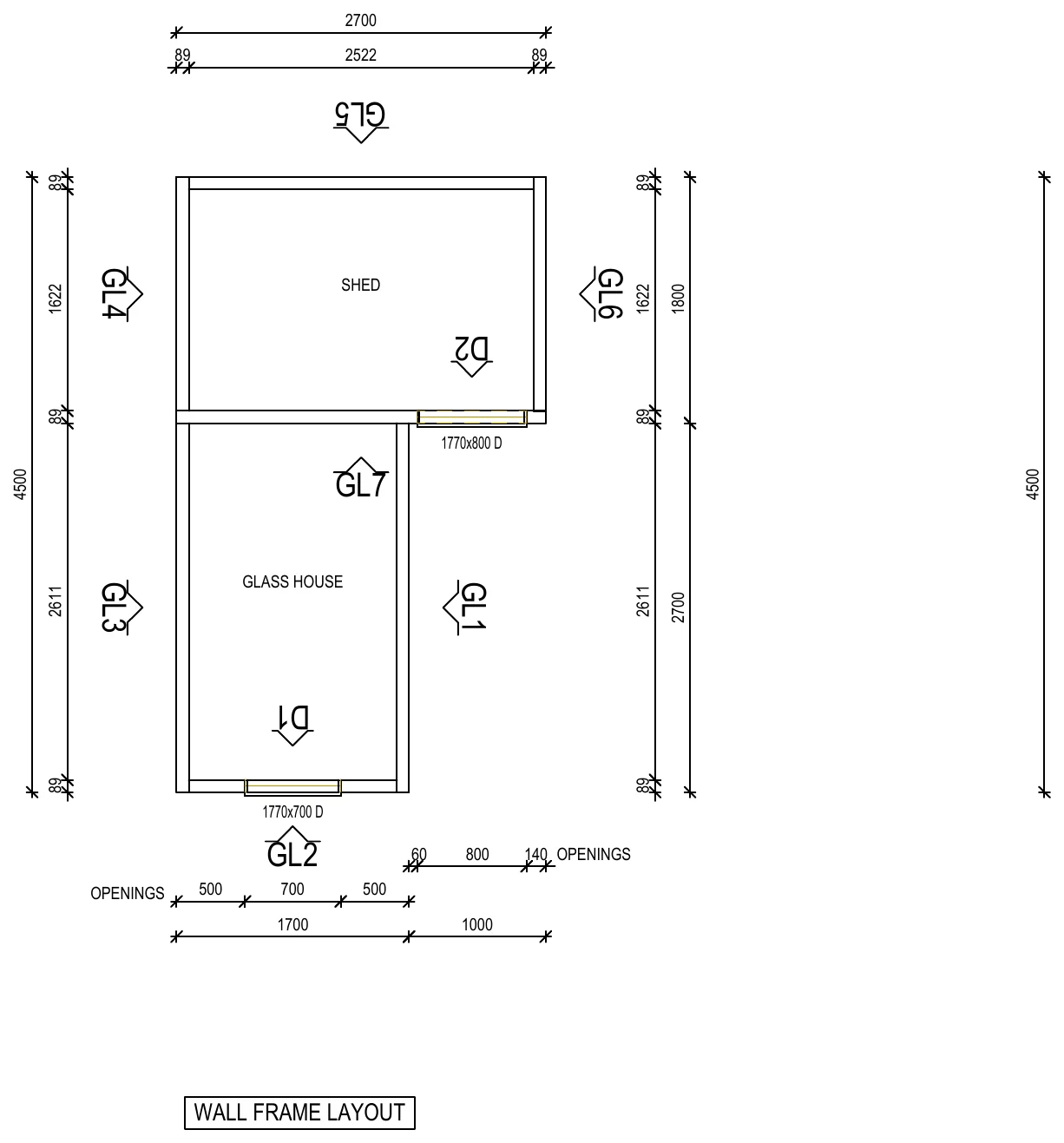

Dimensioned wall and roof frame layout plans for the GH-2.7×4.5-A are available to download: GH-2.7×4.5-A Construction Plans (PDF).

Pricing

Pricing shown above covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What’s included with the GH-2.7×4.5-A glass house/shed kitset?

This glass house steel frame kitset 2.7m x 4.5m base kit includes wall frames, roof frames, assembly screws, roof-to-wall strap and construction plans; door frames (one for each zone) are an optional add-on. Cladding, roofing, glazing and foundations are available at additional cost — see the Included/Excluded table above or request a full package quote.

Is this design compliant with NASH SP2:2019?

No — the GH-2.7×4.5-A is explicitly outside the scope of NASH SP2:2019, and no bracing design or architectural detailing is included in this price. If you need a NASH-compliant structure, talk to our team about engineering this design separately or ask about our standard kitset range.

What foundation does this kitset need?

It’s designed to suit a slab or timber-joist foundation. Foundation design and construction aren’t included in this price — we can quote this separately, or it can be arranged through your own engineer or builder.

Can the glasshouse and shed layout be customised?

Yes — our in-house design team can adjust the glasshouse/shed split, door positions and opening sizes to suit your site. Confirm any changes with your detailer before the frame goes into manufacture.

How is the GH-2.7×4.5-A delivered?

Frames are pre-assembled into panels at our Waimate factory and delivered free to your nearest Booths Logistics depot as a flat bundle pack, or supplied pre-assembled for an additional freight cost — ready to stand with frame-to-frame fixings provided.
