Tiny House Steel Frame Kitset 2.95m x 8.0m A (23.6sqm)

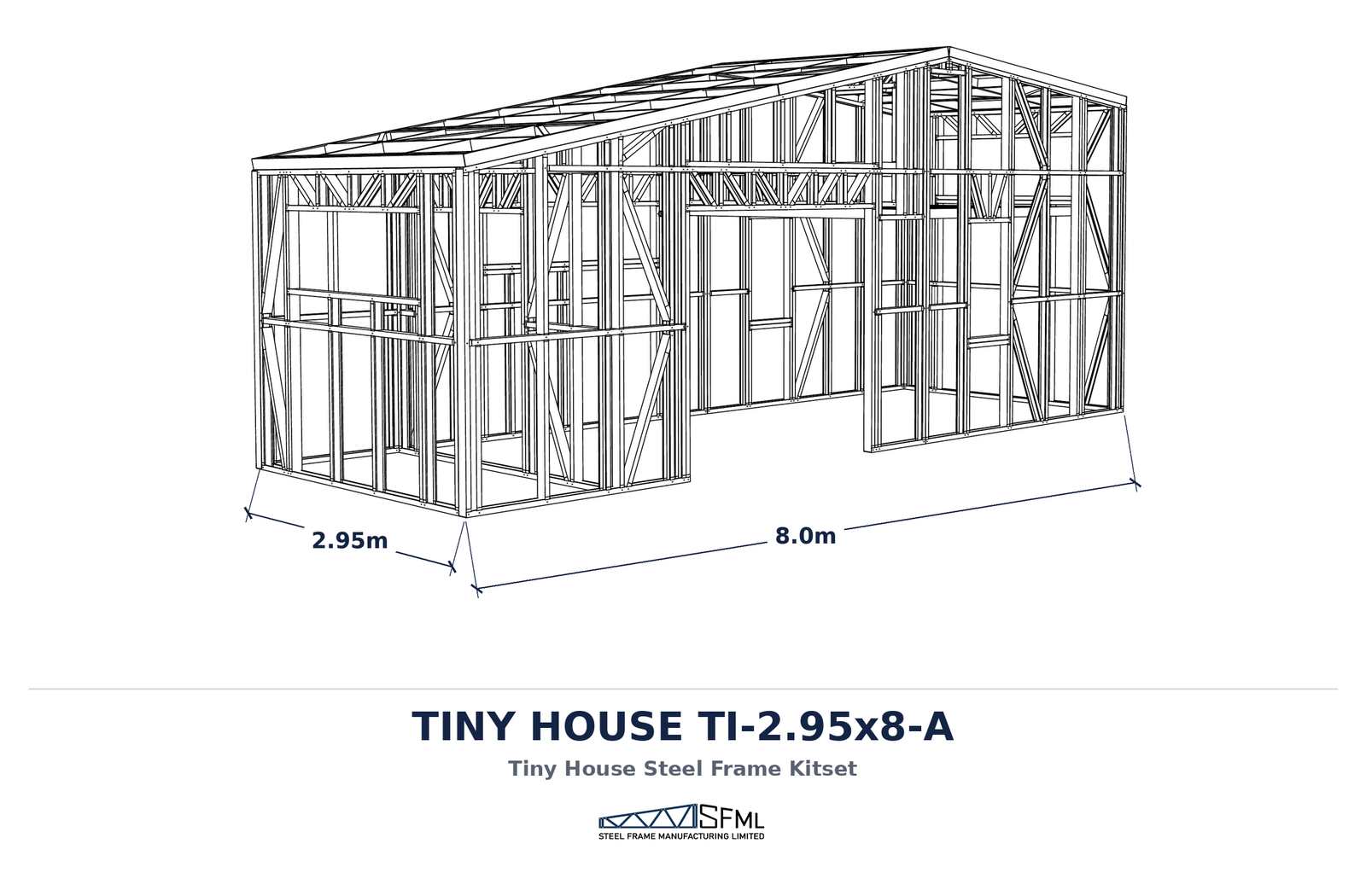

The Tiny House Steel Frame Kitset 2.95m x 8.0m A is a 23.6m² steel framing kit for a transportable, trailer-based tiny house. Wall frames, roof frames and mezzanine frames are supplied, with a raking roof (7° and 11° pitches) rising to 3445mm; cladding, roofing, trailer and fit-out are not included.

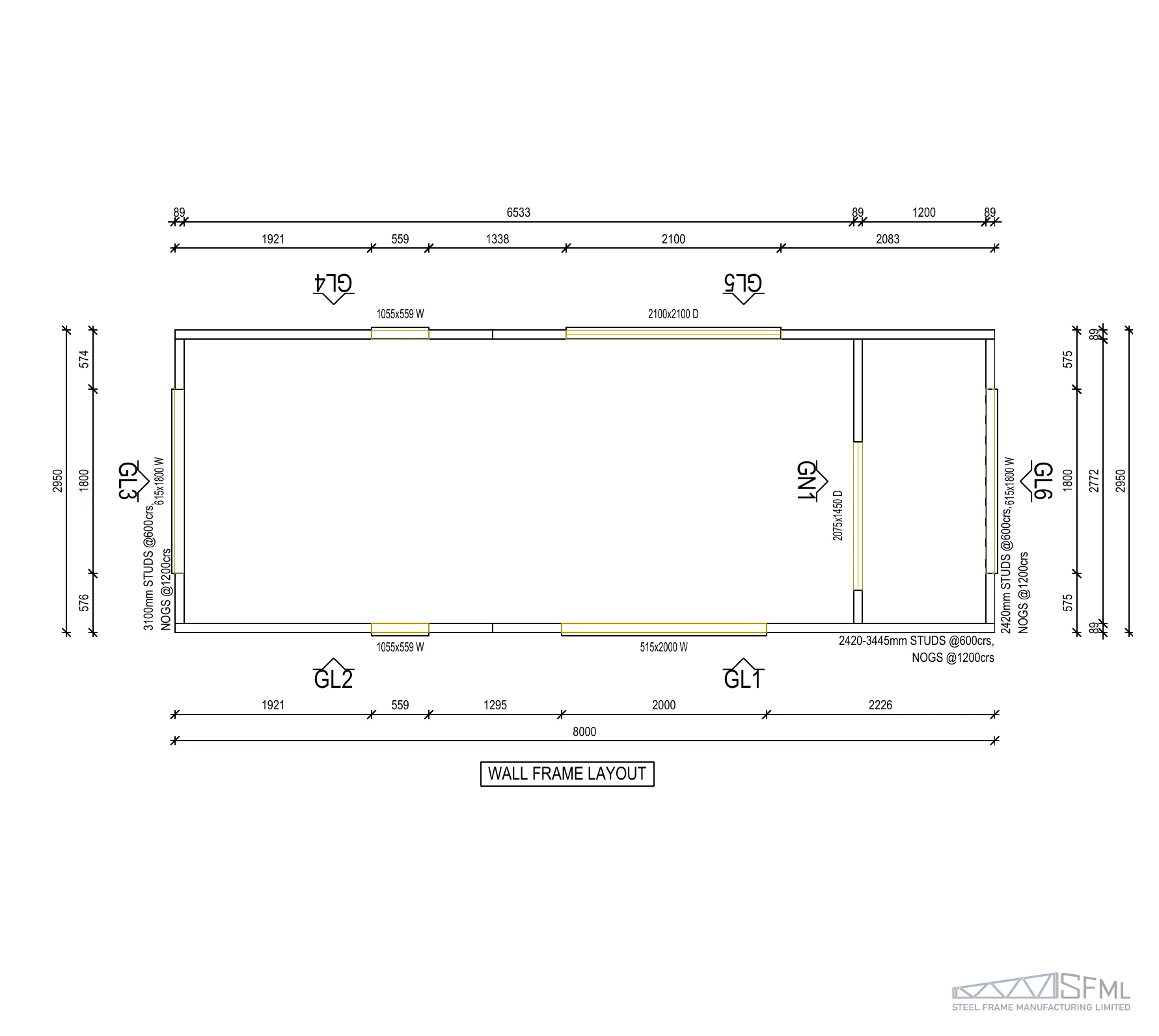

At a glance: The TI-2.95×8-A tiny house steel frame kitset measures 2.95m x 8.0m (23.6m²) with stud heights from 2420mm rising to 3445mm under 7° and 11° roof pitches, and includes mezzanine frames. It has a 2100mm wide x 2100mm high door opening and a 1450mm wide x 2075mm high internal door opening, plus window openings from 559mm to 2000mm wide. As a transportable design it sits outside the scope of NASH Standard Part Two and carries no wind-zone or snow-load rating. Regular price from $6,581.97 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.

This tiny house steel frame kitset 2.95m x 8.0m is a frame-only kitset: every wall, roof and mezzanine frame is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. The trailer, doors, windows, cladding, roofing, linings and fit-out are not included.

What’s Included

Specifications

Site Suitability & Design Notes

This is a transportable design: trailer-based tiny houses sit outside the scope of building design standards, so this kitset carries no wind-zone or snow-load rating. We align our designs as closely as possible to the relevant standards but cannot guarantee compliance, and tiny house designs often include features outside NASH Standard Part Two: May 2019, such as overheight walls, mezzanines and step-down walkways. An engineer can review the design at your request as an additional service at further cost.

Bracing design is not included in the kit. At 7° the lower roof pitch is below the 8° minimum for typical corrugated roofing, so choose a trough/tray or trapezoid profile — NZBC E2 allows these down to 3° — and confirm the profile and fixings with your roofing supplier. Whether your project needs building consent, and what a habitable tiny house must meet, depends on how it is built and used, so check with your local council. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.

Engineering: An engineer’s PS1 is not included. It is available at additional cost on request, or you can use your own engineer.

Compare Tiny House Sizes

Need more length? See the 2.95m x 10.2m A tiny house kitset. Want a different layout at the same size? See the 2.95m x 8.0m B tiny house kitset.

Delivery & Installation

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to collect and assemble on site. Pre-assembled frames, ready to stand with frame-to-frame fixings provided, are available at an additional freight cost. Freight costs are determined by your delivery location.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the TI-2.95×8-A tiny house kitset?

The TI-2.95×8-A measures 2.95m by 8.0m, a 23.6m² footprint, with stud heights from 2420mm rising to 3445mm under 7° and 11° roof pitches.

What’s included in the kit?

The tiny house steel frame kitset 2.95m x 8.0m includes wall frames, roof frames, mezzanine frames, roof-to-wall brackets, a site kit of ancillaries (driver bits, gloves, grommets and assembly screws) and construction plans. The trailer, doors, windows, cladding, roofing and bracing design are not included — see the What’s Included table above.

Is it suitable for a trailer-based tiny house?

Yes. It is designed as a transportable build. Trailer-based tiny houses sit outside the scope of building design standards, so we align the design as closely as we can to the relevant standards but cannot guarantee compliance.

What wind and snow loads is it designed for?

None are stated, because a transportable tiny house is outside NASH Standard Part Two. An engineer can review the design at your request as an additional service at further cost.

Does it include a mezzanine?

Yes. Mezzanine frames are included, built from C89 joists back to back at 600mm centres. The plans show the mezzanine layout.

Is an engineer’s PS1 included?

No. A PS1 is available at additional cost on request, or you can use your own engineer.

What roofing suits the 7° and 11° pitches?

The 7° pitch is below the 8° minimum for typical corrugated roofing, so choose a trough/tray or trapezoid profile, which NZBC E2 allows down to 3°. Check the profile and fixings with your roofing supplier.

Can you deliver the TI-2.95×8-A to my site?

Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
