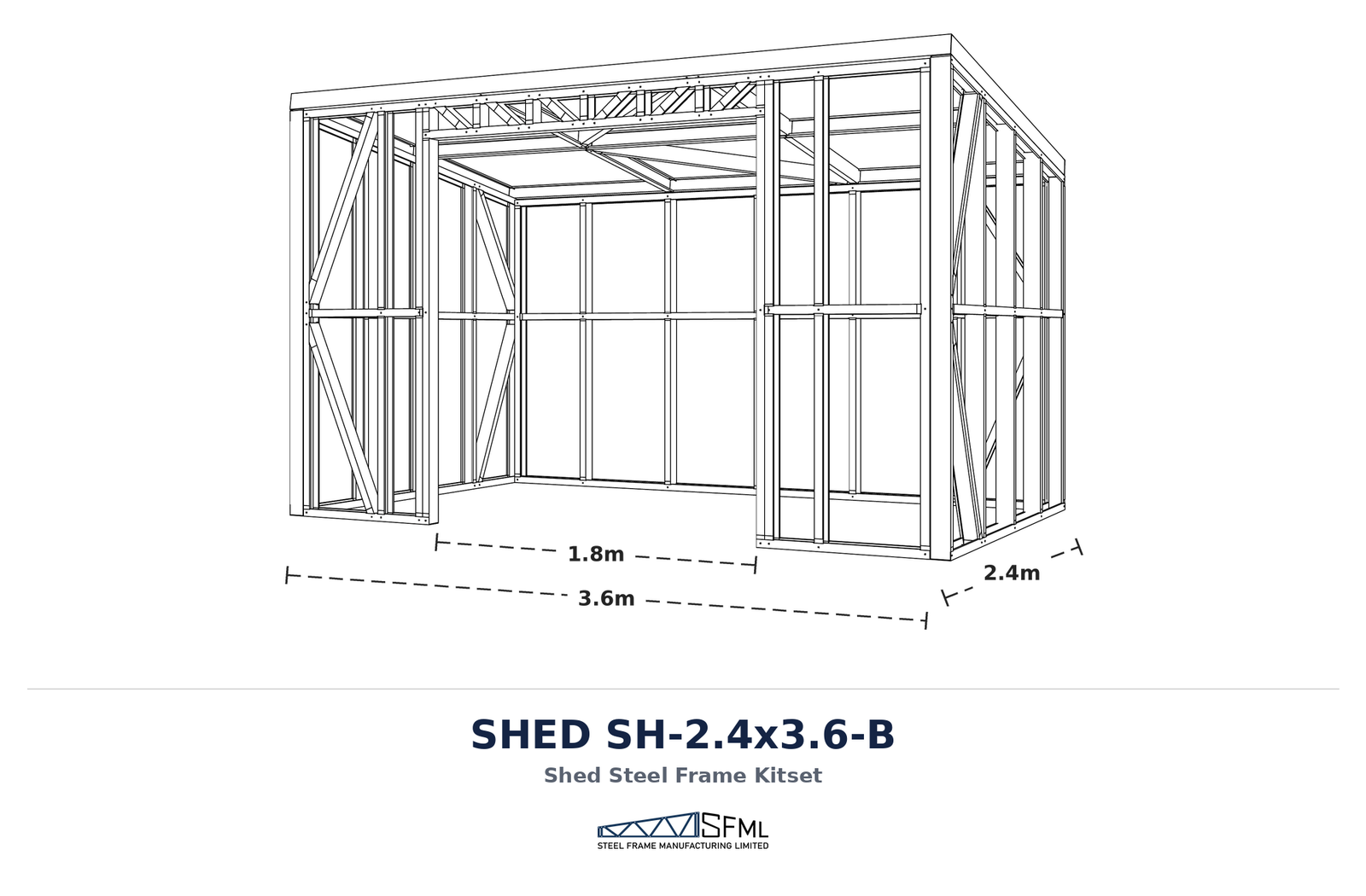

Shed Steel Frame Kitset 2.4m x 3.6m B (8.64sqm)

The Shed Steel Frame Kitset 2.4m x 3.6m B is an 8.64m² steel framing kit for a garden shed, storage shed or small workshop. Four wall frames and a roof frame are supplied, with an 1800mm wide door opening built into the south wall and a single-slope 8° roof; door frames, floor frame, cladding and roofing are available separately.

At a glance: The SH-2.4×3.6-B shed steel frame kitset measures 2.4m x 3.6m (8.64m²) with stud heights from 1875mm to 2200mm. Regular price from $1,764.39 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page. The SH-2.4×3.6-B has one 1800mm wide x 2000mm high door frame opening in the south wall. It is designed for wind zones up to High and snow loads of <1.5kPa, under an 8° mono-pitch roof.

Design basis: Standard design suits wind zones up to High and snow loads up to 1.5 kPa (NASH Standard Part 2, 2019). Tell us your site’s wind and snow zones when you order and we’ll confirm the design suits your site, or adjust it. Engineer’s PS1 is not included unless quoted. Foundations and consent are by others.

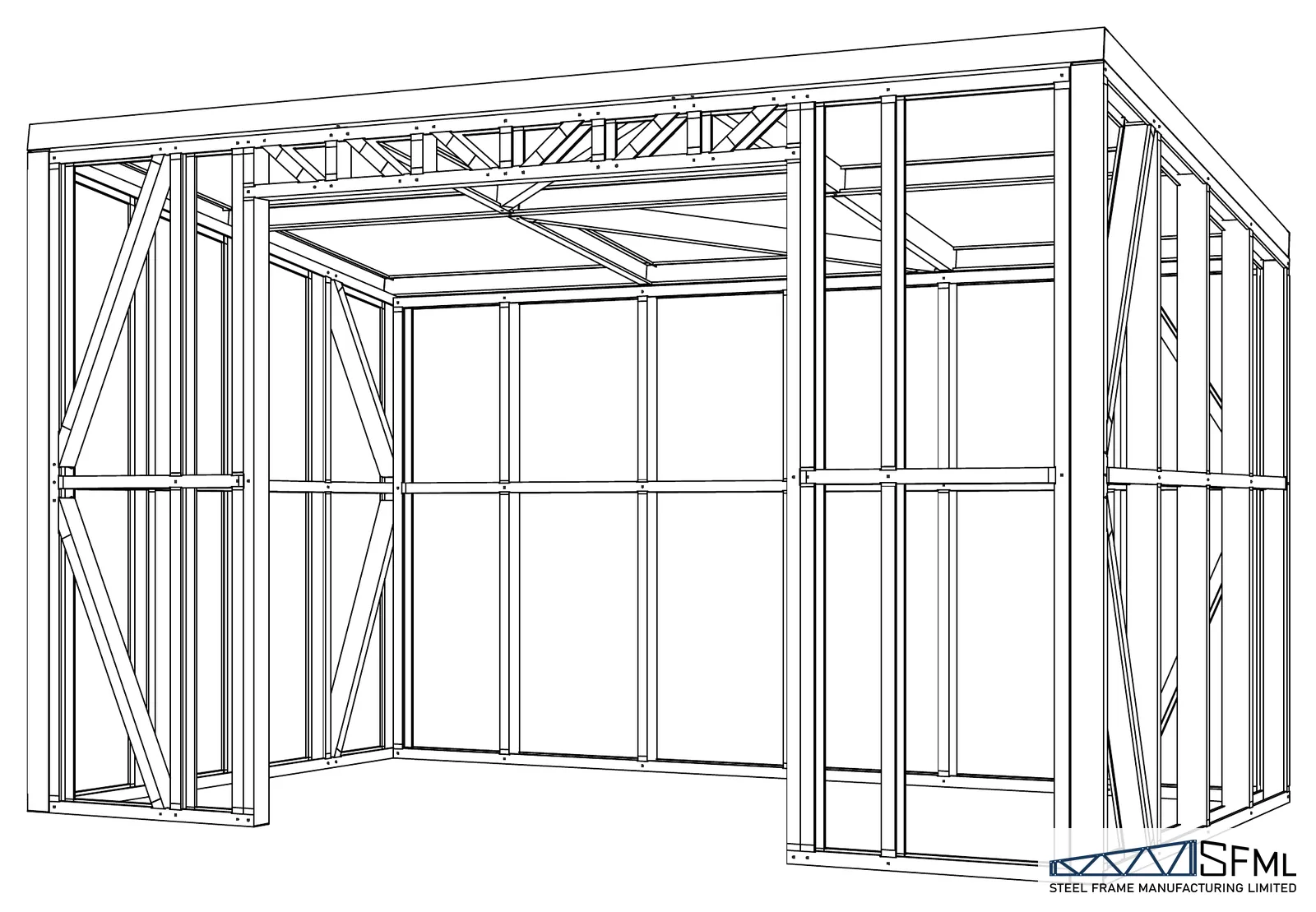

This shed steel frame kitset 2.4m x 3.6m is a frame-only kitset: every wall and roof frame is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Door frames, floor frames, cladding, roofing and foundations are not included.

What’s Included

Specifications

Construction Plans

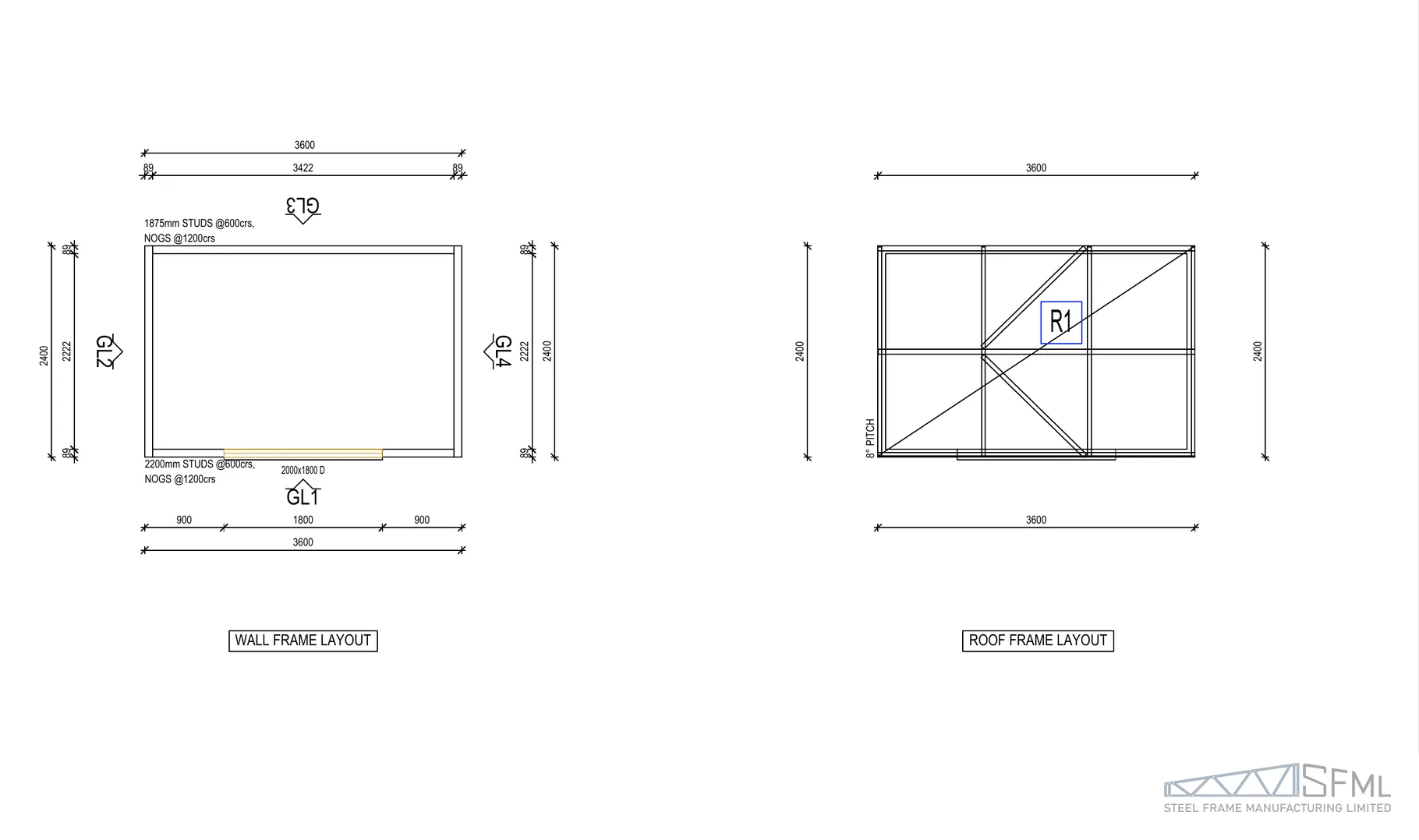

The construction plans for the SH-2.4×3.6-B shed steel frame kitset show the wall and roof frame layouts, openings and dimensions, so you can check the frame against your site before you order. The second file includes the optional double door frames. They are for the standard kitset and are not site-specific; building consent documentation is available through our design team on request.

• Download the SH-2.4×3.6-B construction plans (PDF)
• Download the SH-2.4×3.6-B construction plans with the optional door frames (PDF)

Site Suitability & Design Notes

Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing design is excluded, and there is no allowance for lining stud junctions.

At 8° the roof pitch sits right at the minimum for typical corrugated roofing; trough/tray and trapezoid profiles are also suitable. This kitset is the structure for a shed or workshop; if you plan to use the building for anything beyond storage, discuss it with our team and check consent requirements with your local council first. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.

Compare Shed Sizes

The 2.4m x 3.6m A shed kitset is the same size with the same 8° roof and 1800mm door opening, so compare the two listings to see which layout suits your site. Need more floor area? See the 3m x 4m A shed kitset.

Delivery & Installation

Lead time: Typically under 10 working days from order confirmation, if you approve plans and pay invoices promptly. Your quote confirms the timing for your order.

Delivery: Frames are made at our factory in Waimate and collected by Booths Logistics within 1 working day of your final payment. You can also collect from our Waimate factory.

• Flat pack: delivered free to your nearest Booths depot as a flat bundle pack for you to collect and assemble on site.
• Pre-assembled: ready to stand, with frame-to-frame fixings provided. Freight is extra and quoted for your address. South Island delivery is scheduled within 10 to 14 days of your second invoice.
• North Island: flat pack is delivered free to your nearest Booths depot. For assembled frames, please contact us before placing your order.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the SH-2.4×3.6-B shed kitset?

The SH-2.4×3.6-B measures 2.4m wide by 3.6m long, an 8.64m² footprint. Stud heights run from 1875mm up to 2200mm under an 8° mono-pitch roof.

What’s included in the kit?

The shed steel frame kitset 2.4m x 3.6m includes four wall frames, one roof frame, roof-to-wall brackets, a site kit of ancillaries (driver bits, gloves, grommets and assembly screws) and construction plans. Door frames and a floor frame are available at additional cost, and cladding, roofing and foundations are not included — see the What’s Included table above.

How big is the door opening?

There is one door frame opening in the south wall, 1800mm wide by 2000mm high. It is a frame opening size, and the doors themselves are supplied by others. The optional door frames are shown in the second plans file.

What wind and snow loads is it designed for?

The design is suitable up to High wind zone and snow loads of <1.5kPa. Confirm your site conditions with our team before ordering.

What roofing suits an 8° roof pitch?

An 8° pitch is the minimum for typical corrugated profiles, and trough/tray or trapezoid profiles also suit it. Check the manufacturer’s minimum pitch for your chosen roofing.

Is a floor included?

No. A floor frame is available at additional cost, or the shed can sit on a slab or timber joist foundation designed by others or by SFML on request. Neither is included in the kit price.

Can you deliver the SH-2.4×3.6-B to my site?

Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
