Garage Steel Frame Kitset 6.0m x 18.0m A (108sqm)
Garage steel frame kitset 6.0m x 18.0m (108m²) — three-bay steel framing kit with wall frames and webbed roof rafters, three 2445mm wide garage door openings and a 5.6° mono-pitch roof, designed up to Extra High wind zone.
Delivery Type : Bundle Pack or Pre Assembled Frames

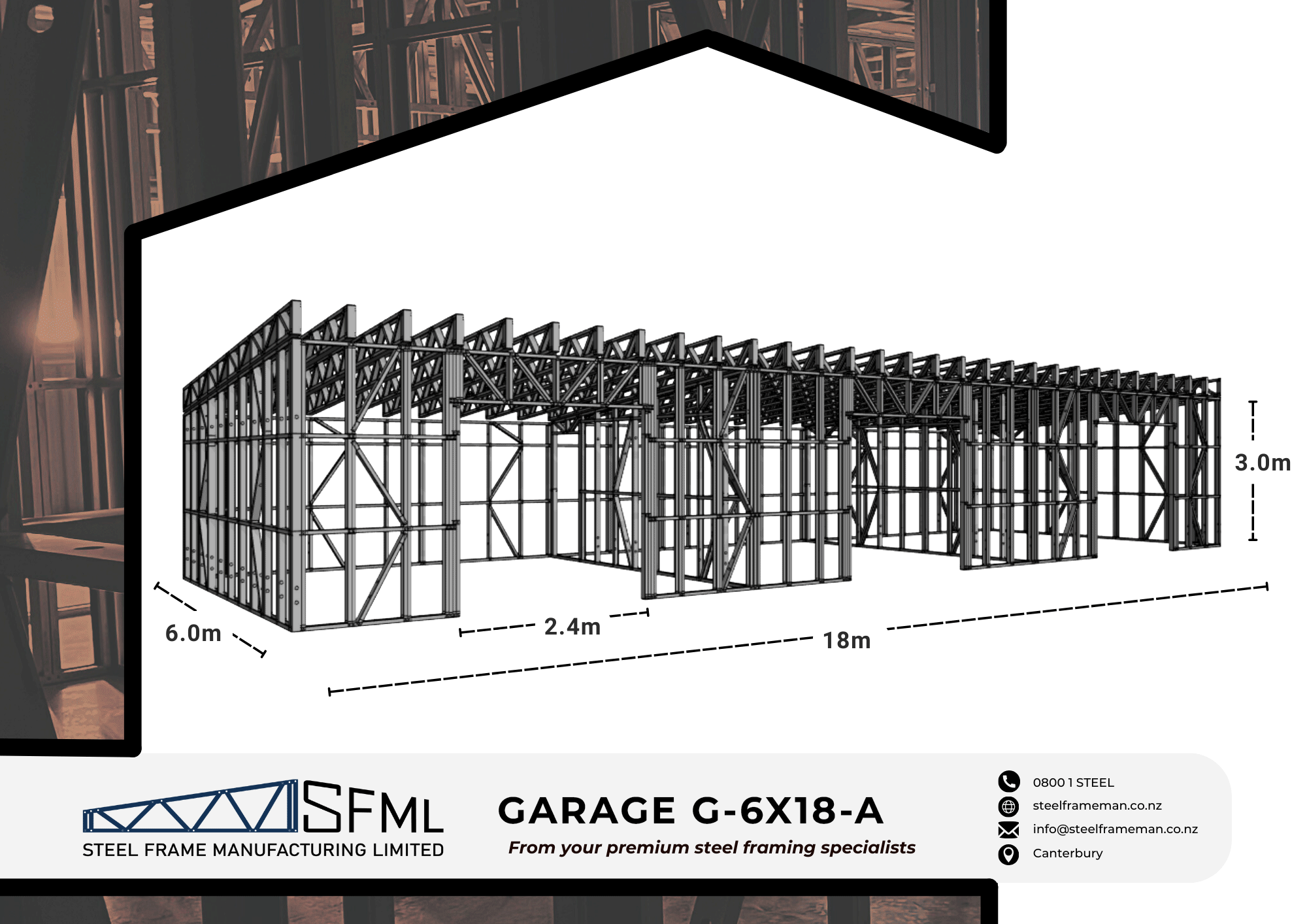

The Garage Steel Frame Kitset 6.0m x 18.0m A is a spacious three-bay steel framing kit covering 108m² — wall frames, webbed roof rafters and bracing design are supplied, with three garage door openings built into the design and cladding and roofing available separately. It is a popular footprint for a multi-vehicle garage, workshop or combined storage and workshop build.

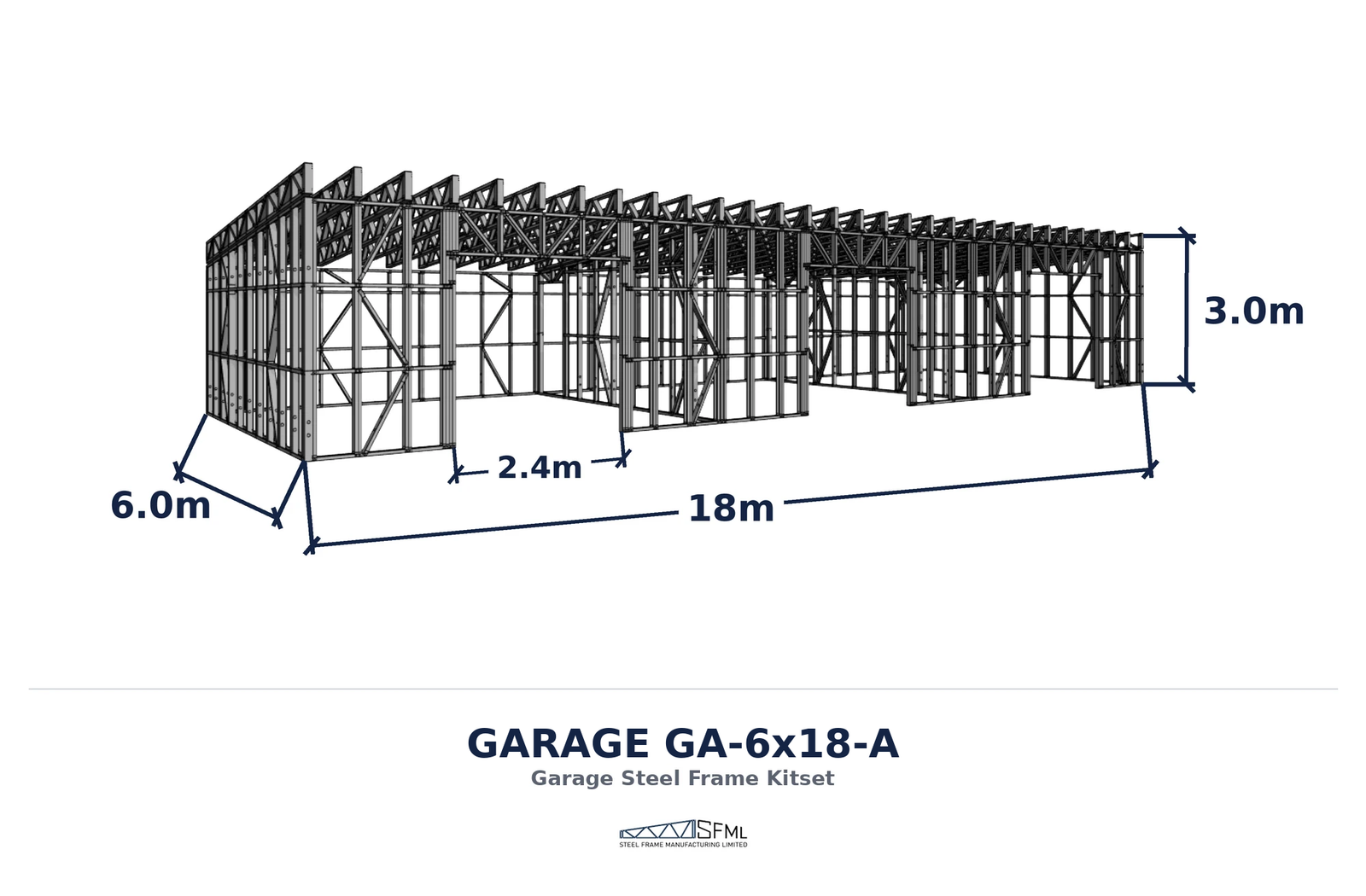

At a glance: The GA-6×18-A garage steel frame kitset measures 6.0m x 18.0m (108m²) as three compartments of about 5.9m each. The GA-6×18-A has three 2445mm wide x 2400mm high garage door openings, one per compartment. It is designed for wind zones up to Extra High and snow loads of <1.5kPa, under a 5.6° mono-pitch roof. Regular price from $17,995.78 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.
Design basis: Standard design suits wind zones up to Extra High and snow loads up to 1.5 kPa (NASH Standard Part 2, 2019). Tell us your site’s wind and snow zones when you order and we’ll confirm the design suits your site, or adjust it. An engineer’s PS1 is not included; it is available at additional cost, or you can use your own engineer. Foundations and consent are by others.

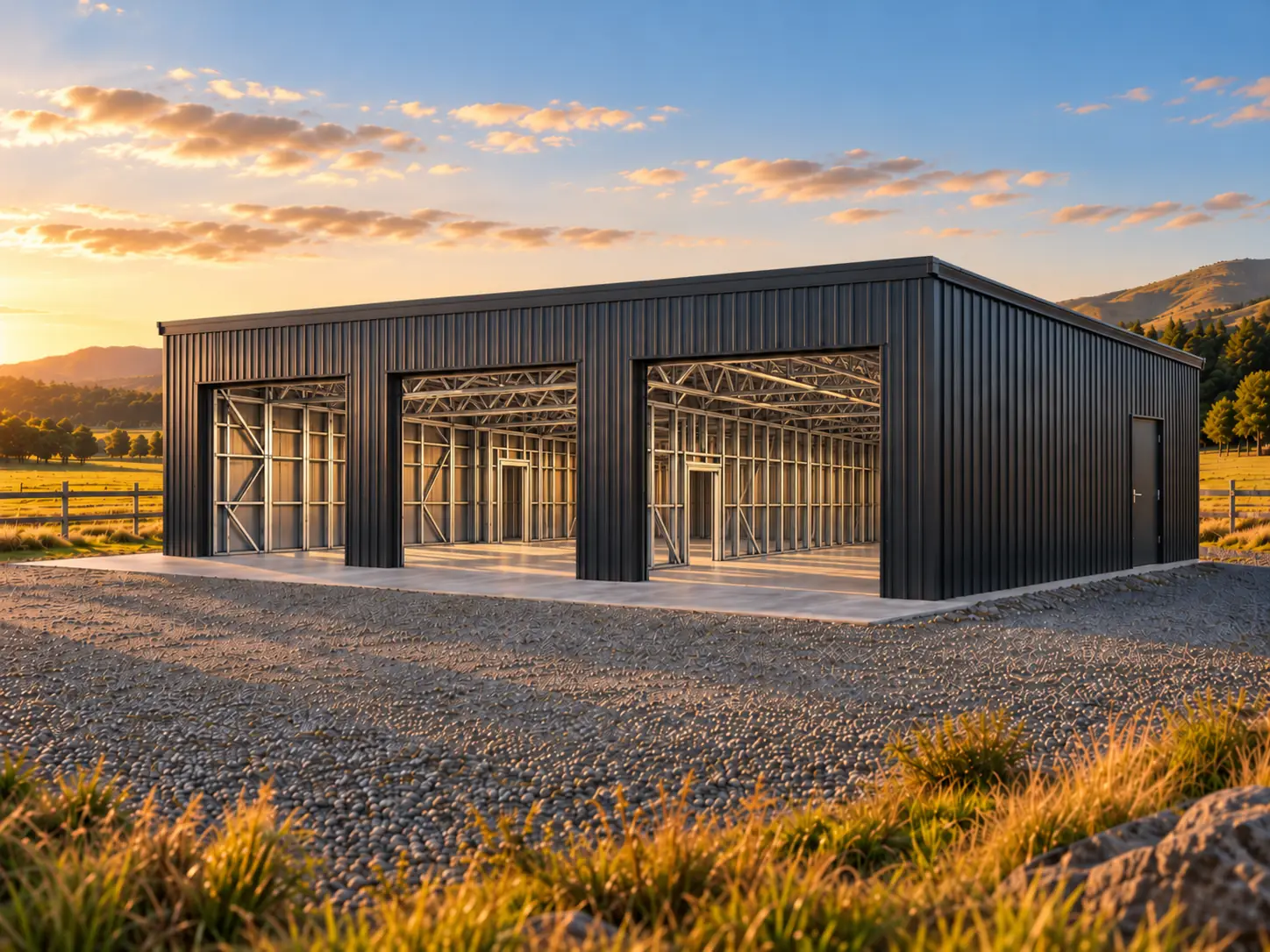

This is a frame-only kitset: every wall and roof frame is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Doors, cladding, roofing and foundations are not included.

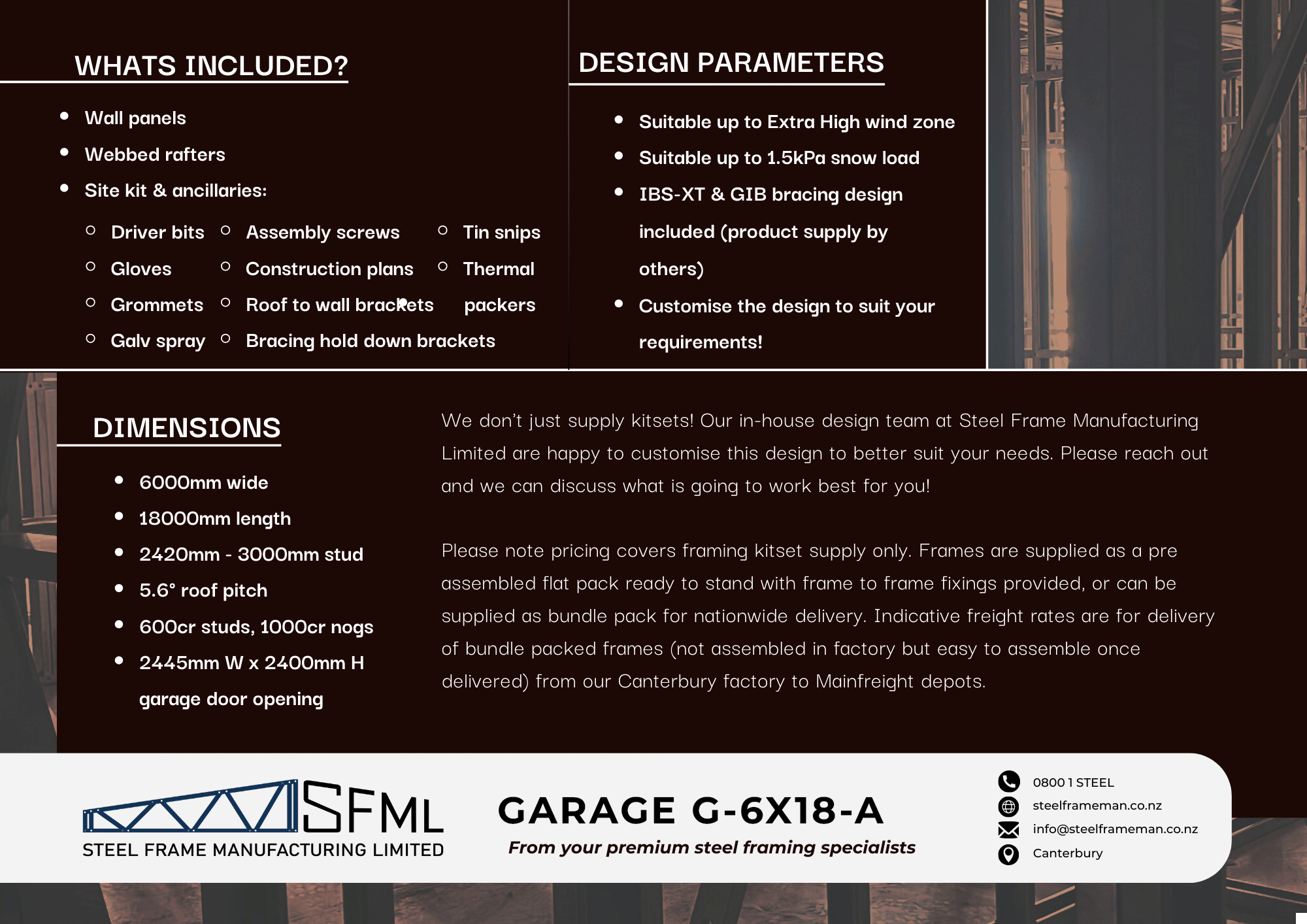

What’s Included
| Wall frames | Included |
| Webbed roof rafters (350mm deep, 600mm centres) | Included |
| Roof-to-wall brackets | Included |
| Site kit & ancillaries (assembly screws, thermal packers, bracing hold-down brackets & washers, service hole grommets) | Included |
| Bracing design (IBS Rigidrap-XT & GIB sheet bracing to walls, strap bracing to roof) | Included |
| Construction plans | Included |
| Ceiling battens, roof purlins | Available at additional cost |
| Cladding & roofing | Available at additional cost — ask our team about options |
| Garage doors, personal doors & door frames | Not included — the openings are framed into the wall frames; doors and their frames are supplied by others |
| Bracing products (IBS Rigidrap-XT, GIB) | Not included — supplied by others |
| Foundation design & construction | Not included — slab designed by others, or by SFML on request |
| Engineer’s PS1 | Not included — available at additional cost on request, or use your own engineer |
Specifications
| Product code | GA-6×18-A |
| Footprint | 6.0m x 18.0m (108m²) |
| Layout | Three compartments of about 5.9m, divided by internal walls |
| Stud height | 2420mm rising to 3000mm |
| Roof | Mono-pitch, 5.6° pitch |
| Roof framing | 350mm webbed rafters at 600mm centres |
| Wall framing | Studs at 600mm centres (back-to-back above 2700mm), nogs at 1000mm centres |
| Garage door openings | 3 x 2445mm W x 2400mm H (frame opening size) |
| Personal door openings | 2205mm H x 965mm W (frame opening size) |
| Wind zone | Up to Extra High (EH) |
| Snow load | Up to <1.5kPa |
| Earthquake zone | 3 |
| Foundations | Slab — by others, or by SFML on request (not included) |
Site Suitability & Design Notes
This kitset is designed for sites up to Extra High wind zone and snow loads below 1.5kPa, with the plans set for earthquake zone 3. Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing design is supplied for IBS Rigidrap-XT and GIB sheet bracing to the walls and strap bracing to the roof; the bracing products themselves are supplied by others.
At 5.6° the roof pitch is below the 8° minimum for typical corrugated roofing, so choose a trough/tray or trapezoid profile — NZBC E2 allows these down to 3°. Check that the stud and nog spacings suit your chosen cladding and lining products. All door opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.
Construction Plans

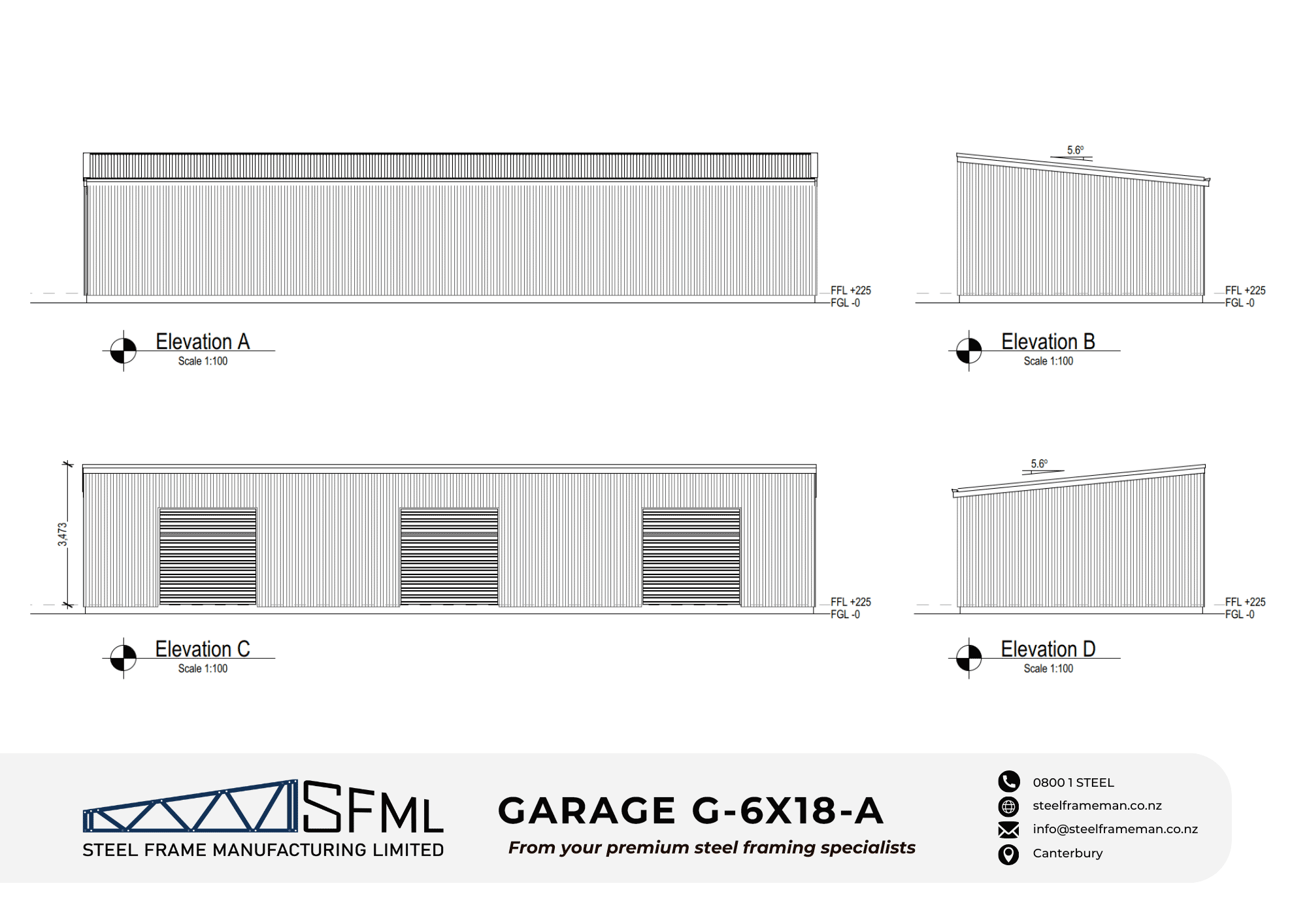

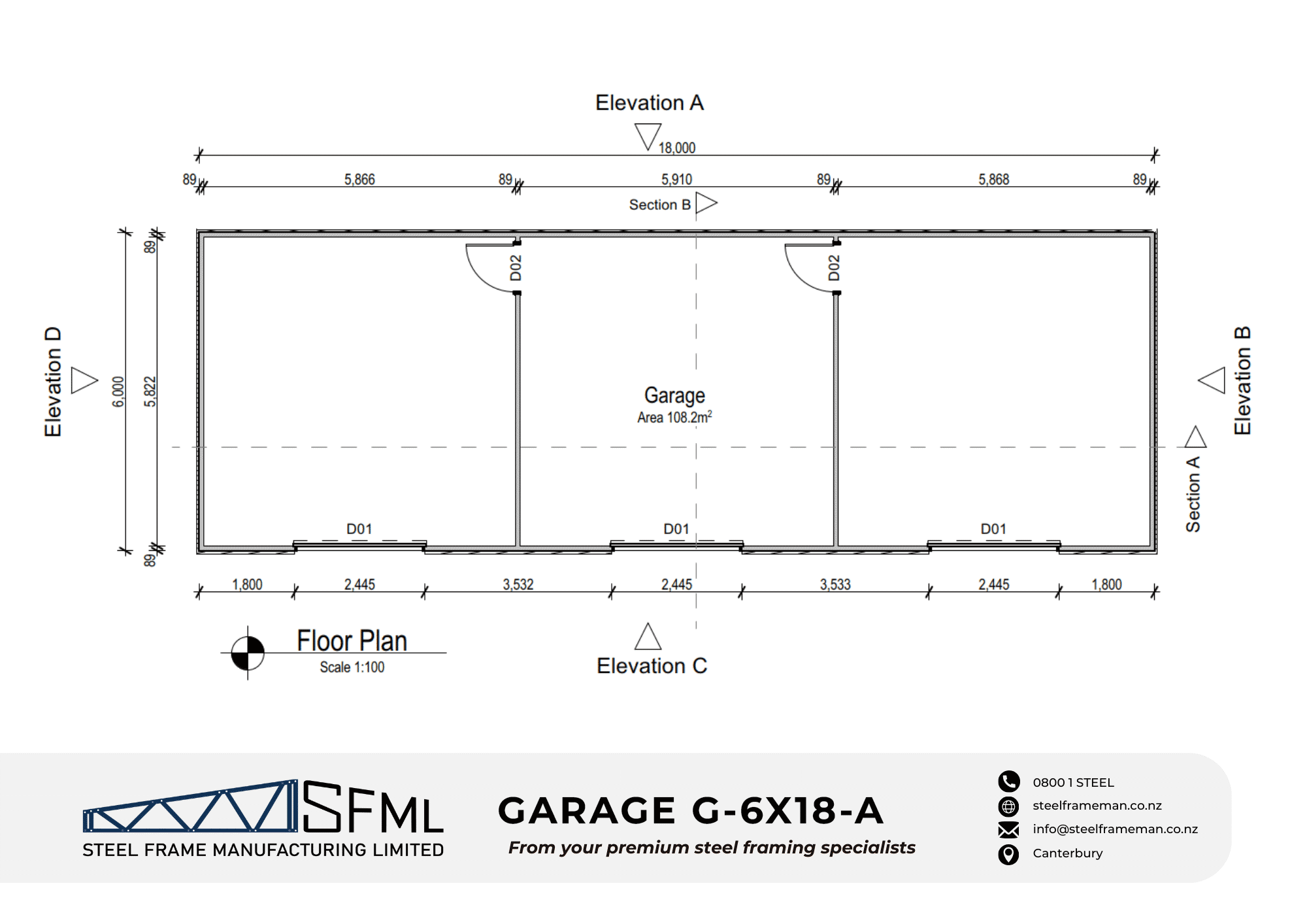

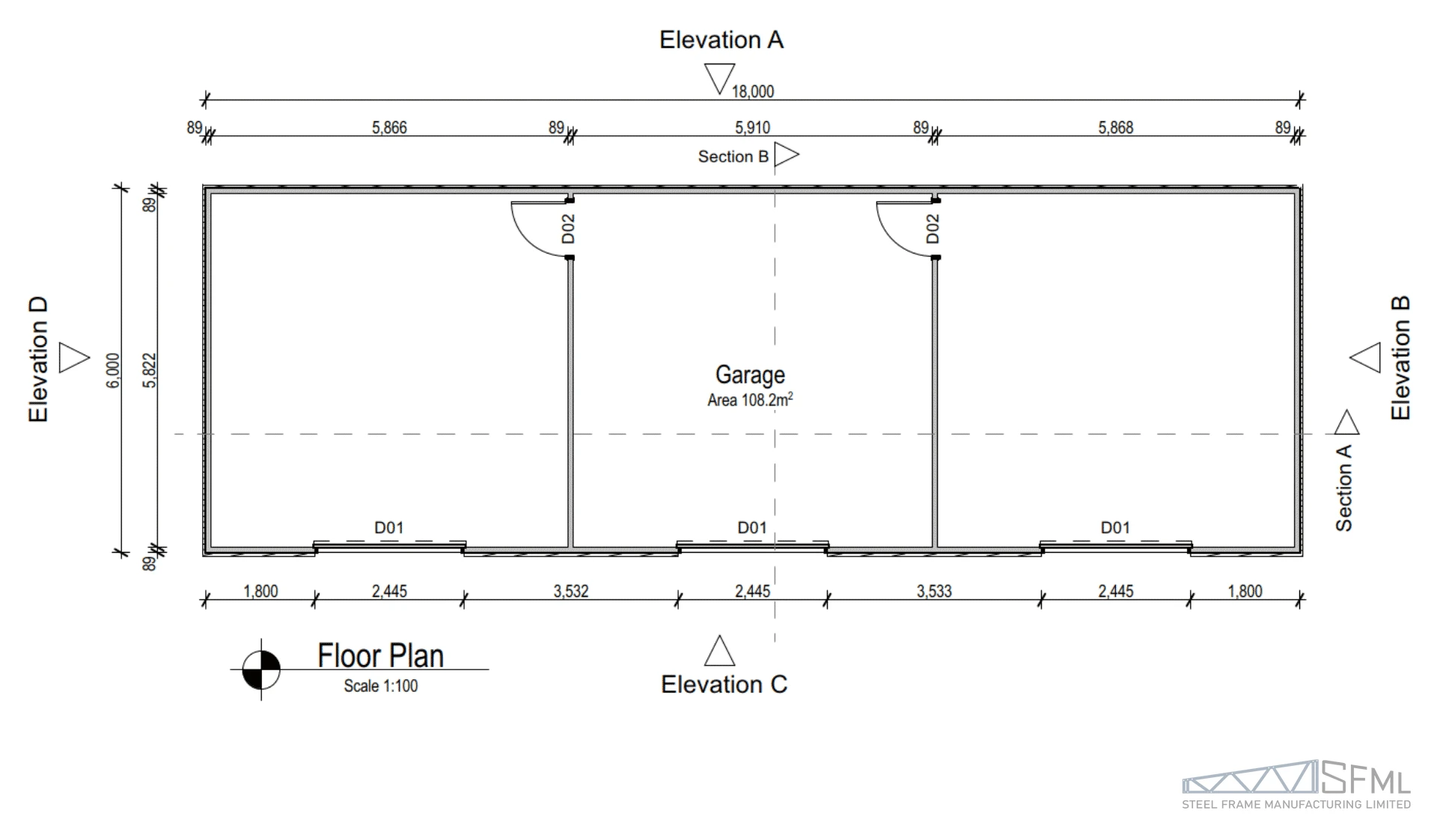

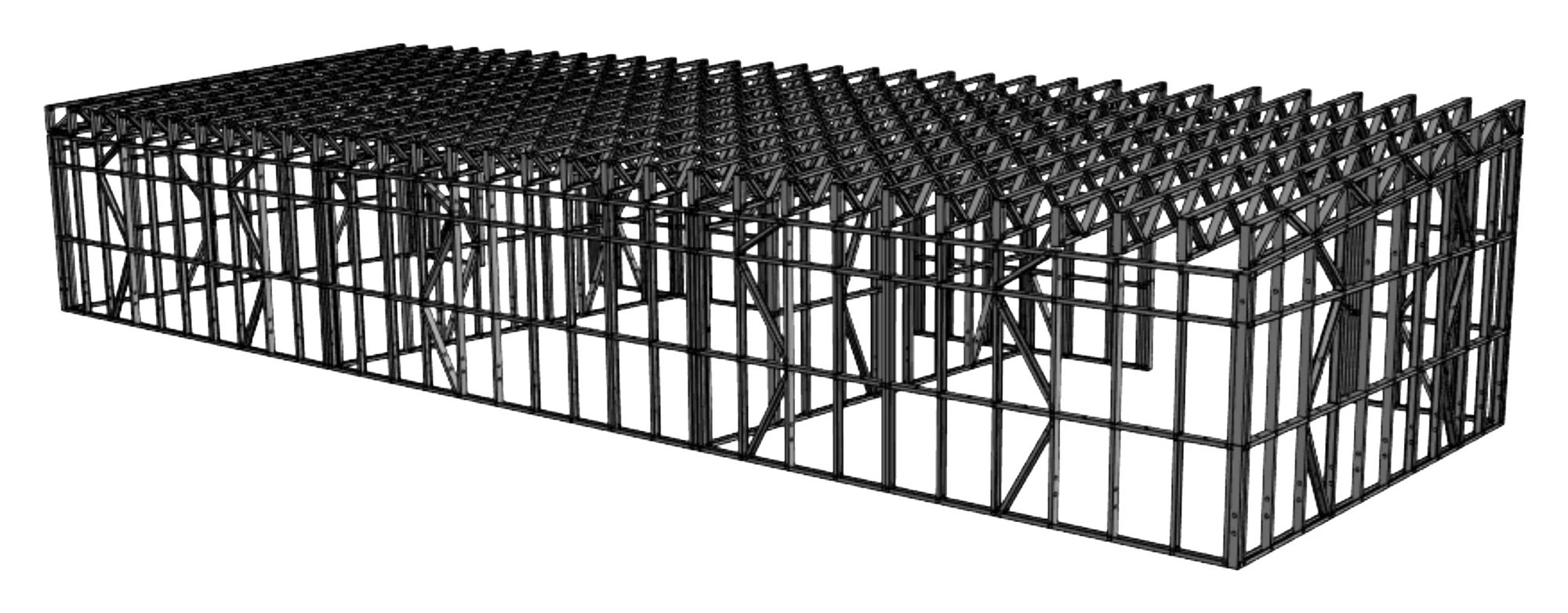

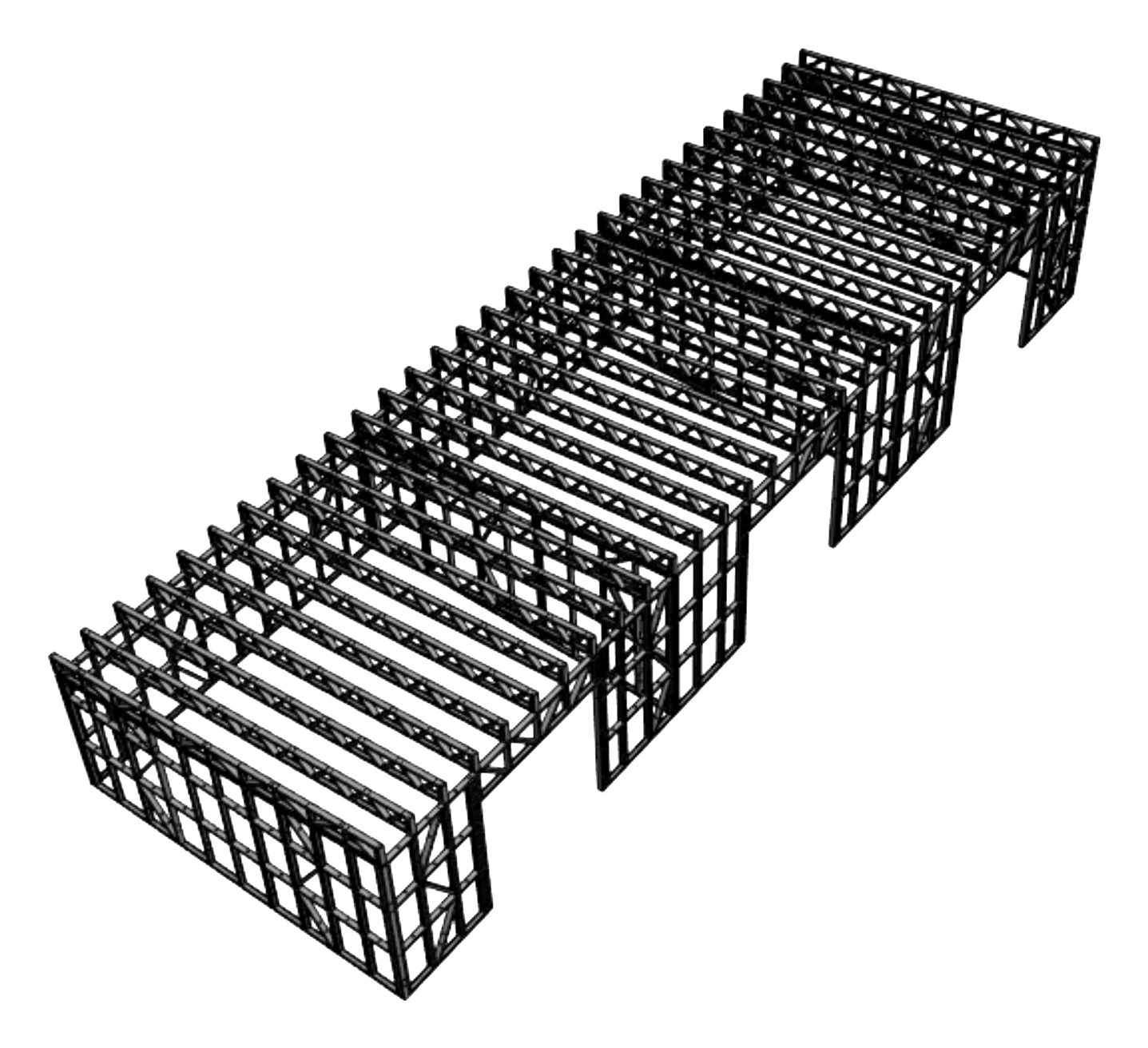

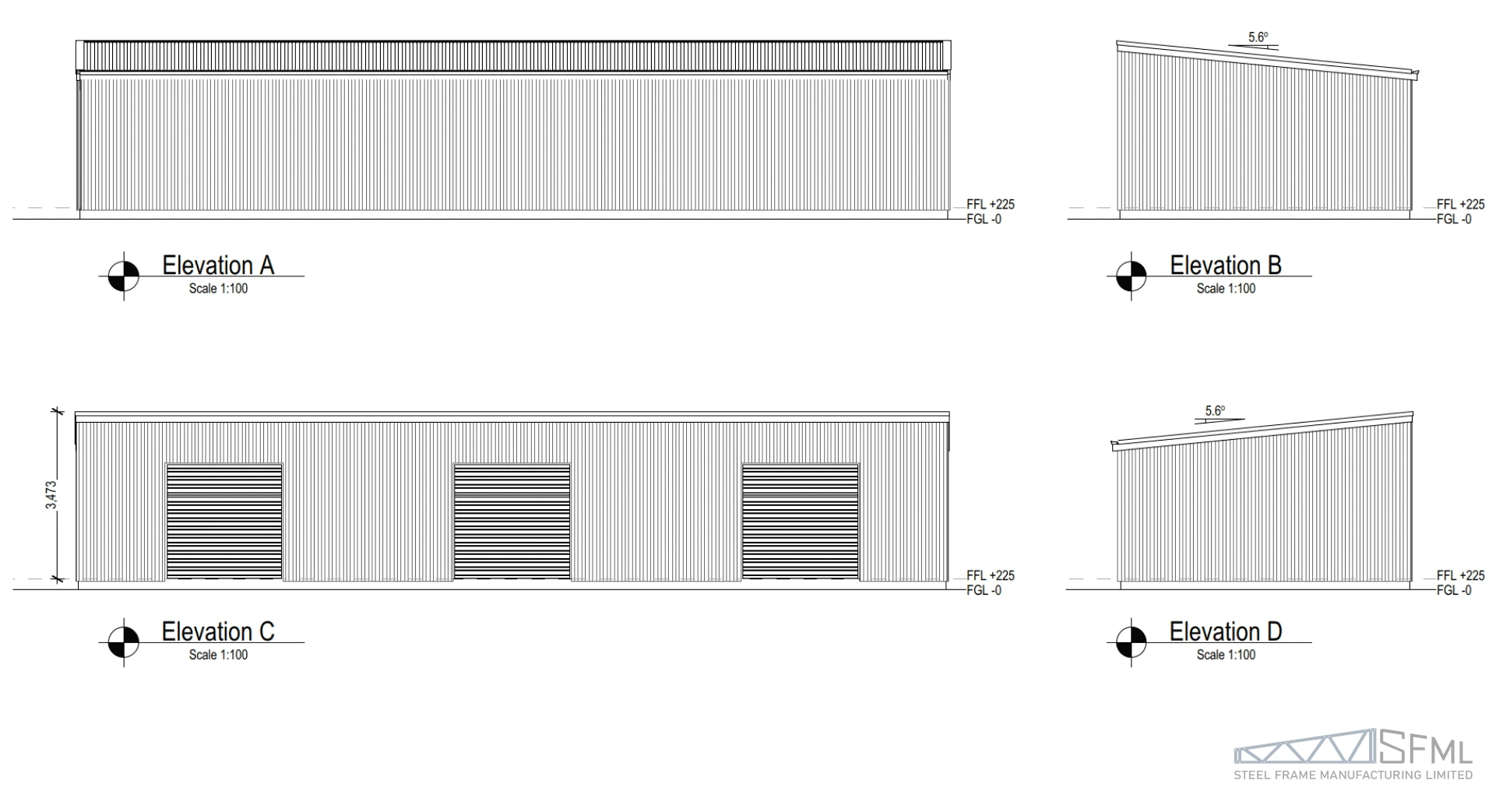

Dimensioned wall and roof frame layout plans for the GA-6×18-A are available to download: GA-6×18-A Construction Plans (PDF).
Delivery & Installation
Lead time: Typically under 10 working days from order confirmation, if you approve plans and pay invoices promptly. Your quote confirms the timing for your order.
Delivery: Frames are made at our factory in Waimate and collected by Booths Logistics within 1 working day of your final payment. You can also collect from our Waimate factory.
- Flat pack: delivered free to your nearest Booths depot as a flat bundle pack for you to collect and assemble on site.
- Pre-assembled: ready to stand, with frame-to-frame fixings provided. Freight is extra and quoted for your address. South Island delivery is scheduled within 10 to 14 days of your second invoice.
- North Island: flat pack is delivered free to your nearest Booths depot. For assembled frames, please contact us before placing your order.
Pricing
The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.
Frequently Asked Questions
What size is the GA-6×18-A garage kitset?
The GA-6×18-A measures 6.0m wide by 18.0m long, a 108m² footprint divided into three compartments of about 5.9m each. Stud heights run from 2420mm up to 3000mm under a 5.6° mono-pitch roof.
What’s included in the kit?
The kit includes wall frames, webbed roof rafters, roof-to-wall brackets, a site kit of ancillaries, bracing design and construction plans. Doors and door frames are not included. Ceiling battens, roof purlins, cladding and roofing are available at additional cost, and foundations and bracing products are not included — see the What’s Included table above.
How big are the garage door openings?
There are three garage door frame openings, each 2445mm wide by 2400mm high, one per compartment. The doors themselves and their frames are not included, and all opening sizes on the plans are frame opening sizes.
What wind and snow loads is it designed for?
The design is suitable up to Extra High wind zone and snow loads of <1.5kPa, with the plans set for earthquake zone 3. Bracing design for IBS Rigidrap-XT and GIB sheet bracing to the walls and strap bracing to the roof is supplied; confirm your site conditions with our team before ordering.
What roofing suits a 5.6° roof pitch?
A pitch below 8° is not suitable for typical corrugated profiles. NZBC E2 allows trough/tray or trapezoid profiles down to 3°, so choose one of those for this mono-pitch roof.
Are foundations included?
No. The GA-6×18-A is designed for a concrete slab, which is designed and built by others, or designed by SFML on request, and is not included in the kit price.
Can you deliver the GA-6×18-A to my site?
Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
Original price was: $17,995.78.$17,095.99Current price is: $17,095.99. incl. GST
