Cottage Steel Frame Kitset 3.8m x 6.3m A (23.94sqm)

Steel Frame Manufacturing Ltd 3.8m x 6.3m (23.94m2) Cottage steel framing kit includes roof rafters, wall frames and ancillaries (brackets, screws, driver bits etc).

Delivery Type : Bundle Pack or Pre Assembled Frames

The Cottage Steel Frame Kitset 3.8m x 6.3m A is a 23.94m² steel framing kit for a compact self-contained cottage, home office or guest sleepout. Wall frames and webbed rafters are supplied, with GIB bracing design, bracing hold-down brackets and a 12° mono-pitch roof; cladding, roofing and floor frames are available separately.

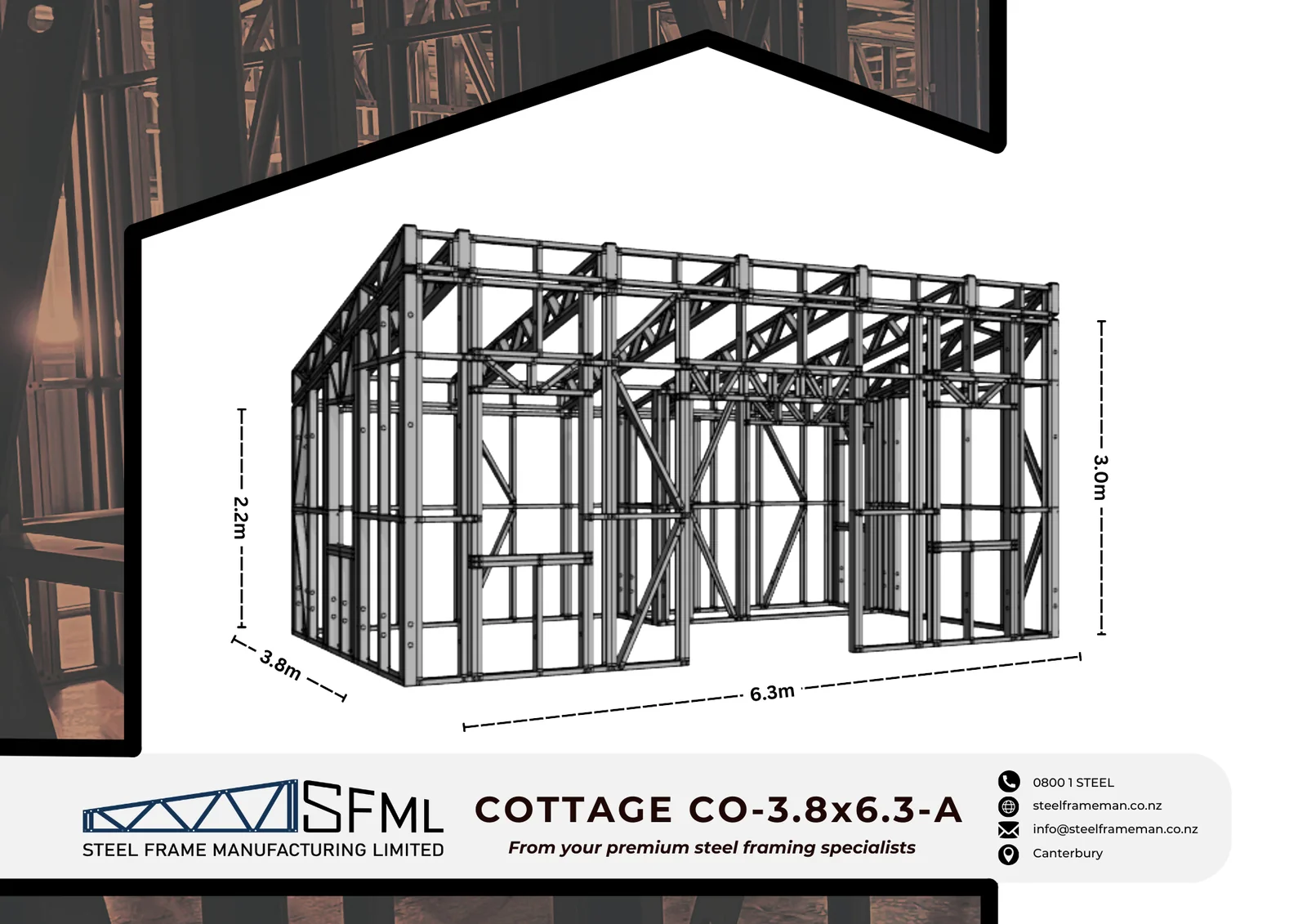

At a glance: The CO-3.8×6.3-A cottage steel frame kitset measures 3.8m x 6.3m (23.94m²) with stud heights from 2200mm on the low wall rising to 3000mm on the high wall. It has a 1620mm wide x 2150mm high door opening, three 820mm x 1220mm window openings, a 620mm x 920mm ensuite window and a 1550mm x 2075mm ensuite opening, under a 12.2° mono-pitch roof. It is designed for wind zones up to Very High and snow loads of 1.5kPa.

This is a frame-only kitset: every wall frame and rafter is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Doors, windows, cladding, roofing, linings, floor frames and foundations are not included.

What’s Included

Wall frames (9 panels, including the two inner ensuite walls) Included
Webbed rafters (300mm deep at 1200mm centres) and short infill frames above the long walls (19 roof frames in total) Included
Roof-to-wall brackets Included
Bracing hold-down brackets and washers Included
Site kit & ancillaries (driver bits, tin snips, galv spray, gloves, assembly screws, service hole grommets) Included
GIB bracing design (sheet bracing to walls, strap bracing to roof) Included
Construction plans Included
Ceiling battens (at 600mm centres max) and roof purlins (at 900mm centres max) Optional supply at additional cost
Floor frames Optional supply at additional cost
Cladding & roofing Available at additional cost — ask our team about options
Bracing products (GIB sheet, straps) Not included — supplied by others
Doors, windows & internal linings Not included — the openings are framed into the wall frames; doors and windows are supplied by others
Foundation design & construction Not included — slab or timber joist foundation designed by others, or by SFML on request
Building consent documentation Available through our in-house design team on request

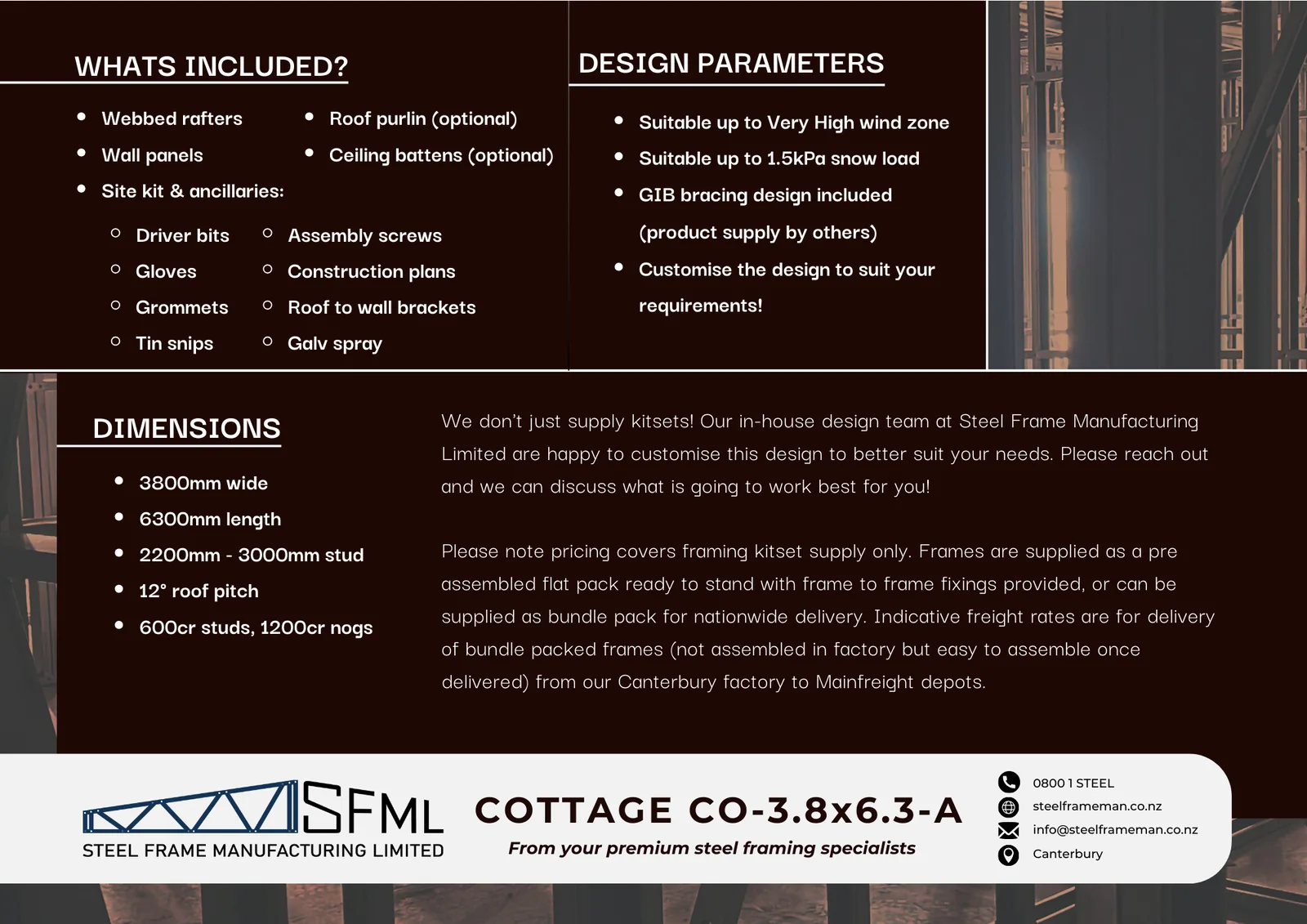

Specifications

Product code CO-3.8×6.3-A
Footprint 3.8m x 6.3m (23.94m²)
Stud height 2200mm on the low (south) wall, 3000mm on the high (north) wall; end walls follow the roof slope
Roof Mono-pitch, 12.2° pitch, rising to the north
Roof framing 300mm webbed rafters at 1200mm centres, with 12 short infill frames above the long walls
Wall framing C89 × 41.3 × 0.75 steel, studs at 600mm centres, nogs at 1200mm centres
Door opening 1620mm W x 2150mm H (frame opening size)
Window openings 3 x 820mm W x 1220mm H, plus an ensuite window 620mm W x 920mm H (frame opening sizes)
Ensuite opening 1550mm W x 2075mm H (internal)
Wind zone Up to Very High (VH)
Snow load 1.5kPa
Earthquake zone 3
Foundations Slab or timber joist — by others, or by SFML on request (not included)

Site Suitability & Design Notes

Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. GIB bracing design is supplied; alternative bracing products require specific engineering design at additional cost, and the bracing products themselves are supplied by others.

This kitset supplies the steel structure of a cottage only. Whether your project needs building consent, and what insulation, linings, weathertightness, plumbing and drainage a habitable building must meet, depends on your site and council, so check with your local council before you build. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.

Engineering: An engineer’s PS1 is not included. It is available at additional cost on request, or you can use your own engineer.

Delivery & Installation

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to collect and assemble on site. Pre-assembled frames, ready to stand with frame-to-frame fixings provided, are available at an additional freight cost. Freight costs are determined by your delivery location.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

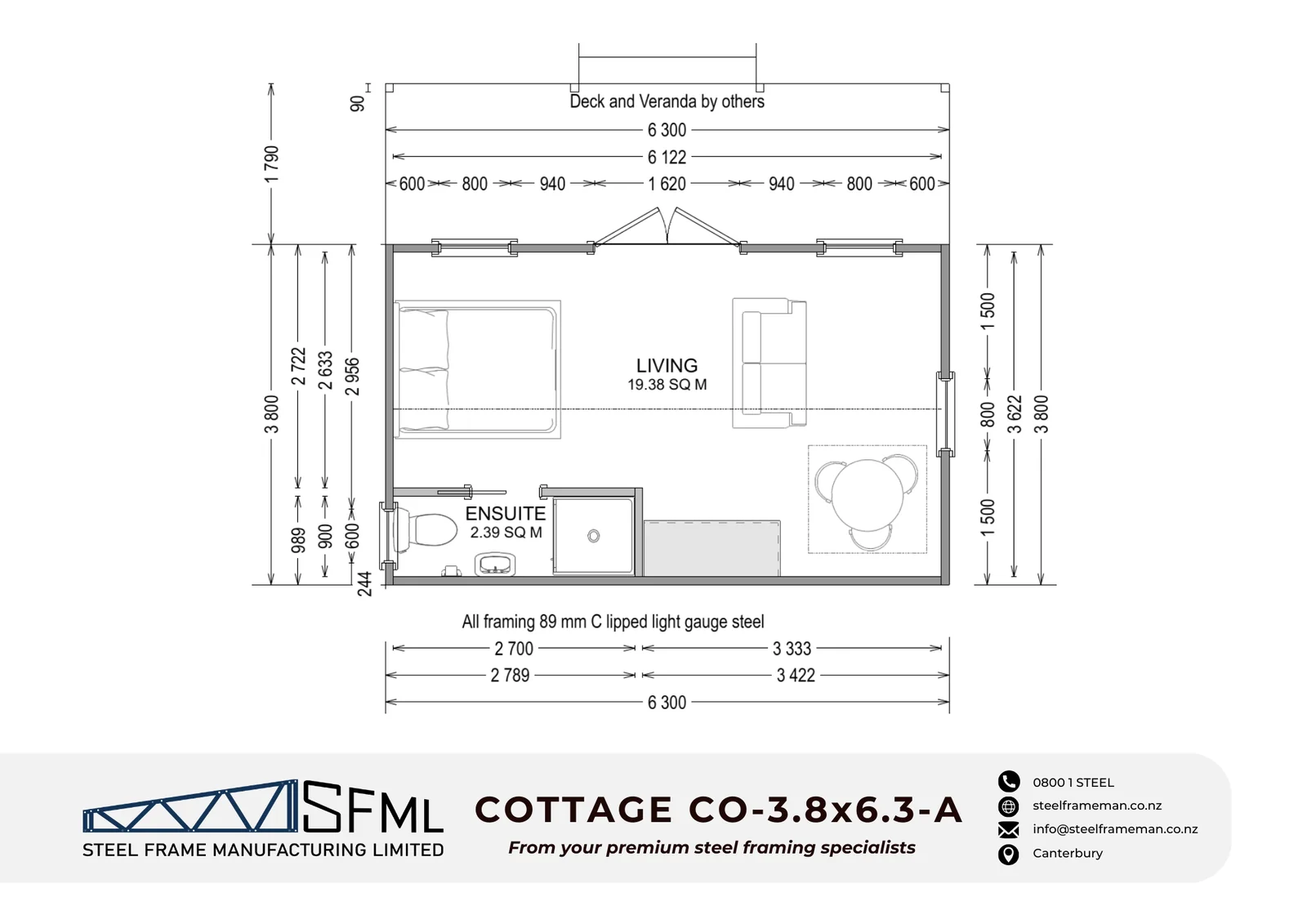

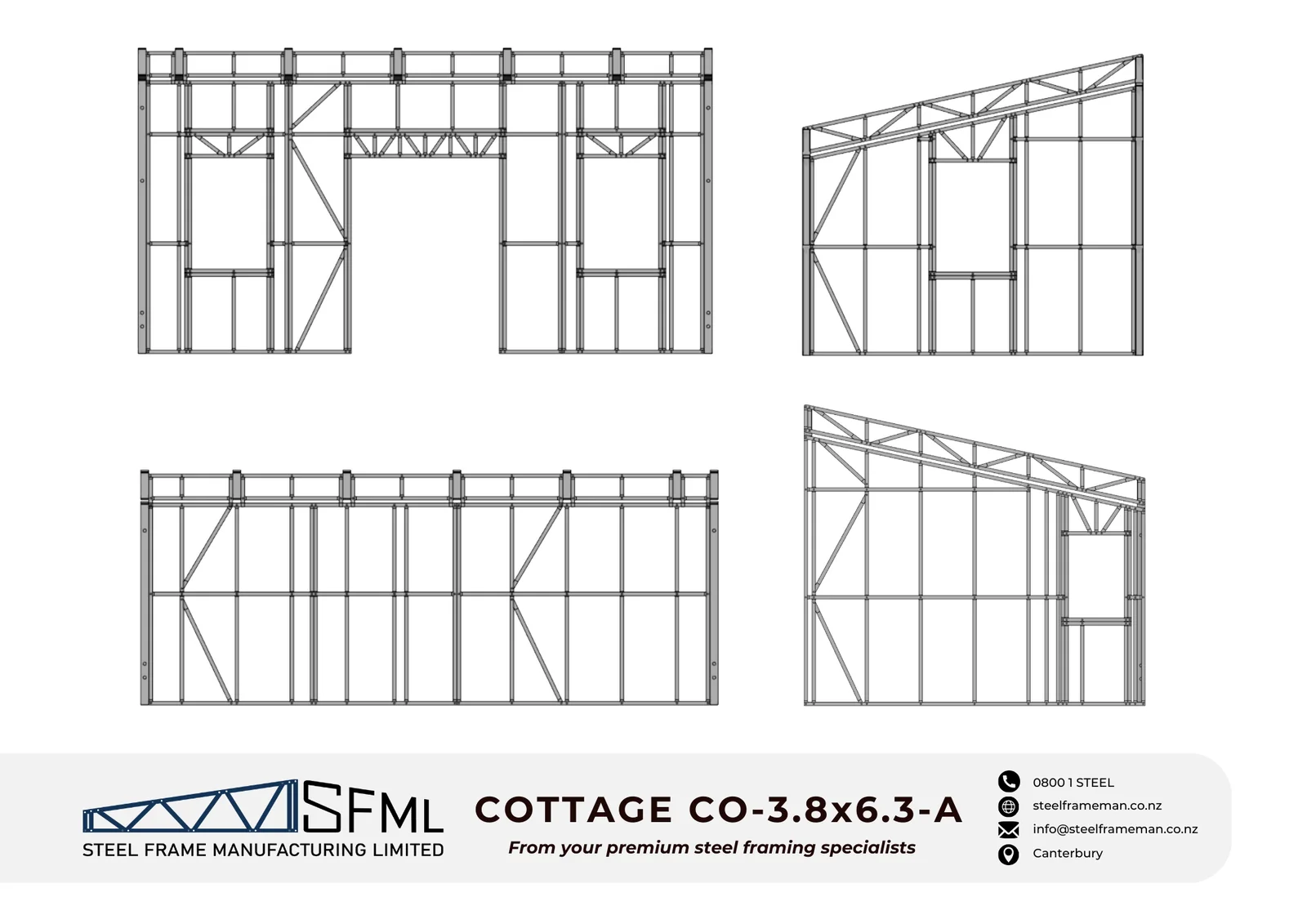

Construction Plans

The construction plans for the CO-3.8×6.3-A cottage steel frame kitset show the wall and roof frame layouts, openings and dimensions, so you can check the frame against your site before you order. They are for the standard kitset and are not site-specific; building consent documentation is available through our design team on request.

Frequently Asked Questions

What size is the CO-3.8×6.3-A cottage kitset?

The CO-3.8×6.3-A measures 3.8m wide by 6.3m long, a 23.94m² footprint. Stud heights run from 2200mm on the low wall up to 3000mm on the high wall under a 12.2° mono-pitch roof.

What’s included in the kit?

The kit includes 9 wall frames (including the two inner ensuite walls), 300mm deep webbed rafters with short infill frames, roof-to-wall brackets, bracing hold-down brackets and washers, a site kit of ancillaries, GIB bracing design and construction plans. Doors, windows, cladding, roofing and foundations are not included — see the What’s Included table above.

What openings are framed into the walls?

There is a 1620mm wide by 2150mm high door opening, three 820mm wide by 1220mm high window openings, a 620mm by 920mm ensuite window and a 1550mm wide by 2075mm high ensuite opening. All are frame opening sizes; the doors and windows themselves are supplied by others.

What wind and snow loads is it designed for?

The design is suitable up to Very High wind zone and snow loads of 1.5kPa, with the plans set for earthquake zone 3. GIB sheet bracing to the walls and strap bracing to the roof is designed; confirm your site conditions with our team before ordering.

Can I use it as a self-contained cottage or minor dwelling?

The frame is designed as the structure of a small cottage with an ensuite. Whether it can be built and occupied as a dwelling depends on your site, council and building consent, so confirm the requirements with your local council and our design team before ordering.

Are foundations or a floor included?

No. The CO-3.8×6.3-A is designed for a slab or timber joist foundation designed by others, or by SFML on request. Floor frames are an optional supply at additional cost, and neither is included in the kit price.

Can you deliver the CO-3.8×6.3-A to my site?

Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.

Original price was: $5,832.63.Current price is: $5,541.00. incl. GST
