Sleepout Steel Frame Kitset 4m x 6m A (24sqm)

The Sleepout Steel Frame Kitset 4m x 6m A is a 24m² steel framing kit for a spacious detached sleepout, studio or home office. Wall frames and webbed rafters are supplied, with a 2420mm wide x 2220mm high door opening, a 1820mm x 1220mm window opening and an 8° mono-pitch roof; cladding, roofing, roof purlins and ceiling battens are available separately.

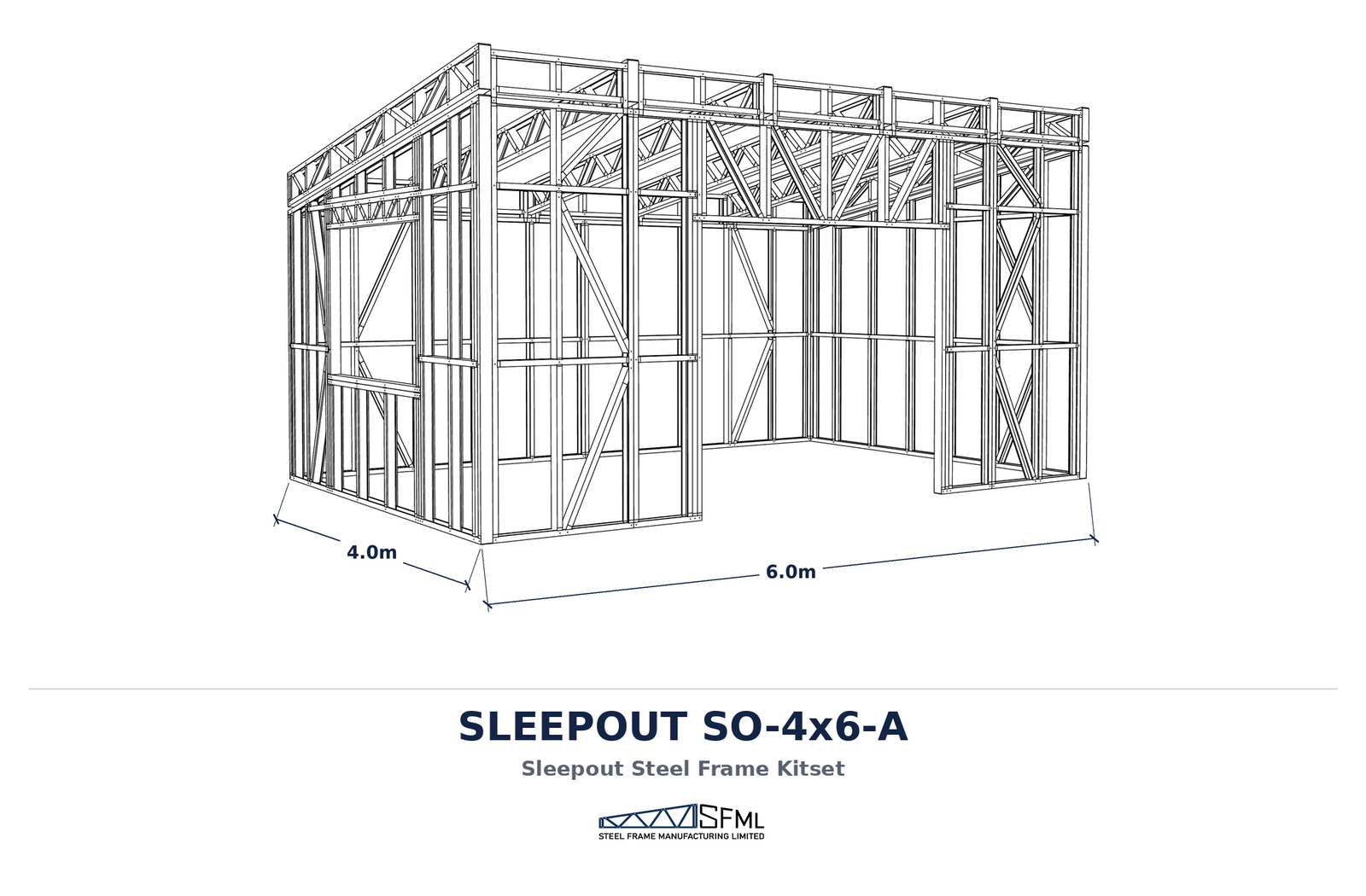

At a glance: The SO-4×6-A sleepout steel frame kitset measures 4m x 6m (24m²) with stud heights from 2420mm to 3000mm under an 8° mono-pitch roof. It has a 2420mm wide x 2220mm high door opening and a 1820mm wide x 1220mm high window opening, with webbed rafters 300mm deep at 1200mm centres. It is designed for wind zones up to Very High and snow loads of <1.5kPa. Regular price from $4,612.65 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.

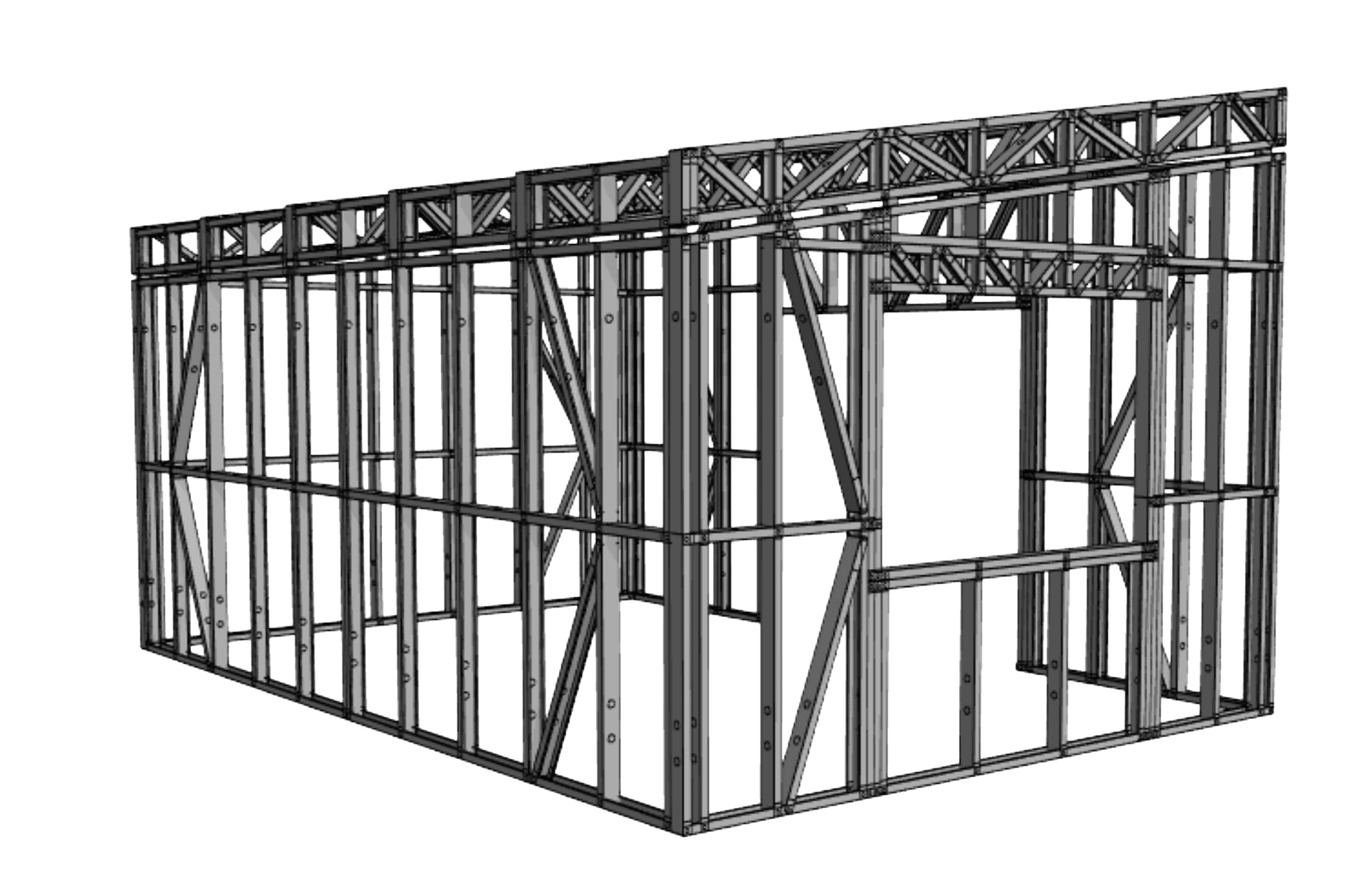

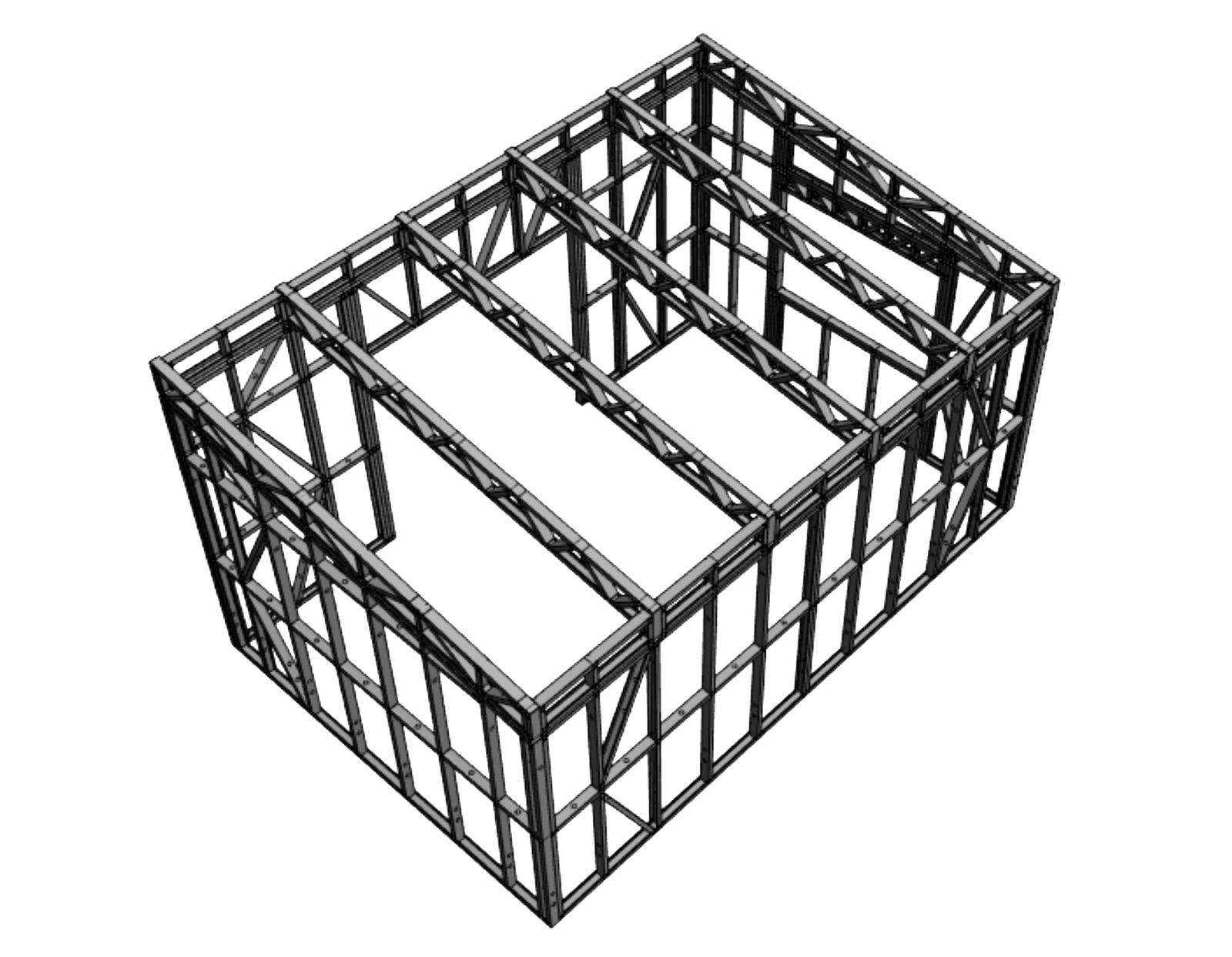

This sleepout steel frame kitset 4m x 6m is a frame-only kitset: every wall frame and rafter is manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Doors, windows, floor frames, cladding, roofing and foundations are not included.

What’s Included

Specifications

Site Suitability & Design Notes

This kitset is designed within the scope of NASH Standard Part Two: May 2019 for a Very High wind zone and snow loads of <1.5kPa (as per the BRANZ map and NASH SP2:2019); you can supply your own alternative calculations if your site requires them. Confirm your site’s wind, snow and ground conditions with our team before ordering. Bracing design is excluded from the base kit; a site-specific design for IBS Rigidrap-XT / GIB sheet bracing to the walls and strap bracing to the roof can be supplied on request (site information required), with the bracing products supplied by others.

At 8° the roof pitch is at the minimum for typical corrugated roofing, so confirm your profile and fixings with your roofing supplier; NZBC E2 allows trough/tray or trapezoid profiles down to 3°. This kitset supplies the steel structure of a sleepout only: whether your project needs building consent, and what insulation, linings and weathertightness a habitable room must meet, depends on your site and council, so check with your local council before you build. All opening sizes on the plans are frame opening sizes, SFML supplies frame-to-frame connections only unless other arrangements are made, and there is no allowance for architectural design or detailing.

Engineering: An engineer’s PS1 is not included. It is available at additional cost on request, or you can use your own engineer.

Compare Sleepout Sizes

Want the same 24m² in a long, narrow shape? See the 3.0m x 8.0m B sleepout kitset. Need less floor area? See the 3.0m x 6.0m A sleepout kitset (18m²).

Delivery & Installation

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to collect and assemble on site. Pre-assembled frames, ready to stand with frame-to-frame fixings provided, are available at an additional freight cost. Freight costs are determined by your delivery location.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the SO-4×6-A sleepout kitset?

The SO-4×6-A measures 4m by 6m, a 24m² footprint, with stud heights from 2420mm up to 3000mm under an 8° mono-pitch roof.

What’s included in the kit?

The sleepout steel frame kitset 4m x 6m includes wall frames, webbed rafters, a site kit of ancillaries (driver bits, gloves, grommets and assembly screws) and construction plans. Roof purlins and ceiling battens are available at additional cost; doors, windows, floor frames, cladding and roofing are not included, and bracing design is an add-on — see the What’s Included table above.

What wind and snow loads is it designed for?

The design is suitable up to Very High wind zone and snow loads of <1.5kPa. Confirm your site conditions with our team before ordering.

How big are the door and window openings?

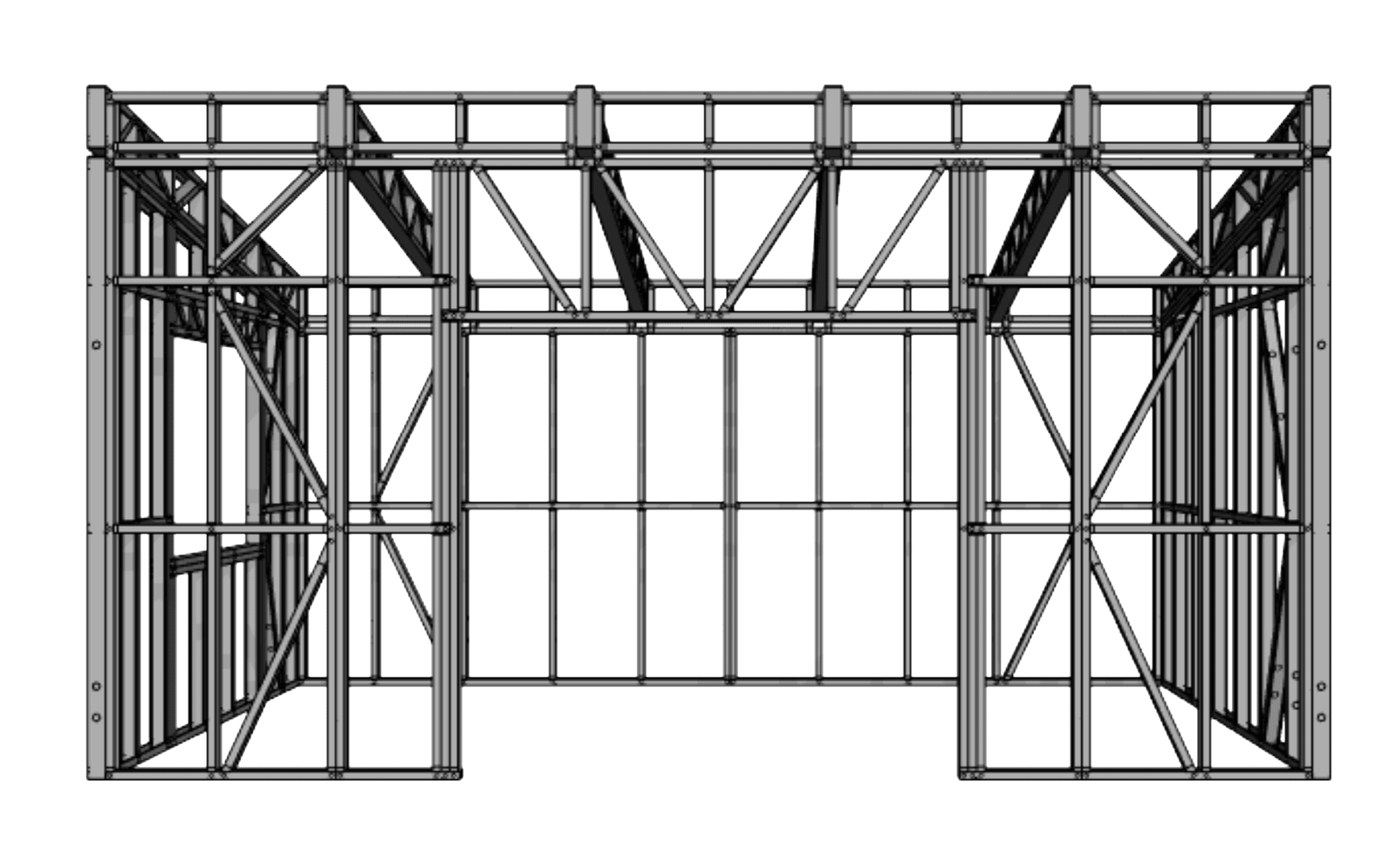

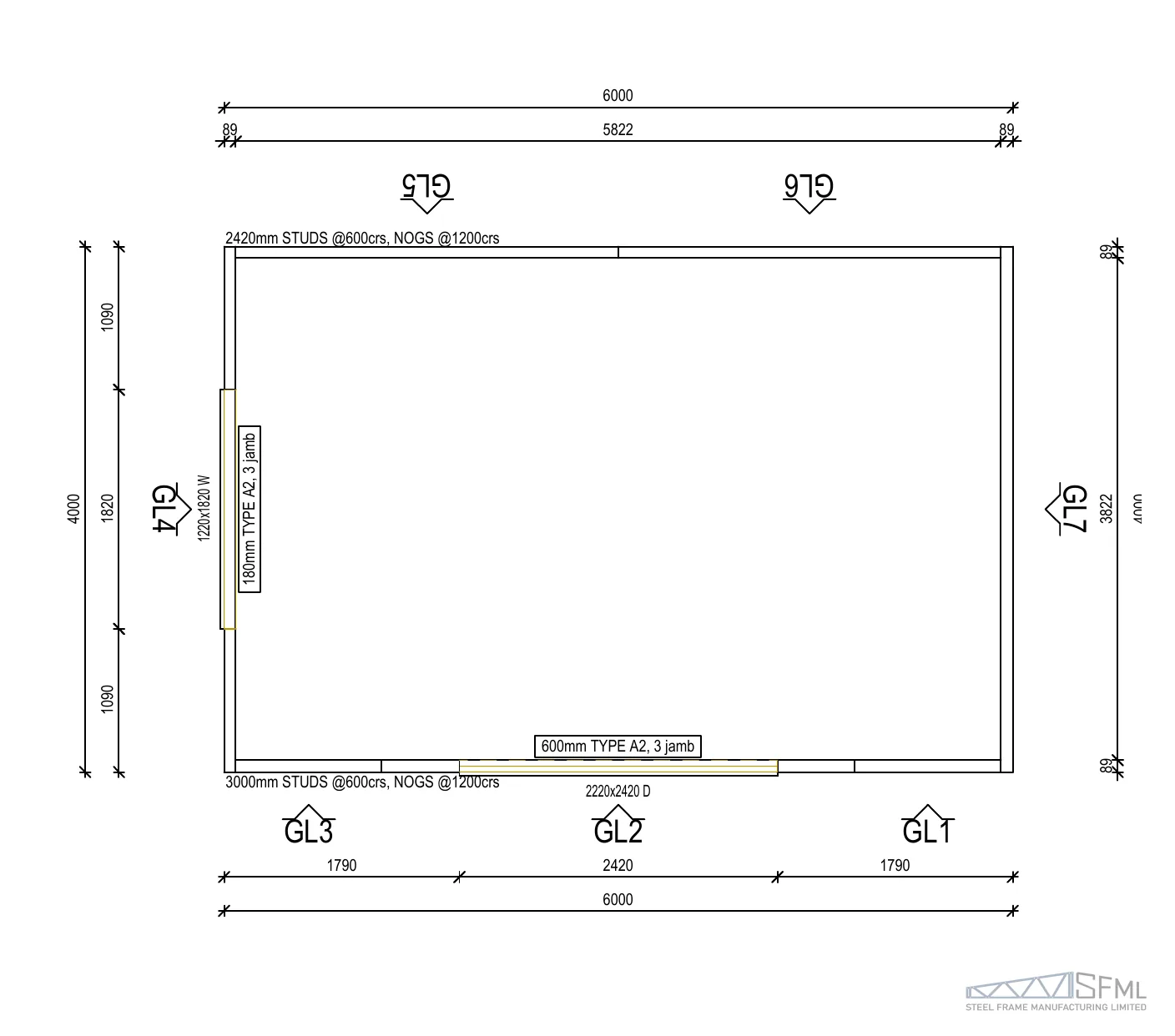

The door opening is 2420mm wide by 2220mm high and the window opening is 1820mm wide by 1220mm high. They are frame opening sizes, and the door and glazing that fill them are supplied by others.

What roofing suits an 8° pitch?

An 8° pitch is at the minimum for typical corrugated roofing. NZBC E2 allows trough/tray or trapezoid profiles down to 3°, so check the profile and fixings with your roofing supplier.

Is bracing design included?

No. Bracing design is excluded from the kit price but a site-specific design can be supplied on request, for IBS Rigidrap-XT / GIB sheet bracing to the walls and strap bracing to the roof. The bracing products themselves are supplied by others.

Are foundations or a floor included?

No. The SO-4×6-A is designed to sit on a slab or timber joist foundation designed by others, or by SFML on request, and neither the foundation nor a floor frame is included in the kit price.

Can you deliver the SO-4×6-A to my site?

Yes. Frames are made in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack, or collected from the factory. Pre-assembled frames are available at an additional freight cost.
