Garage Steel Frame Kitset 6.0m x 12.0m A (72sqm)

This garage steel frame kitset 6.0m x 12.0m gives you 72sqm across two separate 6m x 6m compartments, each with its own 4800mm door — perfect for a double garage, two vehicles, or a vehicle bay plus a workshop. This is one of our predesigned kitset layouts. If you’d like something tailored to your own site or requirements, our team can customise this design to suit you — just get in touch. Whether you need space for two vehicles or a vehicle bay plus a workshop, this garage steel frame kitset 6.0m x 12.0m gives you a generous, code-compliant shell to build from.

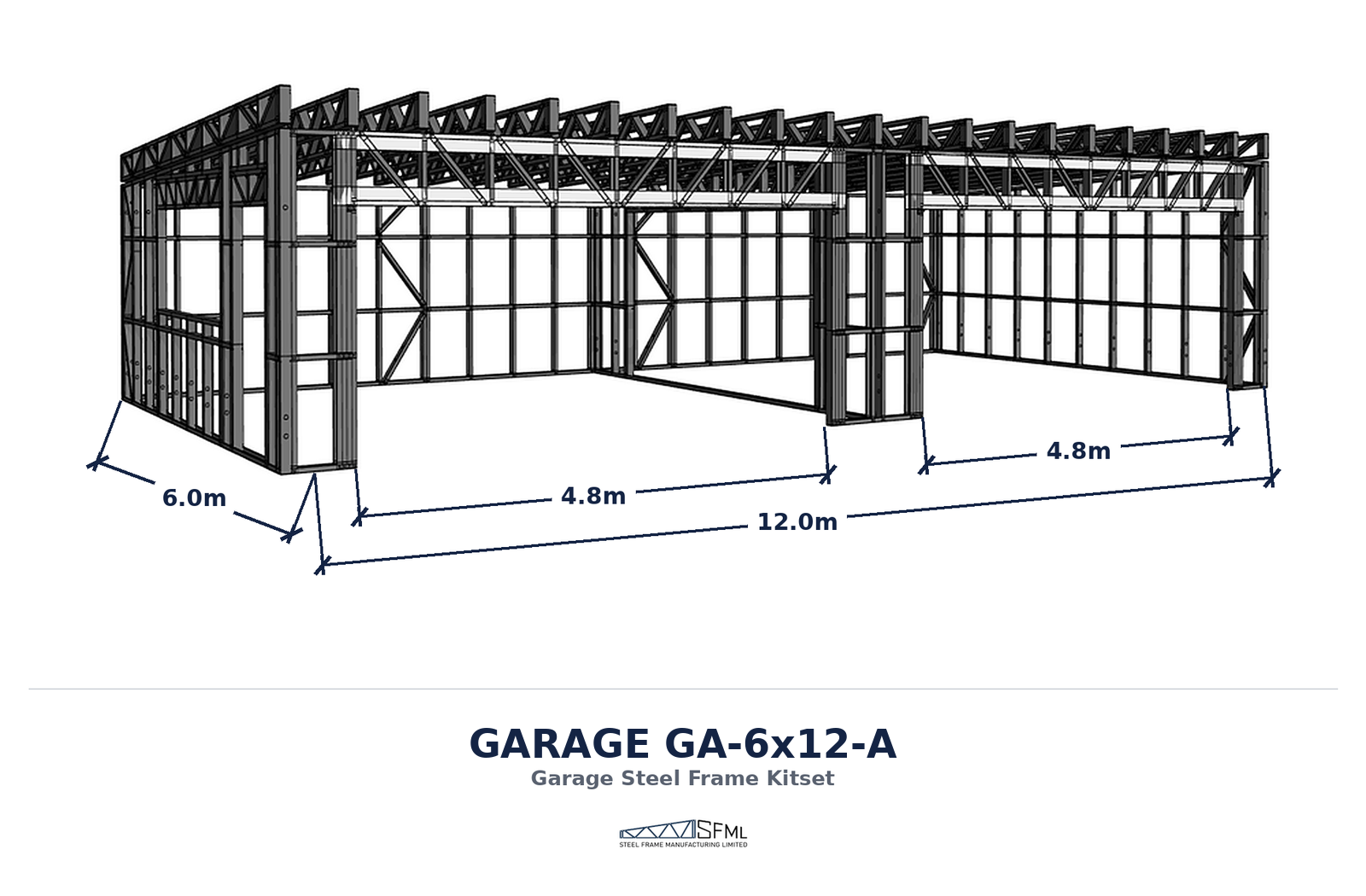

At a glance: The GA-6×12-A garage steel frame kitset measures 6.0m x 12.0m (72m²) across two 6m x 6m compartments. The GA-6×12-A has two 4800mm wide x 2120mm high garage door openings, one per compartment. It is engineered for wind zones up to High and snow loads of <1.5kPa.

What’s Included

Specifications

Site Suitability & Design Notes

This kitset is engineered to High wind zone and <1.5kPa snow load, with bracing design (GIB EzyBrace wall bracing and roof strap bracing, to NASH Standard Part Two: May 2019) included — the bracing products themselves are supplied by others, and alternative bracing systems can be specified via a Specific Engineering Design (SED) at additional cost. Confirm your own site’s wind/snow zone and ground conditions with our team before ordering. The low 3° skillion roof pitch requires a trapezoid corrugated roofing profile rather than a standard corrugated profile — our team can talk you through the right option when you enquire. Our in-house design team can handle building consent documentation and amendments to suit steel framing, and the two-compartment layout — including door and window positions — can be customised to your requirements.

Engineering: An engineer’s PS1 is not included. It is available at additional cost on request, or you can use your own engineer.

Delivery & Installation

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to assemble on site. Pre-assembled frames are available at an additional freight cost, with frame-to-frame fixings provided. Freight costs are determined by your delivery location.

Construction Plans

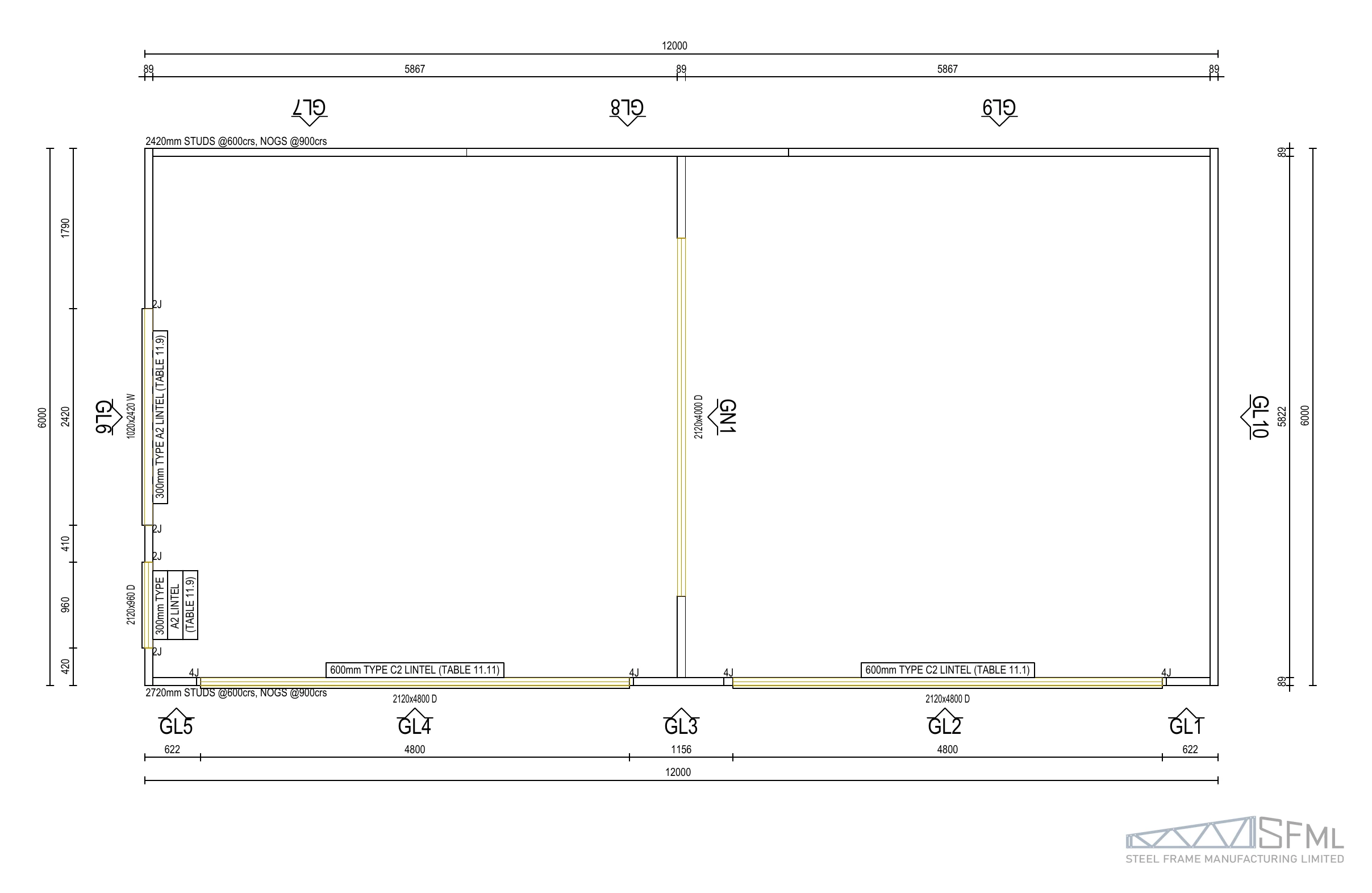

Dimensioned wall and roof frame layout plans for the GA-6×12-A are available to download: GA-6×12-A Construction Plans (PDF).

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the GA-6×12-A garage kitset?

This garage steel frame kitset 6.0m x 12.0m measures 6000mm wide by 12000mm long, giving you 72sqm across two equal 6m x 6m compartments divided by a central partition wall. Stud heights run from 2420mm to 2720mm with a low 3° skillion (mono-pitch) roof.

How many garage doors does the GA-6×12-A have?

The GA-6×12-A has two separate 4800mm wide x 2120mm high garage door openings, one for each compartment, positioned symmetrically along the front wall. Each half of the building can be driven into and used independently.

How is the building laid out?

The design splits into two equal 6m x 6m compartments via a central partition wall, which includes its own 4000mm wide x 2120mm high internal doorway so you can walk between both sides. One gable end wall also has a 2420mm window and a 960mm personnel door for separate pedestrian access.

What’s different about the skillion roof on this design?

Unlike a gable-roofed design, the GA-6×12-A has a single-slope skillion roof at 3°. Because this is below 8°, it needs a trapezoid corrugated roofing profile rather than a standard corrugated profile – our team can talk you through the options when you enquire.

What’s included in the kit?

Each kit comes with wall panels, webbed rafters, and a full site kit of ancillaries – driver bits, gloves, grommets, galv spray, assembly screws, construction plans, roof to wall brackets, bracing hold down brackets, tin snips and thermal packers.

Do I need building consent?

Most garage steel frame kitset 6.0m x 12.0m installations will require building consent from your local council. Our in-house design team can help prepare the documentation needed for your consent application – get in touch and we’ll guide you through the process.

How is the kit delivered?

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to collect and assemble on site. Pre-assembled frames, ready to stand with frame-to-frame fixings provided, are available at an additional freight cost. Freight costs are determined by your delivery location.

What does the GA-6×12-A cost?

The GA-6×12-A garage steel frame kitset 6.0m x 12.0m is supplied as the steel frame kit with selected add-ons only – call us on 0800 178 335 for a free comprehensive quote tailored to your site. Ready to get started? Enquire today for a free quote on this garage steel frame kitset 6.0m x 12.0m and we’ll help you plan the right fit for your site. Every garage steel frame kitset 6.0m x 12.0m ships with full construction plans, so your builder has everything needed to get it up quickly.
