Accommodation Unit Steel Frame Kitset 3m x 10m A (30sqm)

The Accommodation Unit Steel Frame Kitset 3m x 10m A is a 30m² steel framing kit with wall frames, roof frames and site hardware supplied — a versatile footprint suited to worker accommodation, site offices, studios or small standalone living spaces, with three 2020mm door openings built into the layout.

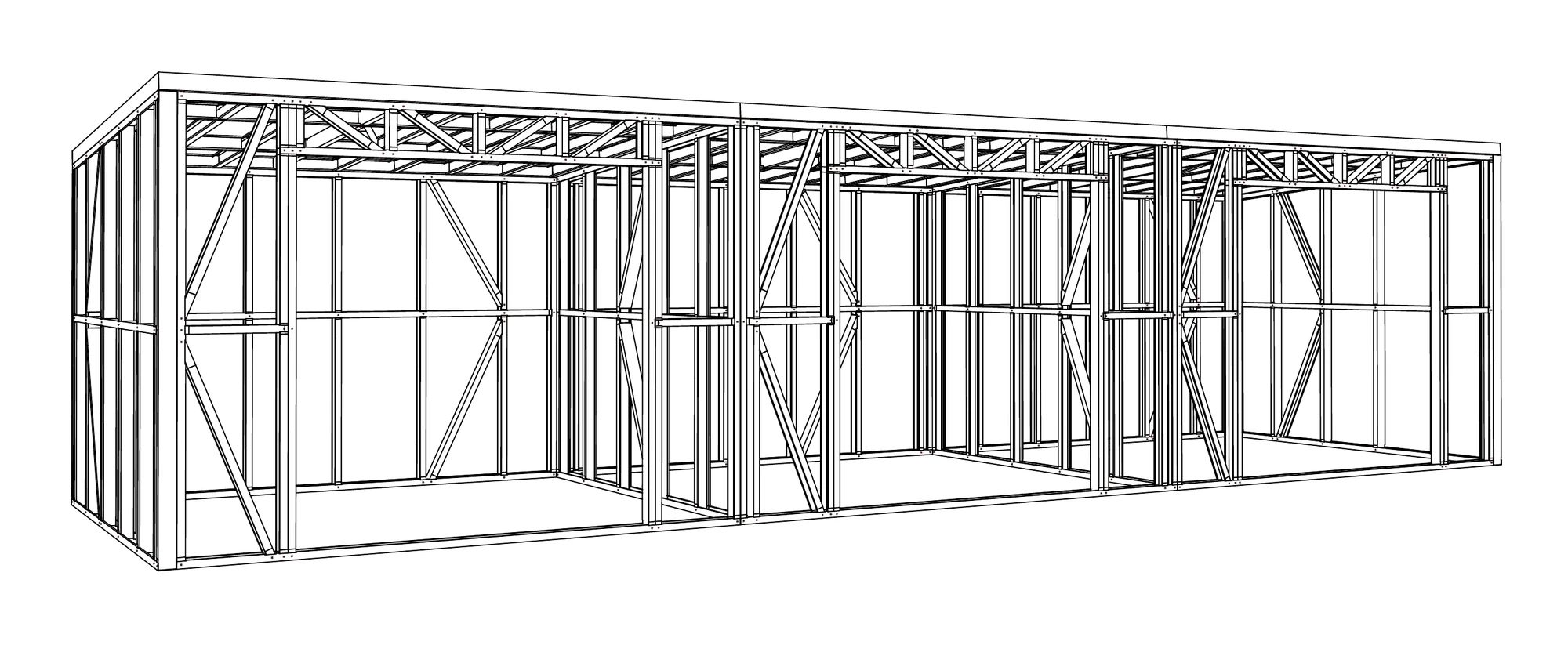

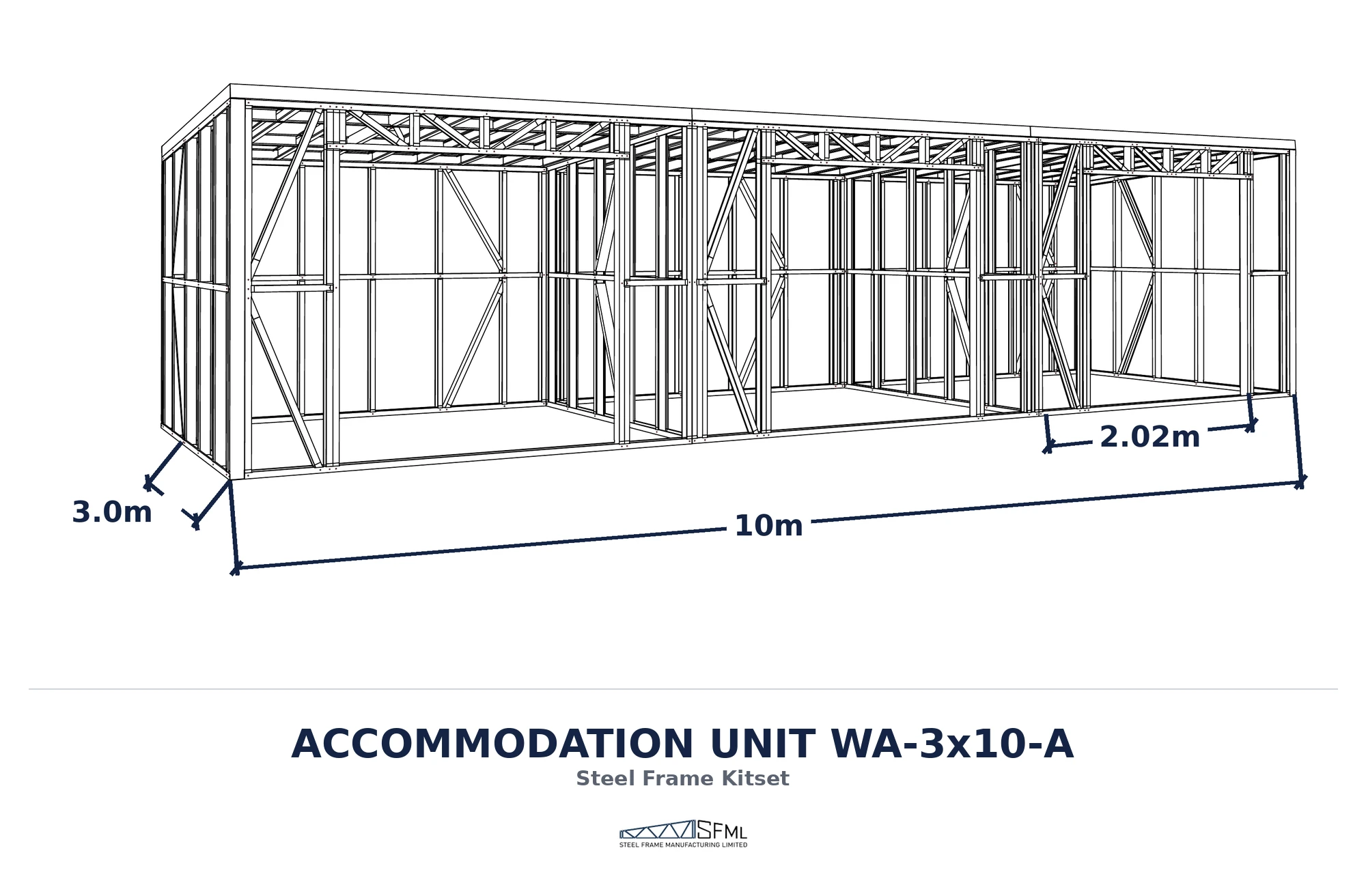

At a glance: The WA-3×10-A accommodation unit steel frame kitset measures 3m x 10m (30m²) in three equal bays. It has three 2020mm wide x 2120mm high door openings, stud heights from 2.202m to 2.420m and a 4.3° roof pitch. It is engineered for Very High wind zones and snow loads of <1kPa.

This is a frame-only kitset: every wall and roof frame ships flat-packed and pre-cut to the dimensions in the plans. Insulation, lining, services and Building Code compliance for habitable use are the builder’s responsibility.

What’s Included

Specifications

Site Suitability & Design Notes

This kitset is engineered for a Very High wind zone and a snow load of <1kPa (as per the BRANZ map and NASH SP2:2019) — you can supply your own alternative snow calculations if your site requires them. Confirm your own site’s wind and snow zone and ground conditions with our team before ordering.

Bracing design is excluded from this price but available for IBS Rigidrap-XT / GIB sheet bracing to walls and strap bracing to the roof — bracing products are supplied by others. Alternative bracing needs design by a structural engineer at additional cost. Foundation design (slab or timber joist) is by others, or by SFML on request, and is not included.

The 4.3° roof pitch is below the 8° minimum for typical corrugated roofing, so choose a roofing profile suited to low pitches — a trapezoid corrugated profile applies down to 3°. Confirm the profile and its fixing requirements with your roofing supplier.

All window and door opening sizes on the plans are frame opening sizes, and SFML supplies frame-to-frame connections only unless other arrangements are made. We can supply cladding and roofing at additional cost — enquire with our team. Through our in-house design team we can also handle your building consent documentation and amend existing plans to suit steel framing, and each frame can be customised to suit your use.

Construction Plans

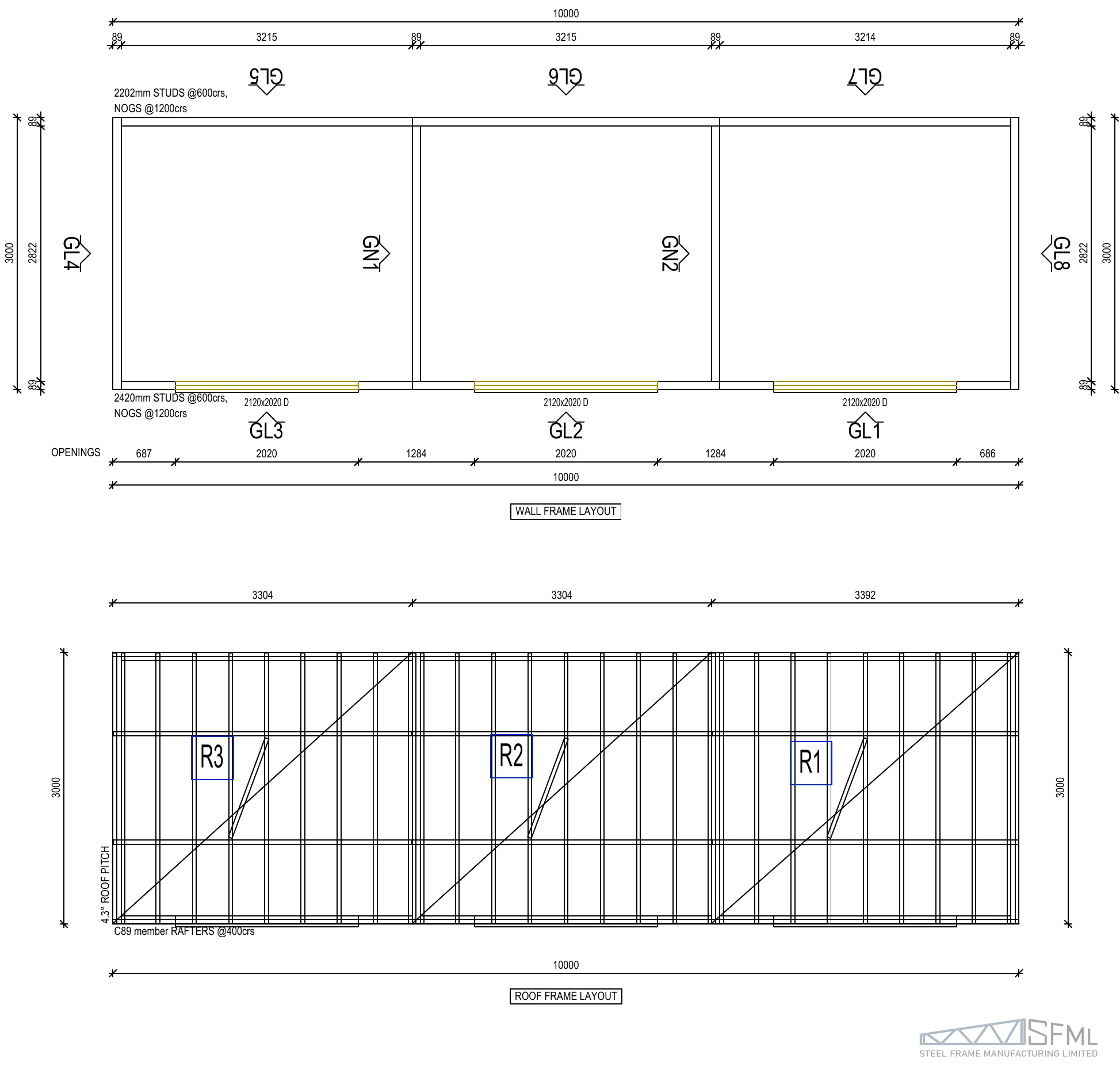

Dimensioned wall and roof frame layout plans for the WA-3×10-A are available to download: WA-3×10-A Construction Plans (PDF).

Delivery & Installation

Frames are manufactured at our factory in Waimate for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to assemble on site. Pre-assembled frames are available at an additional freight cost, with frame-to-frame fixings provided. Freight costs are determined by your delivery location.

Pricing

The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.

Frequently Asked Questions

What size is the WA-3×10-A accommodation unit kitset?

The WA-3×10-A measures 3m wide by 10m long (30m² footprint), laid out as three equal bays of about 3.2m along the long face. Stud heights run from 2202mm to 2420mm under a 4.3° mono-pitch roof.

What’s included in the kit?

The kit includes wall frames, roof frames, construction plans and a full site kit of ancillaries. Cladding, roofing and bracing design are available at additional cost or on request, and foundations are not included — see the What’s Included table above.

What wind and snow loads is it designed for?

The WA-3×10-A accommodation unit frames are designed for a Very High wind zone and a snow load of <1kPa, within NASH Standard Part Two: May 2019. Confirm your site’s zones with our team before ordering.

Is bracing design included?

No. Bracing design is excluded from the kit price but available on request, for IBS Rigidrap-XT / GIB sheet bracing to walls and strap bracing to the roof. The bracing products themselves are supplied by others.

What roofing suits the 4.3° pitch?

At 4.3° the pitch is below the 8° minimum for typical corrugated roofing, so choose a low-pitch profile such as a trapezoid corrugated profile, which applies down to 3°. Check the profile and fixings with your roofing supplier.

Can the door layout be changed?

Yes. The standard layout has three 2020mm x 2120mm door openings, one in each bay, but our in-house design team can customise openings to suit your use. Call 0800 178 335 or request a quote.

How is it delivered?

Frames are manufactured at our Waimate factory and are available for collection, or delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for you to assemble on site. Pre-assembled frames are available at an additional freight cost.
