Garage and Sleepout Combo Steel Frame Kitset 6m x 18m B
6 m × 18 m (108 m²) Two-Bay Garage & Sleepout Steel Framing Kitset
A versatile and sturdy steel framing solution, perfect for dual-purpose use as a garage, sleepout, workshop, or combination of spaces—includes precision-engineered roof rafters, wall frames, and a full set of ancillaries (brackets, screws, driver bits) for fast, efficient assembly.
Delivery Type : Bundle Pack or Pre Assembled Frames

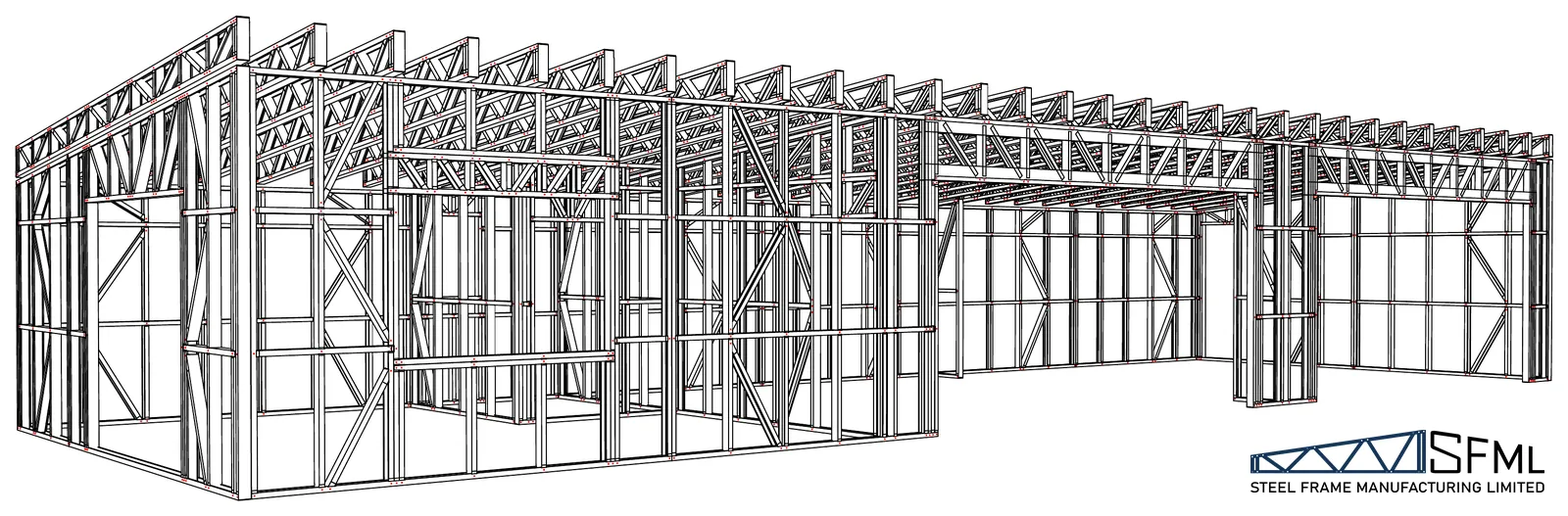

The Garage and Sleepout Combo Steel Frame Kitset 6m x 18m B is a frame-only steel kitset: wall frames, webbed rafters and site-fixing ancillaries are supplied, with cladding, roofing, doors and windows available separately. At 6m x 18m (108m²) it combines a sleepout or office bay with two garage bays, each with a 4800mm wide door opening — a dual-purpose building, not a certified habitable dwelling.

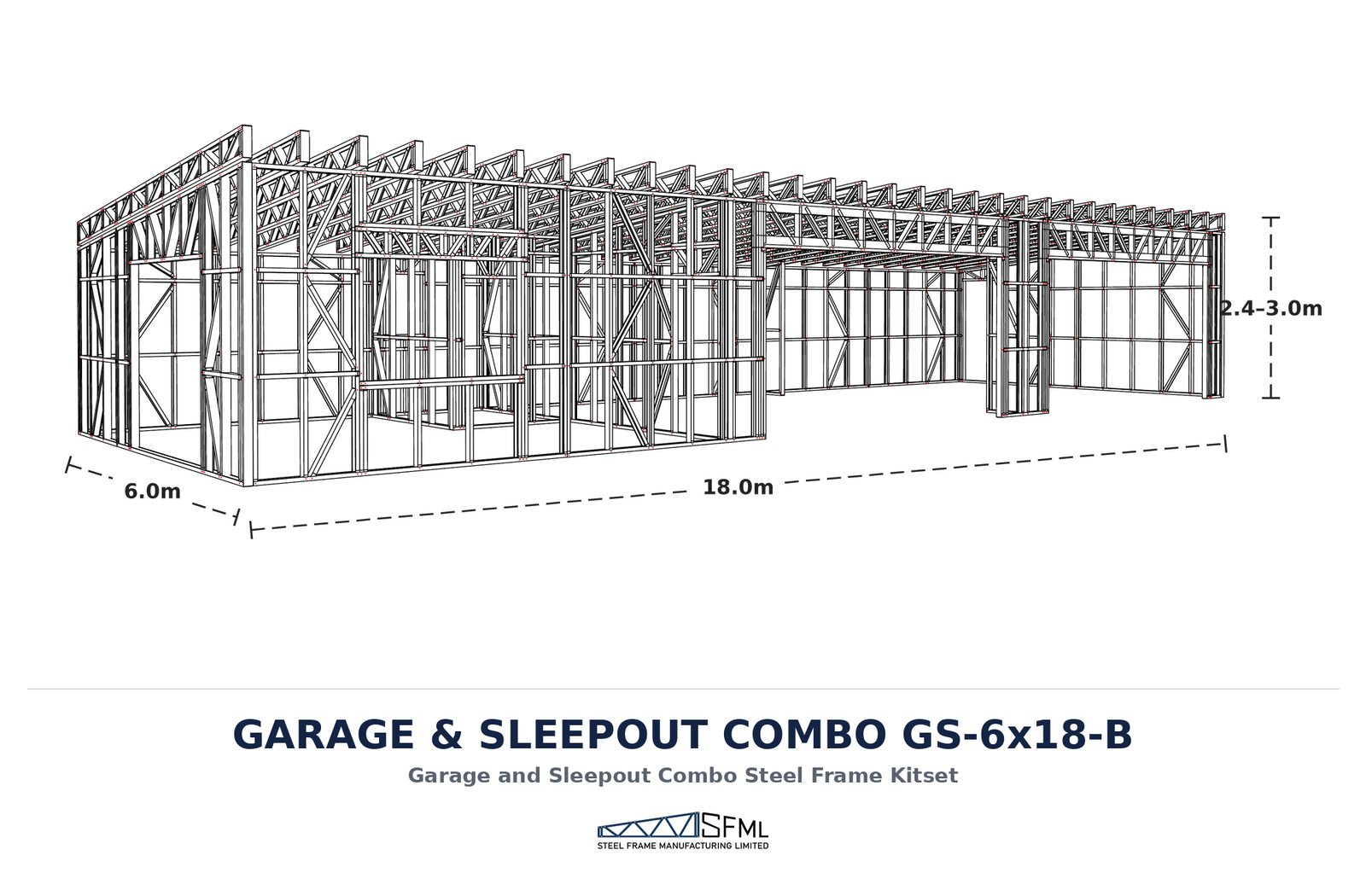

At a glance: The GS-6×18-B combo kitset measures 6m x 18m (108m²) with stud heights from 2420mm to 3000mm under a 5.6° mono-pitch roof. It has two 4800mm wide x 2400mm high garage door openings, a 2420mm wide x 2150mm high door opening (west end), a 965mm wide x 2205mm high door opening (east end), a 1820mm x 1220mm window and a 620mm x 920mm window, plus two 885mm x 2045mm internal door openings. It is designed for wind zones up to High and snow loads of 1.5kPa. Regular price from $17,053.06 incl GST for the steel frame kit. Summer Sale, 5% off until 31 March 2027: the sale price shows at the top of this page.
Design basis: Standard design suits wind zones up to High and snow loads up to 1.5 kPa (NASH Standard Part 2, 2019). Tell us your site’s wind and snow zones when you order and we’ll confirm the design suits your site, or adjust it. An engineer’s PS1 is not included; it is available at additional cost, or you can use your own engineer. Foundations and consent are by others.
Frames are manufactured to the dimensions in the plans and supplied as a flat bundle pack or pre-assembled. Garage doors, doors, windows, cladding, roofing, linings, floor frames and foundations are not included.
What’s Included
| Wall frames (22 panels, including the inner room and partition walls) | Included |
| Webbed rafters (31: 29 at 600mm centres plus 2 end rafters) | Included |
| Site kit & ancillaries (driver bits, gloves, assembly screws, roof-to-wall brackets, thermal packers, bracing hold-down brackets & washers, service hole grommets) | Included |
| Frame-to-frame fixings | Included |
| Construction plans | Included |
| Roof purlins & ceiling battens | Available at additional cost |
| Floor frames | Optional supply at additional cost |
| Roofing & cladding | Available at additional cost — ask our team about options |
| Bracing product (IBS RigidRAP-XT / GIB sheet) | Bracing is designed for; product supply is by others |
| Garage doors, doors & windows | Not included — the openings are framed into the wall frames; doors and windows are supplied by others |
| Foundation design & construction | Not included — by others, or by SFML on request |
| Engineer’s PS1 | Not included — available at additional cost on request, or use your own engineer |
| Installation / assembly labour | Not included — self-assembly, or ask about pre-assembled options |
Specifications
| Product code | GS-6×18-B |
| Footprint | 6m x 18m (108m²) |
| Stud height | 2420mm on the low (north) wall rising to 3000mm on the high (south) wall |
| Roof | Mono-pitch, 5.6° pitch, falling to the north |
| Roof framing | 300mm webbed rafters at 600mm centres |
| Wall framing | C89 × 41.3 × 0.75 steel, studs at 600mm centres, nogs at 1000mm centres |
| Garage door openings | 2 x 4800mm W x 2400mm H (frame opening sizes), 600mm Type C2 lintels with 4 jamb studs |
| Door openings | 2420mm W x 2150mm H (west end); 965mm W x 2205mm H (east end); 2 x 885mm W x 2045mm H (internal) |
| Window openings | 1820mm W x 1220mm H (south); 620mm W x 920mm H (north) |
| Wind zone | Up to High (H) |
| Snow load | 1.5kPa |
| Foundations | Slab — design and construction not included |
| Bracing design | IBS RigidRAP-XT and GIB sheet bracing to walls, strap bracing to roof |
| Design standard | NASH Standard Part 2:2019 (Acceptable Solution under NZBC B1 Structure & B2 Durability) |
Site Suitability & Design Notes
Where full building consent plans have not been supplied, the client is to confirm all design parameters, so confirm your site’s wind, snow and ground conditions with our team before ordering. This kitset is engineered within the scope of NASH Standard Part 2:2019, referenced as an Acceptable Solution under New Zealand Building Code clauses B1 (Structure) and B2 (Durability), for sites up to High wind zone and up to 1.5kPa snow load — confirm your site falls within these limits before ordering.
No allowance is made for architectural design or detailing, and no engineer’s PS1 is included unless noted otherwise on your quote. Window and door opening sizes shown on plans are frame opening sizes. Whether your project needs building consent, and what a habitable sleepout must meet, depends on your site and council, so check with your local council before you build. Foundation design is not included — available by others, or by SFML on request.
Delivery & Installation
Lead time: Typically under 10 working days from order confirmation, if you approve plans and pay invoices promptly. Your quote confirms the timing for your order.
Delivery: Frames are made at our factory in Waimate and collected by Booths Logistics within 1 working day of your final payment. You can also collect from our Waimate factory.
- Flat pack: delivered free to your nearest Booths depot as a flat bundle pack for you to collect and assemble on site.
- Pre-assembled: ready to stand, with frame-to-frame fixings provided. Freight is extra and quoted for your address. South Island delivery is scheduled within 10 to 14 days of your second invoice.
- North Island: flat pack is delivered free to your nearest Booths depot. For assembled frames, please contact us before placing your order.
Pricing
The price shown on this page covers the steel frame kit and selected add-ons only, and is subject to change — confirm current pricing and freight costs with our team before ordering. Call us on 0800 178 335 for a free, comprehensive quote; our team can also help customise this design to suit your requirements.
Construction Plans

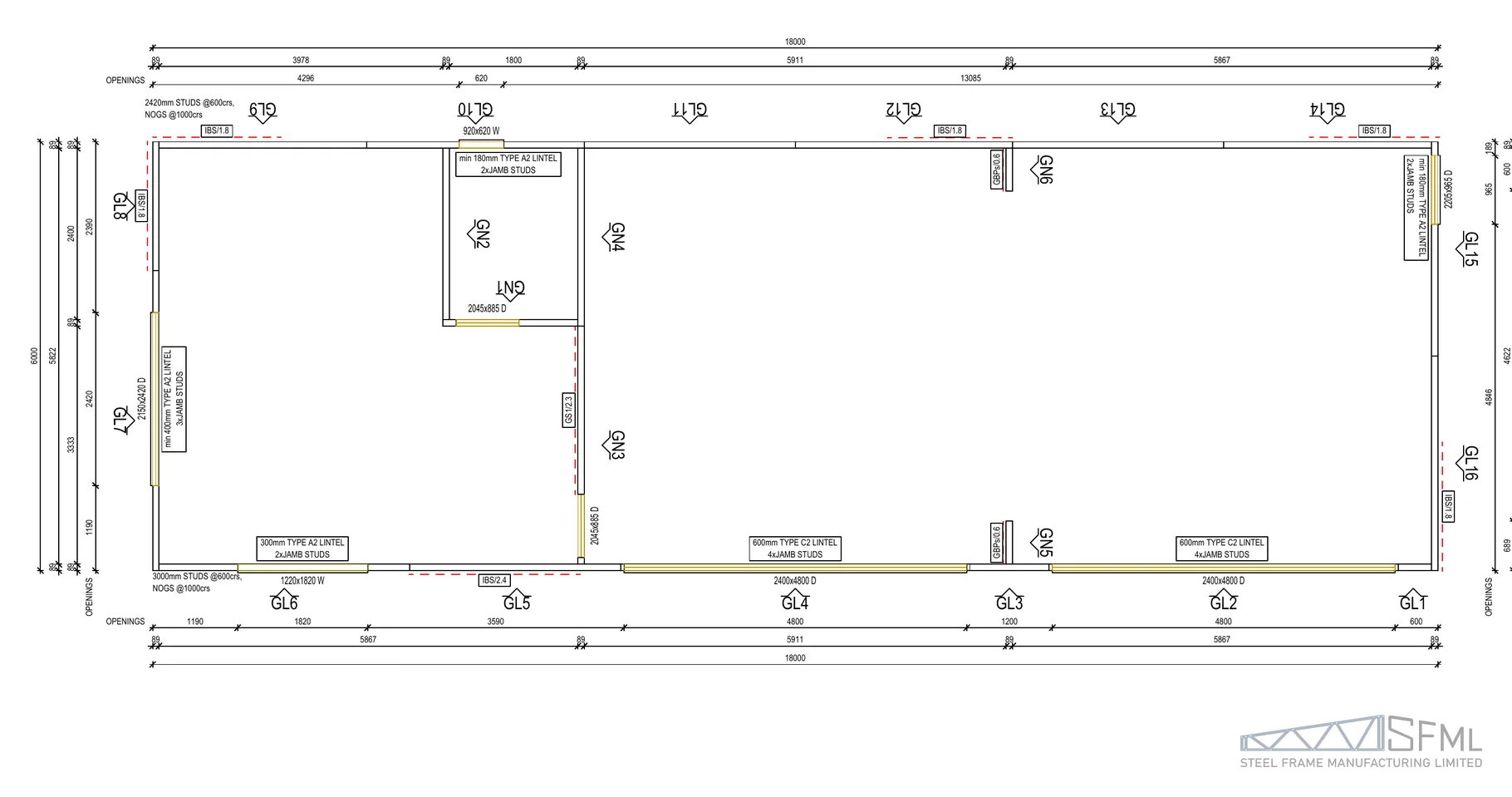

The construction plans for the GS-6×18-B garage and sleepout combo steel frame kitset show the wall and roof frame layouts, openings and dimensions, so you can check the frame against your site before you order. They are for the standard kitset and are not site-specific; building consent documentation is available through our design team on request.
Frequently Asked Questions
What size is the GS-6×18-B combo kitset?
The GS-6×18-B measures 6m wide by 18m long, a 108m² footprint, with stud heights from 2420mm to 3000mm under a 5.6° mono-pitch roof. The layout has a sleepout or office bay at one end and two garage bays.
Does this kitset include roofing and cladding?
No — the Garage and Sleepout Combo Steel Frame Kitset 6m x 18m B is supplied as wall frames, webbed rafters and site-fixing ancillaries only. Roof purlins, ceiling battens, cladding and roofing are available at additional cost; ask our team what options we have available.
How big are the garage door openings?
There are two framed openings, each 4800mm wide by 2400mm high with a 600mm Type C2 lintel and 4 jamb studs. The doors themselves are supplied by others.
What wind and snow zones is this kitset designed for?
The GS-6×18-B is designed within NASH Standard Part 2:2019 for sites up to High wind zone and up to 1.5kPa snow load. Confirm your site falls within these limits before ordering — our team can help you check.
Can I live in the sleepout bay?
The kitset supplies the steel structure only and is not a certified habitable dwelling. Whether a sleepout or office bay can be occupied depends on your site, council and building consent, so confirm the requirements with your local council and our design team.
Is foundation design included?
No — foundation design and construction are not included in the price. We can supply foundation design on request, or it can be arranged with your own engineer or foundation contractor.
How is it delivered, and do I need to assemble it myself?
Frames are manufactured in Waimate and delivered free to your nearest Booths Logistics freight depot as a flat bundle pack for self-assembly, or supplied pre-assembled for an additional freight cost. Call 0800 178 335 for a freight quote to your location.
Original price was: $17,053.06.$16,200.41Current price is: $16,200.41. incl. GST
