Tiny House Steel Frame Kitset – 2.95m x 8.0m – B

Steel Frame Manufacturing Ltd 2.95m x 8.0m tiny house steel framing kit includes roof frame panels, mezzanine frames, wall frames and ancillaries (screws, driver bits etc).

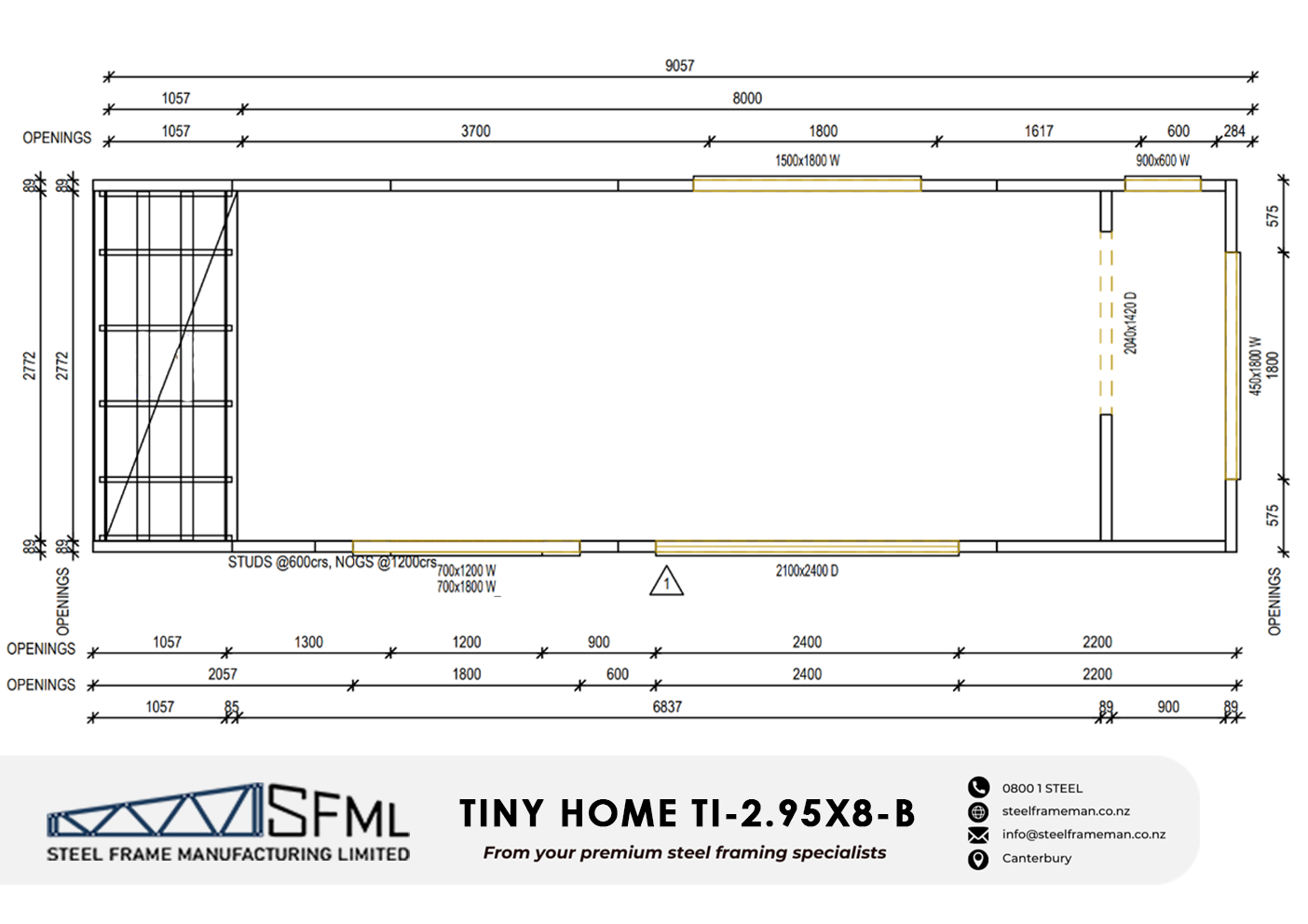

TINY HOUSE DIMENSIONS:
2950mm wide
8000mm length at base, 9050mm at roof level (due to angled wall)
3036mm – 3510mm stud heights
3° roof pitch
600m centre studs, 1200cr nogs
Double mezzanine

DESIGN PARAMETERS:
Design outside of scope of NASH Standard Part 2: May 2019
Bracing design excluded.
Customise the design to suit your requirements!

WHATS INCLUDED:
Roof panels
Wall panels
Mezzanine frames
Site kit & ancillaries:
Driver bits
Gloves
Grommets
Assembly screws
Construction plans
Roof to wall brackets

We don’t just supply kitsets! Our in-house design team at Steel Frame Manufacturing Limited are happy to customise this design to better suit your needs. Please reach out and we can discuss what is going to work best for you!

$5,890.00

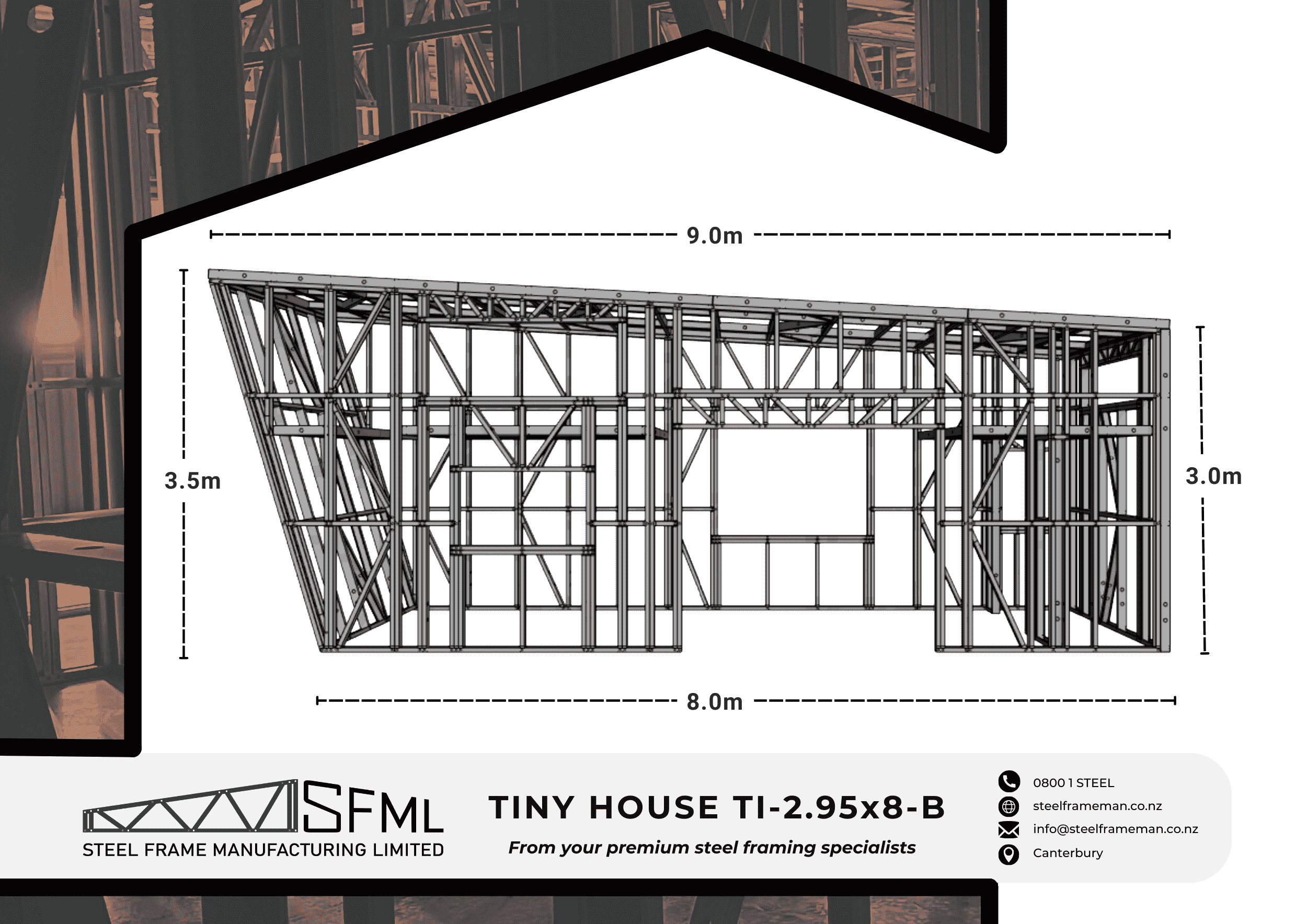

Tiny House Steel Frame Kitset - 2.95m x 8.0m - B

Tiny House Steel Frame Kitset - 2.95m x 8.0m - B - Image 2

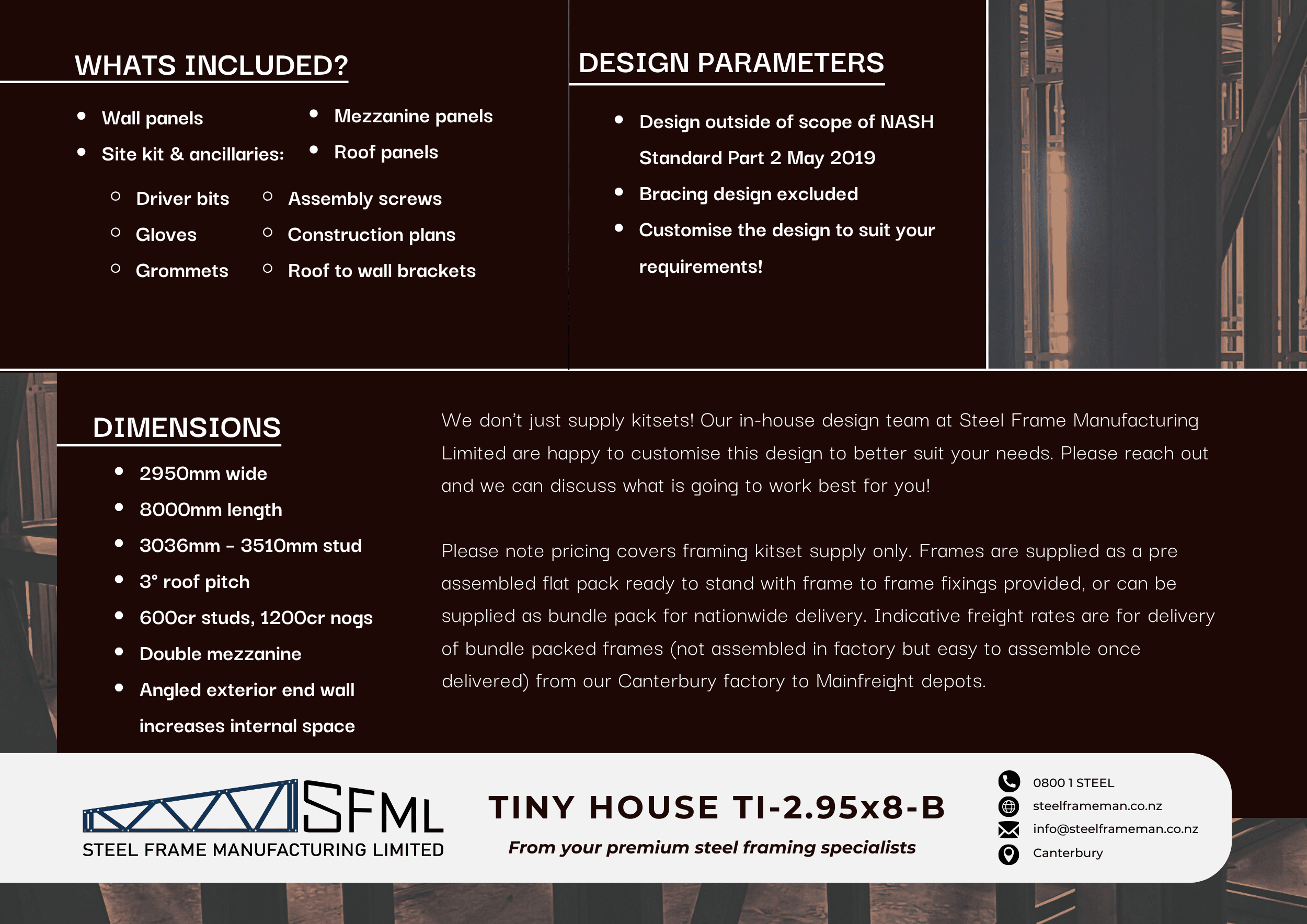

Tiny House Steel Frame Kitset - 2.95m x 8.0m - B - Image 3

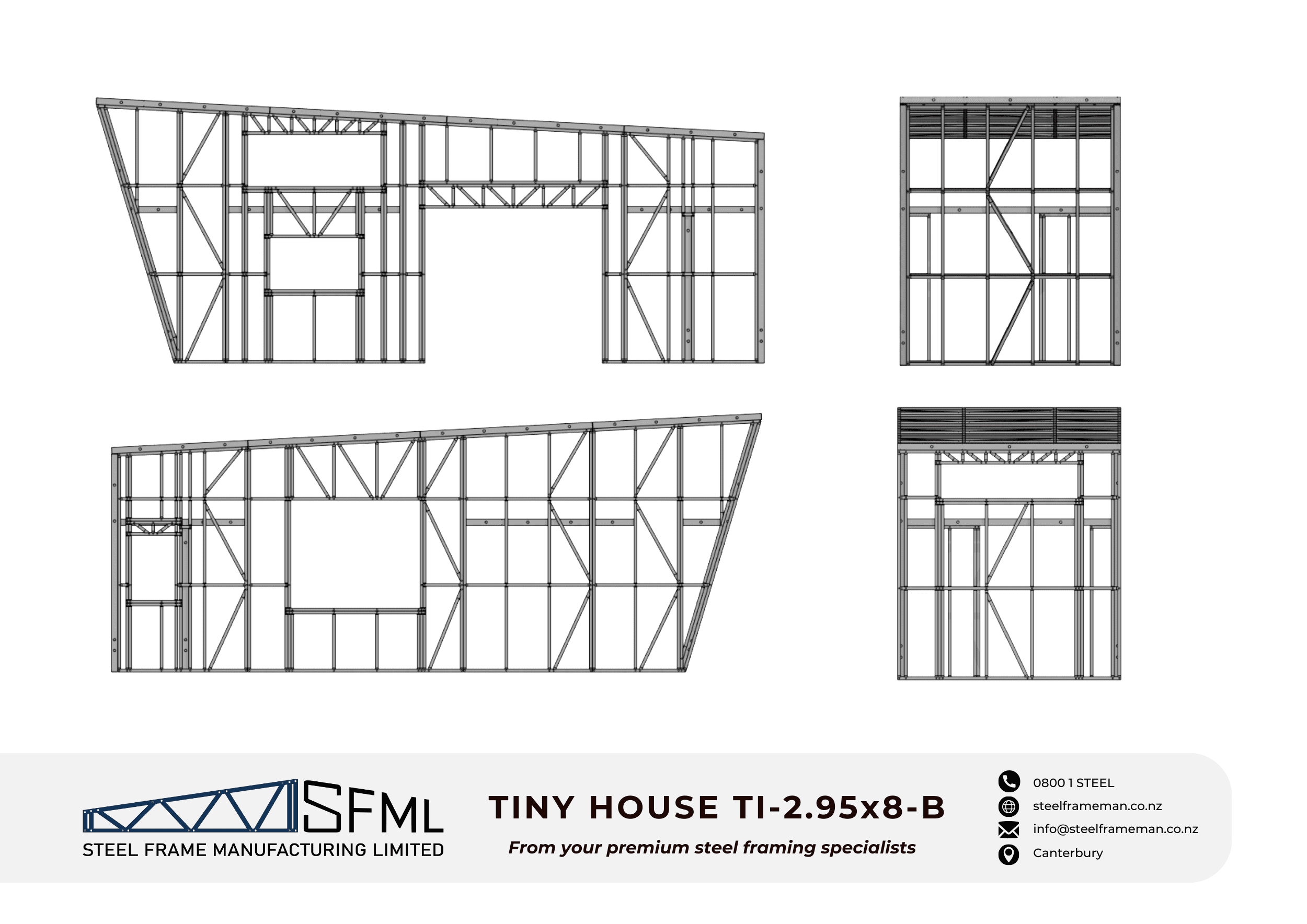

Tiny House Steel Frame Kitset - 2.95m x 8.0m - B - Image 4

Start With a No-Cost Consultation

Manufacturing Facility

29 Studholme Street Waimate 7924

Email Us

info@steelframeman.co.nz

Call Us

0800 1 STEEL (78335)

Can't find exactly what you're looking for?

Don’t hesitate to reach out to us for personalized custom designs tailored to your unique needs and preferences. Let us bring your vision to life with expert craftsmanship and attention to detail.

Features Of Our LGS Panelling System

See our images below to explore the many indisutry leading features you take advantage of when choosing our cold rolled, light gauge steel panelling system.

You can view and interact with the 3D model of this Frame and Truss panel by clicking here.

1. Dimpled & Swaged Connection

Dimples, Swages and notches for a strong, flush and accurate connection.

2. Inkjet Printing

Dual Ink Jet Printers individually mark components with part numbers, panel names and any other information you require for certification and installation.

3. Service Holes

Pre punched Service Holes for plumbing and electrical.

4. Hold Downs

Pre punched Bolt and Web holes for connecting or bolting down panels.

5. Stud to Track Connection

Dimples, Swages and Notches for a strong, flush and accurate connection.

6. True End Bearing Studs

A true end bearing stud connection where the stud not the screws carry the load path.
Video link Here

7. Internal or External Connections

Flexibility to have either internal or external connections as you design them.

8. Continuous Nogging

Dimples, Swages and Notches for a strong, flush and accurate connection.

9. Truss Mitre

Our Truss Mitre tool allows for strong connections in Bracing, Headers and Trusses.
